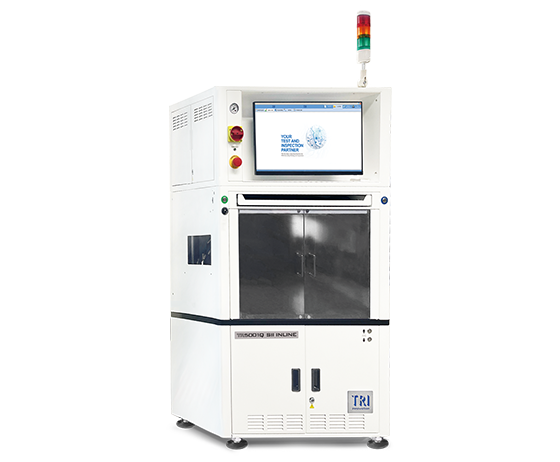

ICT(In-Circuit Tester, 회로판 테스트 장비)
INTRODUCTION
차세대 병렬 인라인 ICT+FCT 솔루션은 높은 처리량을 위해 최대 4개의 독립적 코어를 이용하여 획기적인 성능의 멀티 코어 병렬 테스트를 제공합니다.SMEMA 호환 인라인 핸들러는 작업자의 작업부하를 줄이고 처리량을 증가시키며, 자동 교정과 자가 진단 기능이 탑재된 견고한 빠른 연결 해제 인터페이스는 장시간 테스트 신뢰성을 보장합니다.
• 차세대 멀티 코어 병렬 테스터
Tester Specifications
Analog/hybrid test points
TR5001Q(L) SII INLINE: 4096
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Board Handling
Min. PCB Size
70 x 70 mm
Max. PCB Size
TR5001(D/Q) SII INLINE:500 x 360 mm
PCB Thickness
0.6 - 5 mm
Dimensions
WxDxH
TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
Note: not including signal tower,signal tower height: 390 mm
Weight
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q)L SII INLINE: 720 kg
