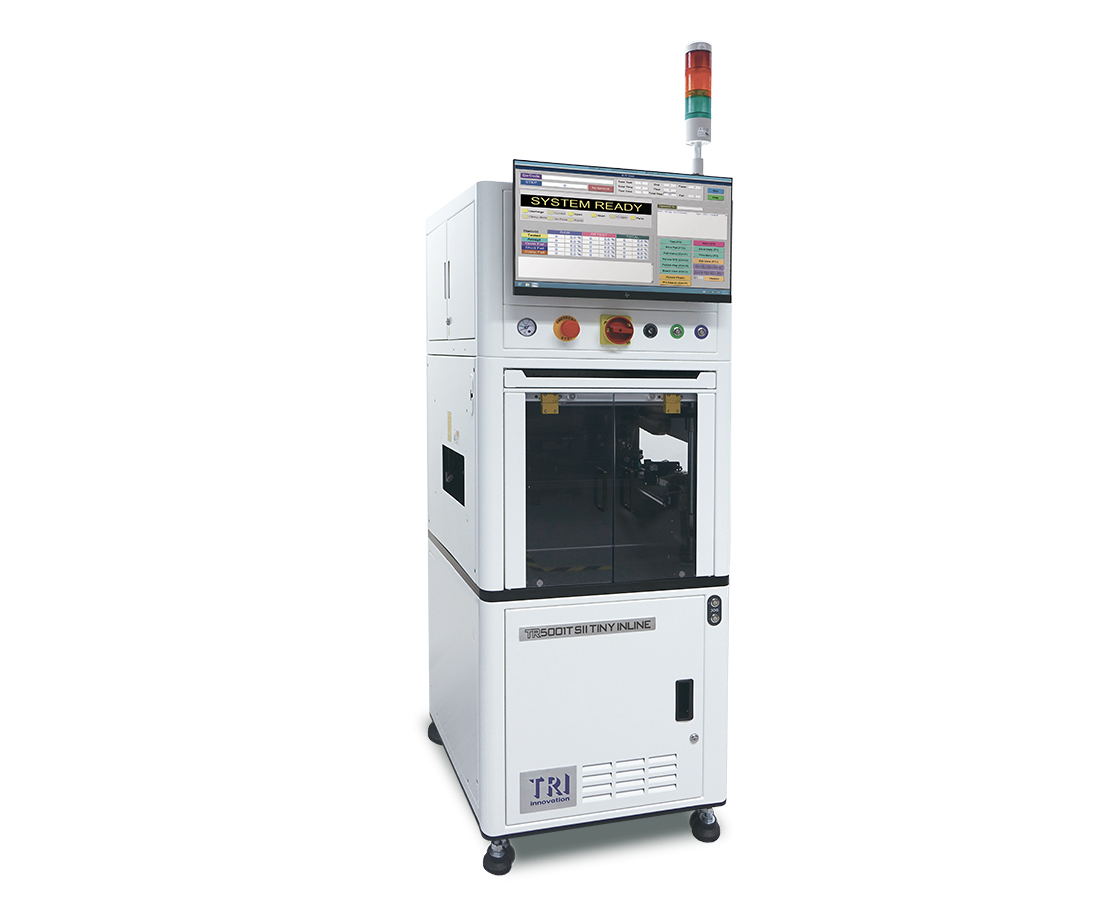

TINY SII INLINE


TINY SII INLINE

INTRODUCTION

TINY SII INLINE은 초소형 기판의 ICT 테스트용으로 설계되어, 최대 640개 테스트 지점을 지원하는 비용 효율적이며 유연한 자동 테스트 플랫폼입니다. 이 완전 전자식 SMEMA 호환 플랫폼은 차지하는 공간이 극히 작으며, TR5001T SII TINY ICT의 기능은 모두 그대로 갖고 있습니다.

• 완전한 기능을 갖춘 인라인 테스트 플랫폼
• TRI TR5001T SII TINY ICT 테스트 장비용으로 설계
• SMEMA 통합으로 극히 적은 공간 차지
• 압축 공기 없이 전체 전기 설계
• 최대 640개 MDA 아날로그 테스트 지점

Tester Specifications

Analog/hybrid test points	640 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Standard Testing Components

Analog Test Hardware

• 6-wire measurement switching matrix
• Measures voltage, current and frequency
• Component R/L/C/D measurement
• 60 V high voltage current source for LED strip testing

Optional Components

Analog Hardware	• TestJet vectorless open circuit detection • Sine Wave Generator
Digital Testing	• Boundary Scan • Data Acquisition and Audio analyzer modules • Enhanced Digital Test Module
Yield Management System	YMS 4.0

Board Handling

Min PCB Size	70 x 70 mm
Max PCB Size	330 x 250 mm
PCB Thickness	0.6 - 5 mm

Dimensions

WxDxH	600 x 936 x 1800 mm Note: not including signal tower, height: 295 mm
Weight	340 kg
