ICT(In-Circuit Tester, 회로판 테스트 장비)
|
INTRODUCTION

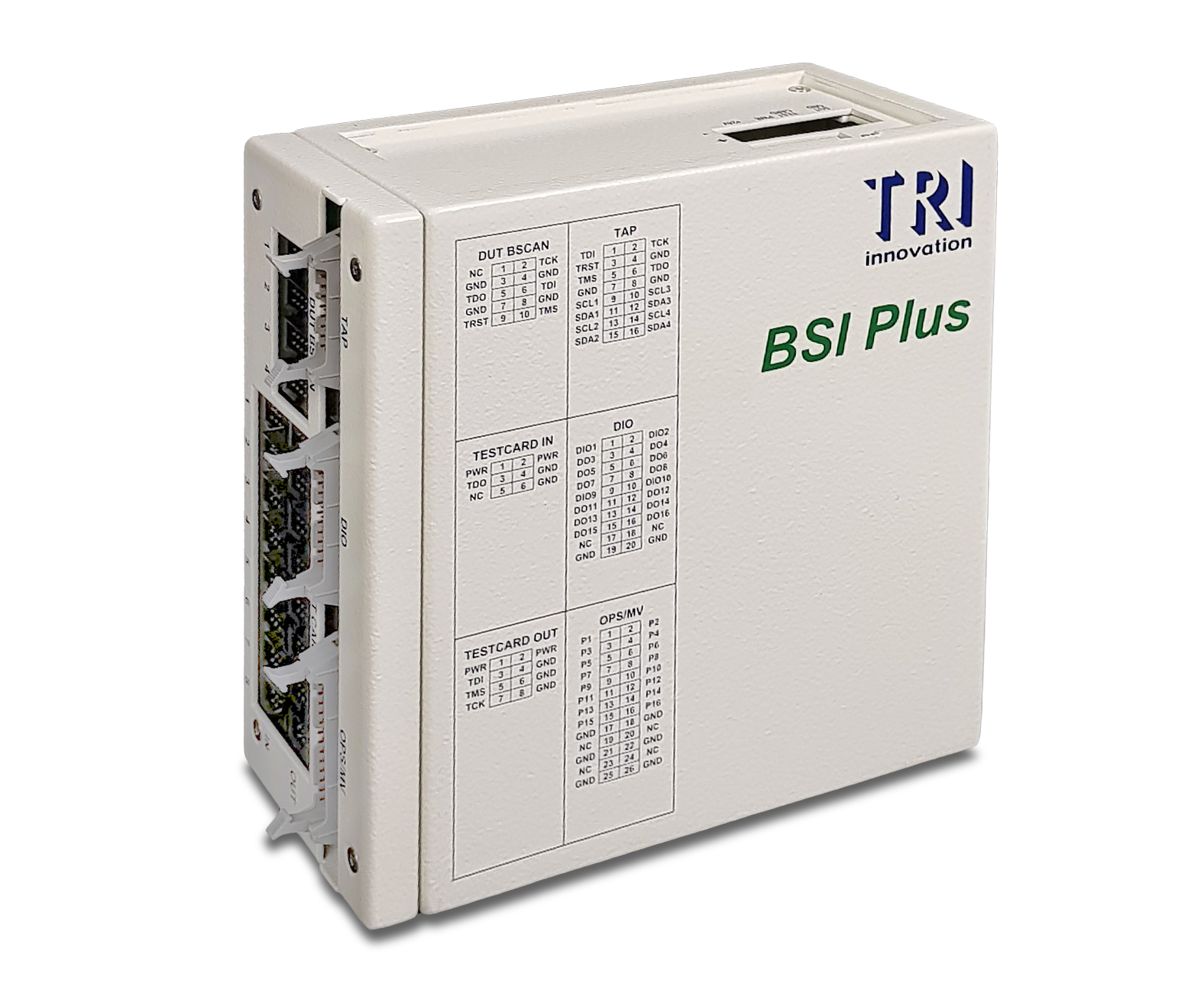

BSI Plus (Boundary Scan Interconnect)는 DDR4, USB, PCIe, M.2 SATA와 같은 서로 다른 커넥터를 위한 TRI의 BSI(Boundary Scan Interconnect)다. BSI Plus Tester는 프로그래밍이 용이하며 원하는 픽스처와 통합된다. BSI Plus는 보드의 정확성을 보장하기 위해 DUT의 전원을 켜기 전에 OPS 테스트와 배터리 테스트를 수행할 수 있다.
• 다양한 커넥터에 대한 BSI (Boundary Scan Interconnect) 체인 테스트
• 간편한 통합 BSI 하드웨어 및 픽스처 PLC 제어 명령 편집
• 자동 테스트 프로그램 생성기를 사용한 스마트 프로그래밍
General
Operating System |
Microsoft® Windows 10 |
Power Requirement |
240 V, Single Phase, 50/60 Hz, 240 W |
Hardware
DUT BSCAN |
-
4 channel JTAG
-
Output voltage adjustable from 0 to 5 V
|
TEST CARD |
-
8 channel fixed 3.3 V JTAG
-
Out taps connect to test card’s TDI
-
In taps connect to test card’s TDO
|
Digital I/O Control Pins |
-
16 pins (DIO x 4 pins, DO x 12 pins)
-
DIO is 0~5 V in-out pins / DO is 0 ~ 5V output pins
|
OPS/MV |
-
16 channel voltage and open-short measurement
-
0~50 V
-
0~100 ohm
|
Vreg Test |
32 Channels (Max. 128 Channels) |
I2C Function |
4 channels |
Supported Test Card — Boundary Scan / Open/short test
Dimensions
WxDxH |
180 x 180 x 80 mm
|
Weight |
5 kg |
