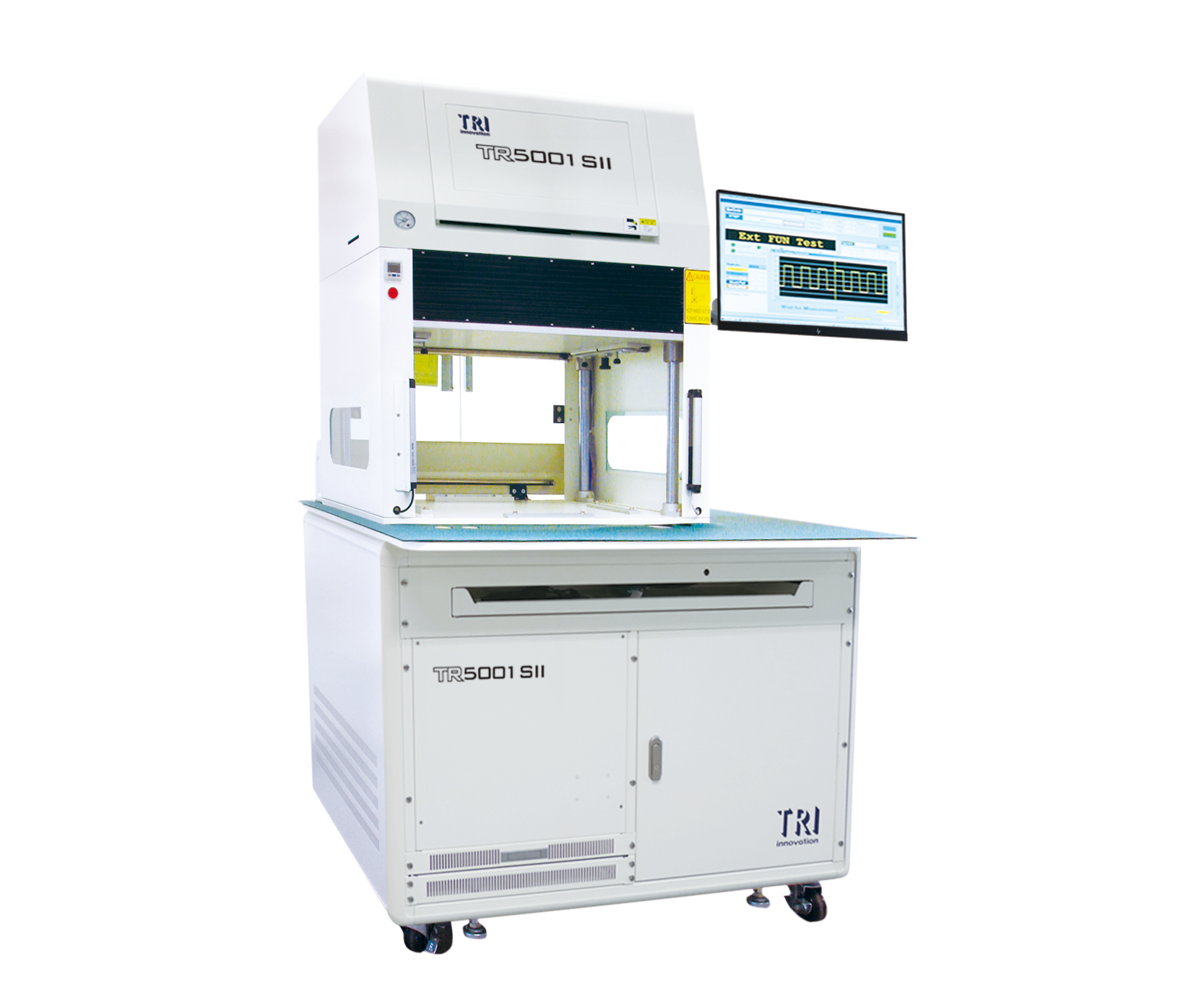

ICT(In-Circuit Tester, 회로판 테스트 장비)
|
INTRODUCTION
차세대ICT+FCT 솔루션은 높은 처리량을 위해 최대 4개의 독립적 코어를 이용하여 획기적인 성능의 멀티 코어 병렬 테스트를 제공합니다. 향상된 측정 정확도를 제공하는 TR5001Q/D SII의 새로운 자동 교정 및 자가 진단 시스템은 장기간 테스트 신뢰성을 보장합니다.
• 차세대 멀티 코어 병렬 테스터
• 모든 핀 최대 8포트 최첨단 테스트 컨트롤러 시리즈
• 제한된 접근 솔루션으로 PXI 모듈을 이용한 기능적인 테스트 확장
• 자가 진단과 자동 교정 기능 탑재
• 은 정확성의 측정/검사
• 플로우 기반의 쉬운 프로그램 개발과 직접적인 UI
Tester Specifications
Analog/hybrid test points |
TR5001Q SII: 4096
TR5001D SII: 3328
TR5001 SII: 3456 |
Operating System |
Microsoft® Windows compatible PC with USB, Windows 7-10 |
Fixture Type |
Offline press type fixture |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
Optional Components
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
Serial Test Controller (STC) Programming
-
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
|
Yield Management System |
YMS 4.0 |
Dimensions
WxDxH |
1050 x 850 x 1735 mm |
Weight |
300 kg |
