INTRODUCTION

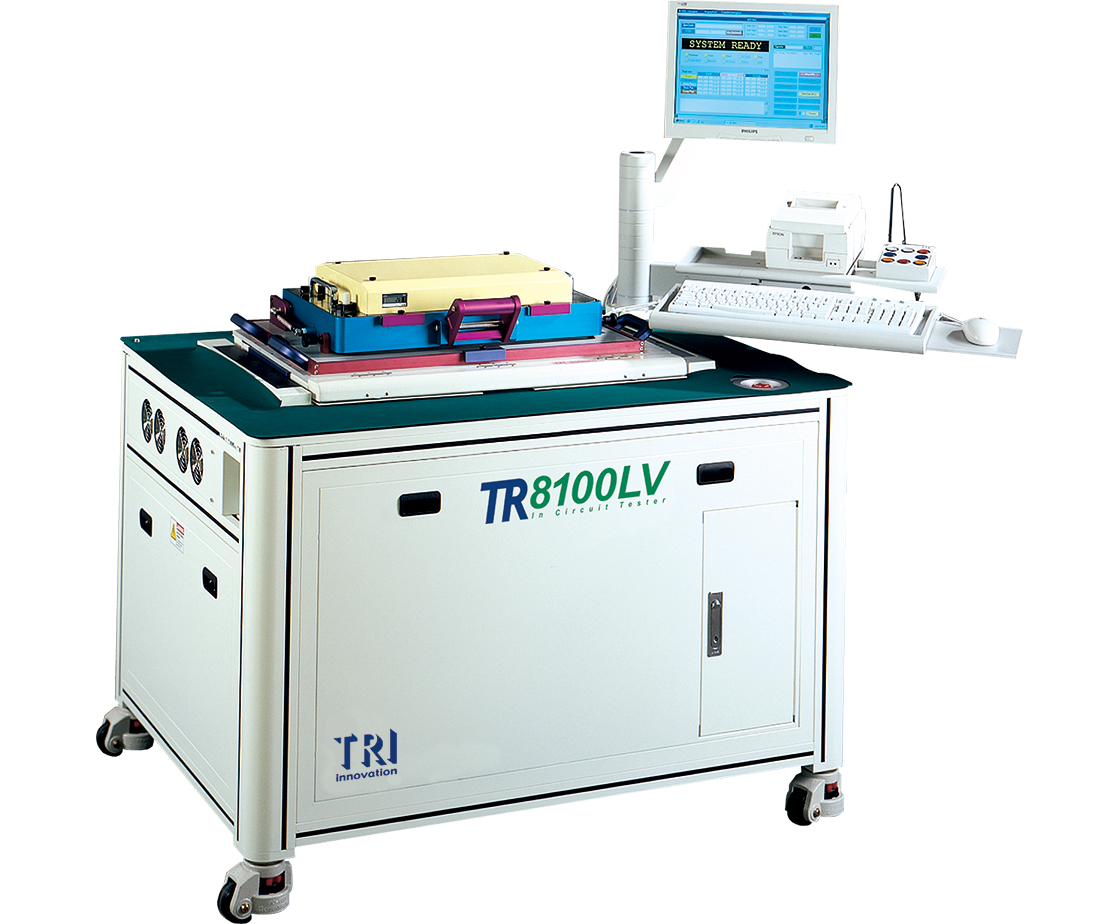

Projetado para testar PCBAs grandes e complexas, o TR8100LV é o sistema de teste de placa de segmentação TRI topo da linha para o mercado de testes de baixa voltagem. O sistema de vácuo do TR8100LV garante pleno contato do pino e com arquitetura de até 3584 pinos sem MUX digital, o sistema permite teste mais rápido e simples de grandes dispositivos de contagem de pino e rápido desenvolvimento do programa. Tecnologia *TRI ToggleScan® & VregTest® incluída combina Diugitalização de Limite com soluções para placas de acesso de teste limitadas. *"ToggleScan®" & "VregTest®" são marcas registradas da Test Research, Inc.
-
• Projeto driver/receptor digital 1:1 por pino de arquitetura
• Solução de teste de cobertura de alta falha com fixação a vácuo
• Testes do dispositivo de baixa tensão e velocidade de teste rápido
• Interface amigável com o desenvolvimento fácil e rápido do programa
Tester Specifications
|
Analog/hybrid test points |
TR8100LV: 3584
TR8100LLV: 5632 |
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
|
Fixture Type |
Offline press or vacuum type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
TR8100LV: 1150 x 850 x 800 mm
TR8100LLV: 1550 x 850 x 800 mm |
|
Weight |
TR8100LV: 390 kg
TR8100LLV: 450 kg |
