Revestimentos Protetores Inspeção (CI AOI)

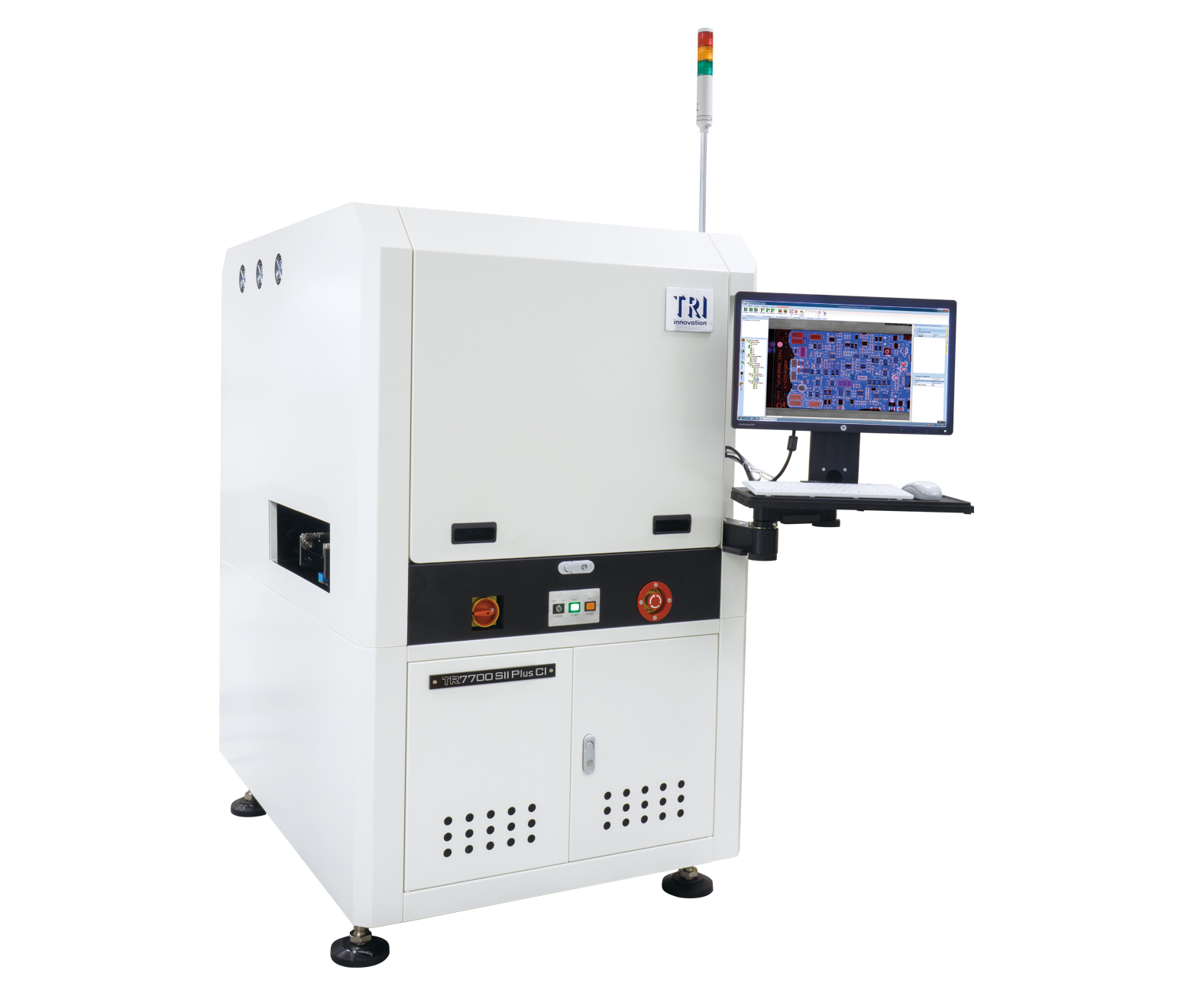

TR7700 SII Plus CI

INTRODUCTION

TR7700 SII Plus CI traz uma fácil inspeção de Conformal Coating que combina um design de alta precisão óptica com iluminação multi-fase especializada para inspecionar UV - Active Conformal Coatings. Um software inteligente e imagens multi-fase garantem que a TR7700 SII Pluc CI identifique os mais típicos defeitos com o mínimo de falhas falsas.

• Precisão na inspeção UV-Active Coating
• Programação de Cobertura Intuitiva e Treinamento Fácil
• Precisão na medição Coating Area
• Redução de ruído com iluminação multi-fase

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase R/W + UV

Imaging Performance

Imaging Speed

@10 µm: 60 cm²/sec
@15 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
X-Y Axis Resolution	1 µm

Board Handling

Max PCB Size	500 x 460 mm
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm [100 mm optional]
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Conformal Coating

Missing Coating
Insufficient Coating
Crack
Bubble/Void
Splash/Smear/Contamination
Spill
Measurement

Dimensions

WxDxH	1000 x 1400 x 1650 mm Note: not including signal tower, signal tower height 520 mm
Weight	600 kg
