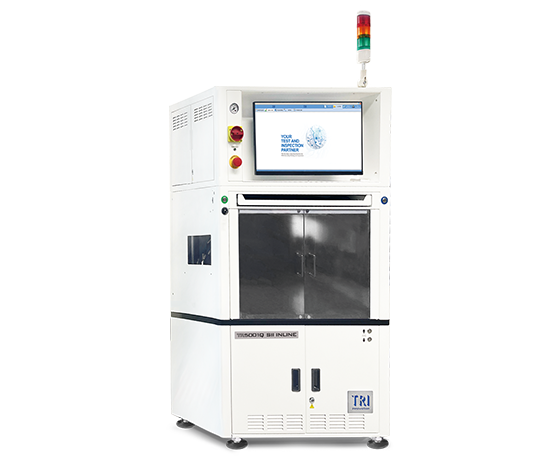

TR5001 SII INLINE


TR5001 SII INLINE

INTRODUCTION

A próxima geração de solução ICT+FCT inline paralela oferece performance em multi-núcleos paralelos, testando com até 4 núcleos independentes para alto rendimento. Sistema inline compatível com SMEMA reduz a carga de trabalho do operador e aumenta o rendimento, interface durável de rápida desconexão, auto-calibração embutida e auto-diagnóstico garantem a confiabilidade de teste a longo prazo.

• Nova geração do multi-núcleo flexível de teste paralelo
• Controle de teste serial em Estado de Arte, com até 8 portas em qualquer pino
• Solução de acesso e expansão de teste funcional limitados usando módulos PXI
• Função de auto-calibração e auto-diagnóstico embutidas
• Teste e Medição de alta precisão
• Solução de alta cobertura de teste de falha compatível com SMEMA
• Interface de usuário intuitiva, com prático desenvolvimento de programa baseado em fluxo (flow-based)
• Auto-calibration by DMM

Tester Specifications

Analog/hybrid test points	1 Core- 3,456. Optional: 4,480 2 Cores- 3,328. Optional: 4,096 4 Cores- 4,096
Operating System	Microsoft® Windows 11
Fixture Type	Inline with long lifespan Quick Disconnection Interface

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
TestJet vectorless open circuit detection
Arbitrary Waveform Generator

Industry 4.0

Communication Standard	SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System	YMS 4.0 (Optional)

Optional Components

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
Programable Power (2 CH): 0.2 – 3 V@2 A max. or 3 – 24 V@3 A max.
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM

Board Handling

Min. PCB Size	50 x 50 mm
Max. PCB Size	510 x 510 mm

System Requirement

Power Requirement	200 – 240 V, Single Phase, 50/60 Hz, 3 kVA.
Power Feature	Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection.
Air Requirement	Dry Air 4 – 8 kg/cm²

Dimensions

WxDxH	900 x 1200 x 1680 mm Note: not including signal tower,signal tower height: 392 mm
Weight	687 kg
