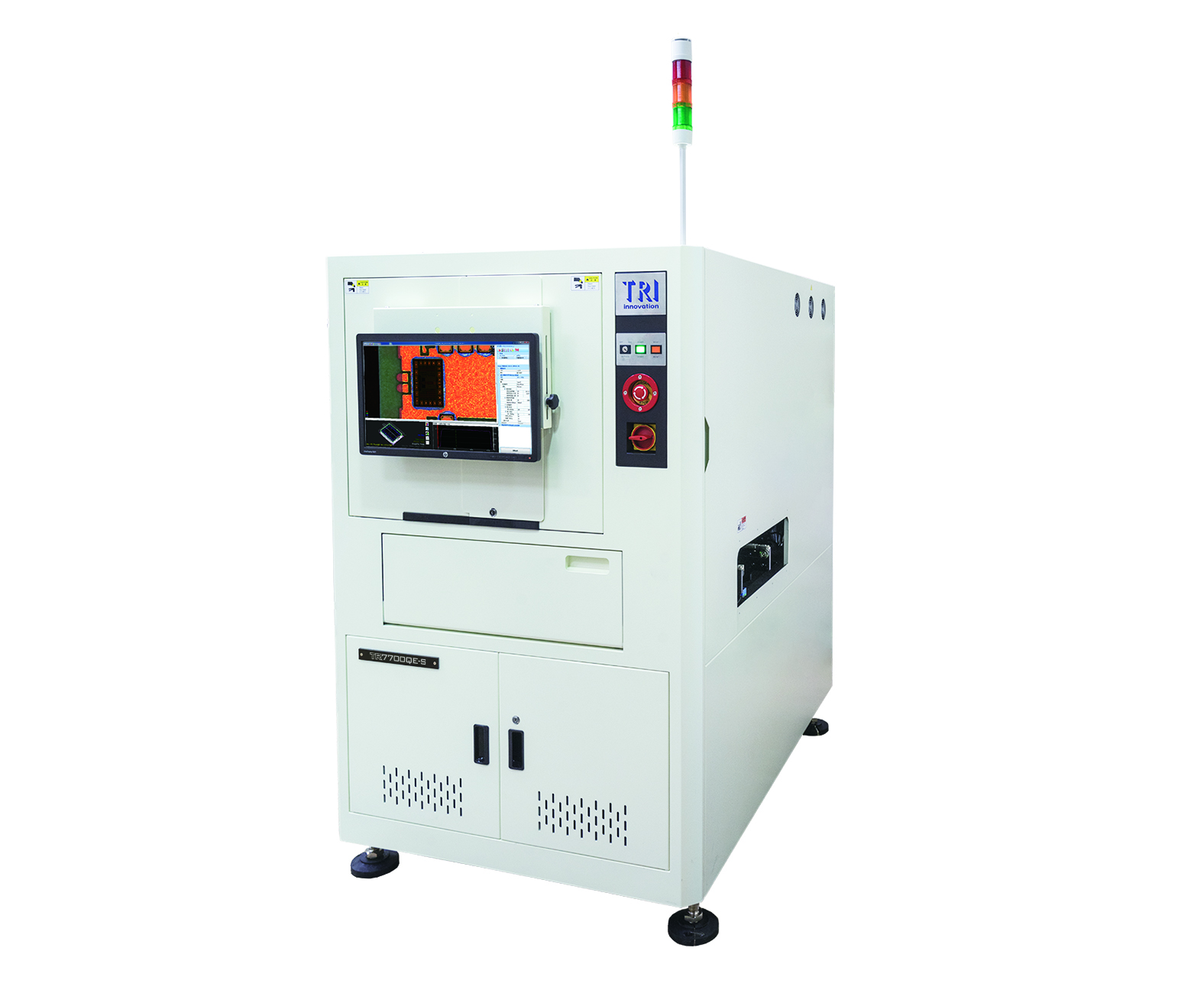

TR7700QE-S

INTRODUCTION

A plataforma TR7700QE-S é altamente precisa, com tecnologia de imagem de 12 MP de alta resolução de 5,5 µm para a indústria de semicondutores. A plataforma AOI 3D Stop-and-Go pode inspecionar Wire Bonding, Die Bonding, SMD e juntas de solda. TR7700QE-S também incorpora algoritmos de inspeção flexíveis e recursos de metrologia.

• Inspeção automatizada para a indústria de semicondutores
• AOI Stop-and-Go 3D de alta precisão
• Inspeção de defeitos na união de fios e união de matriz
• Pronto para inspecionar em minutos com a Programação Inteligente do TRI

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	12 Mpix
Imaging Resolution	5.5 µm
Lighting	Multi-phase True Color LED

Imaging Performance

Max. Imaging Speed

12 Mpix 3D @ 5.5 µm: 4.1 cm²/sec
12 Mpix 2D @ 5.5 µm: 10.3 cm²/sec

Note: Depending on component distribution

Motion Table & Control

X Axis Control	Linear Motor with Motion Controller (Ballscrew + AC Servo Motor Optional)
Y Axis Control	Dual driven ballscrew + AC-servo with Motion Controller
Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 µm

Board Handling

Max. PCB Size	330 x330 mm* *Depending on component distribution
PCB Thickness	0.6-5 mm
Max. PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	40 mm. Optional: 100 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component Defects	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective, Upside Down Extra Component Foreign Material Lifted Component
Solder Joint Defects	Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/ Contamination

Dimensions

WxDxH	1100 x 1730 x 1750 mm Note: not including signal tower, signal tower height 520 mm
Weight	920 kg
