Inspeção por raios-X automatizada (AXI)

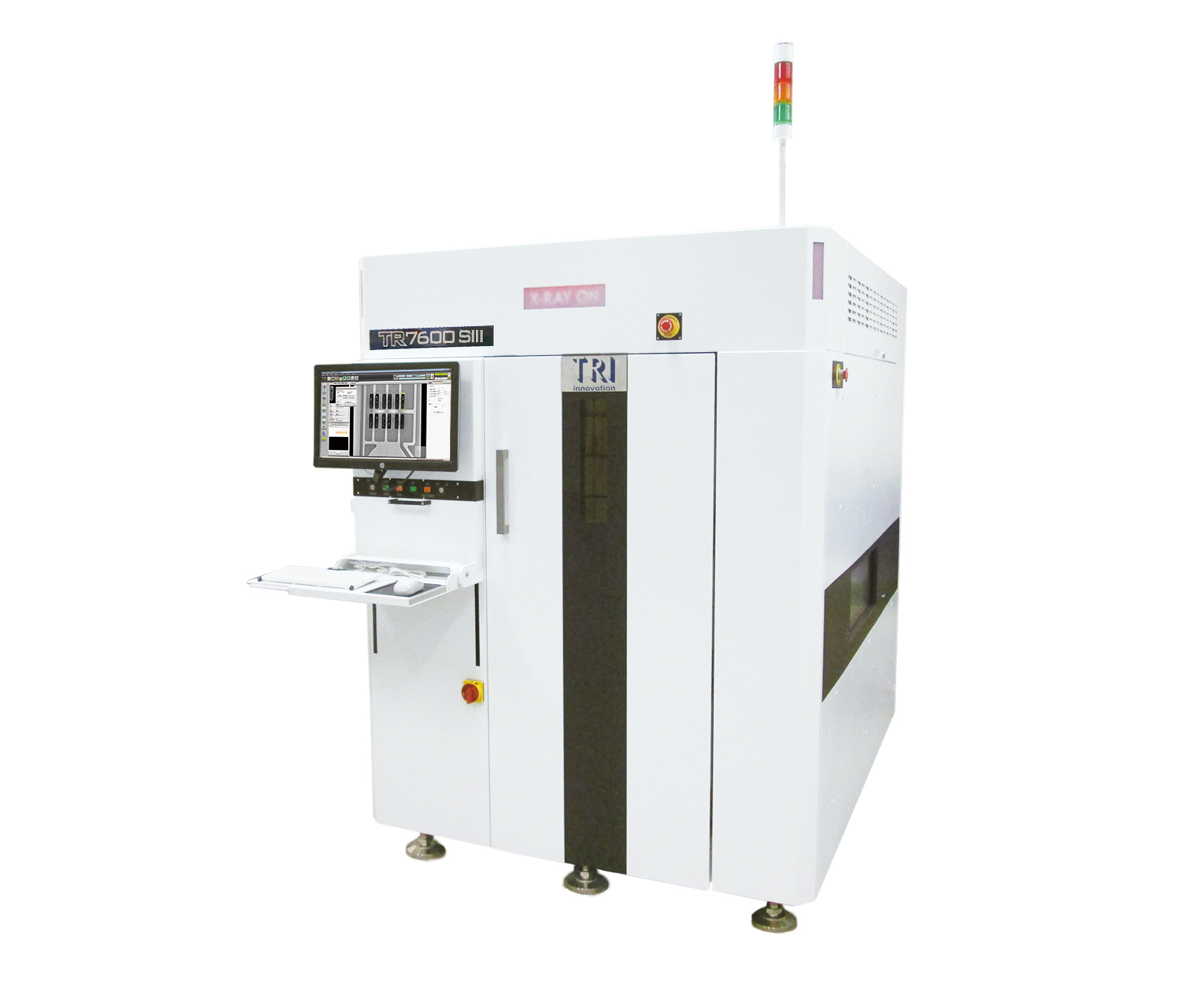

TR7600 SIII

INTRODUCTION

A série TR7600 SIII CT AXI é uma nova geração da marca TRI na linha de soluções de inspeção PCBA. Projetada para cobertura de 100% de inspeção na velocidade da linha de produção, o TR7600 SIII combina a velocidade de imagem em alta resolução com a melhor qualidade de imagem na inspeção automática de X-Ray mais avançada do setor.

• Inspeção X-Ray de alta velocidade em 3D

• Excelente qualidade de imagem

• Autêntico visualizador 3D de juntas de solda

• Alta resolução para chips de 01005 polegadas

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range

Inspection Performance

Imaging Speed

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor

Inspection Functions

Component
Solder

Dimensions

WxDxH
Weight

Imaging System

Camera	Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source	60 -130 kV
Imaging Resolution	7 μm - 20 μm
Inspection Method	2D, 2.5D, 3D Slicing, Planar CT (Optional)

Motion Table & Control

X-Axis Control	High-precision ballscrew + AC-servo controller
Y-Axis Control	High-precision ballscrew + AC-servo controller
Z-Axis Control	High-precision ballscrew + AC-servo controller
X-Y Axis Resolution	N/A

Board Handling

Max PCB Size	900 x 520 mm
PCB Thickness	0.6-7 mm
Max PCB Weight	12 kg
Top Clearance	@ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
Bottom Clearance	70 mm
Edge Clearance	3 mm or 5 mm
Conveyor Height	880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible

Inspection Functions

Capabilities	Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects	Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead

Dimensions

WxDxH	1470 x 2110 x 1975 mm Note: not including signal tower, height: 510 mm
Weight	3850 kg
Power Requirement	200 - 240 VAC single phase, 50/60 Hz, 4 kVA
