Inspeção por raios-X automatizada (AXI)
TR7600TL SIII
TR7600TL SIII
INTRODUCTION

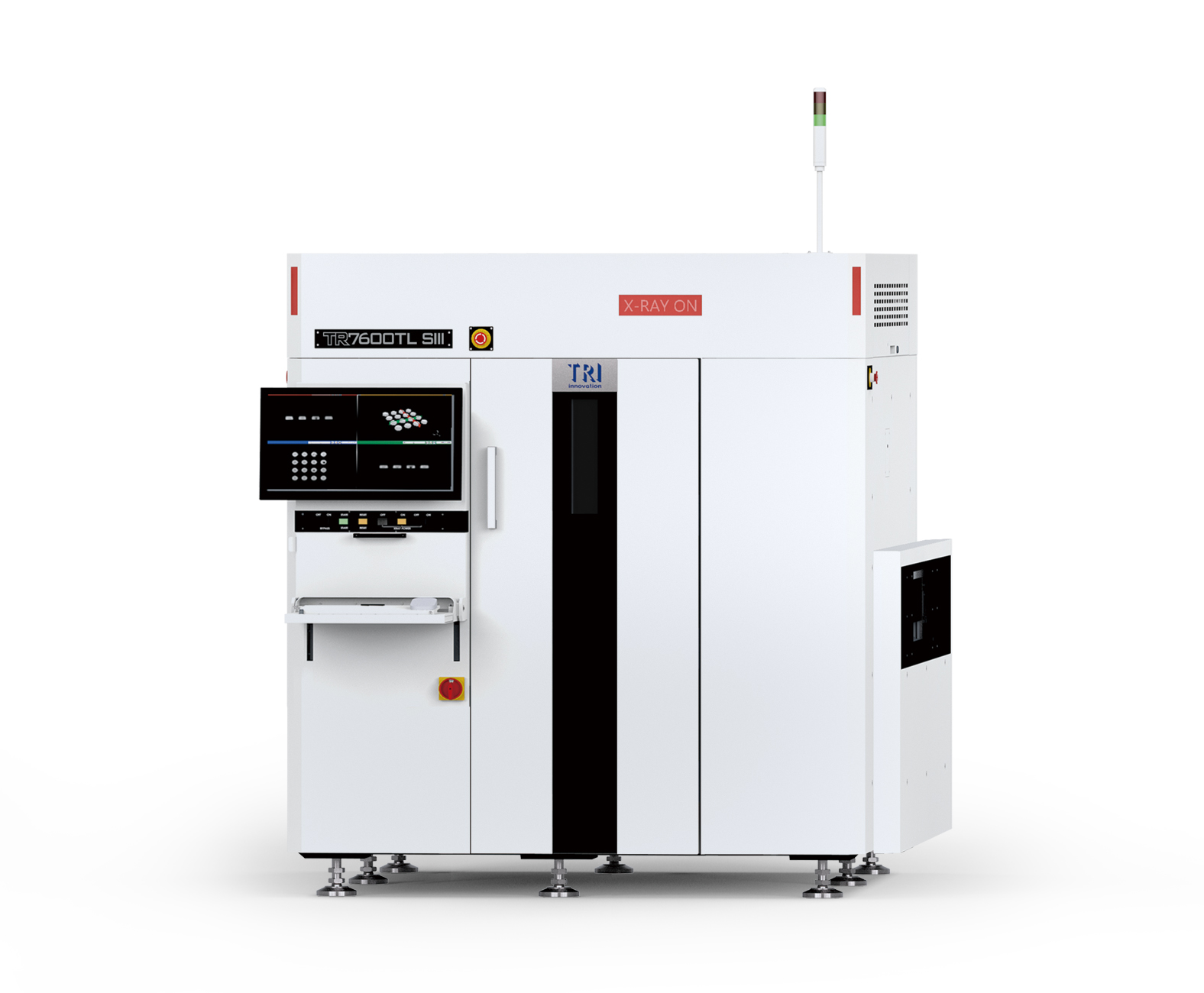

O TR7600TL SIII é a nova plataforma AXI 3D com recursos de TC projetada para a inspeção de placas maiores, de até 1200 mm x 660 mm. A plataforma da série TR7600TL SIII oferece velocidade e desempenho excepcionais sem comprometer a resolução da imagem.
• Inspeção de raio-x 3D de alta velocidade
• AXI de mais alta resolução para placas grandes
• Programação inteligente com algoritmos robustos
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source
60 -130 kV
Imaging Resolution
10 μm - 25 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
1200 x 660 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm*: 15 mm * For confirming the specific technical requirements, please contact TRI’s sales representative
Bottom Clearance
@ 25 μm: 55 mm @ 20 μm: 70 mm @ 15 μm: 70 mm @ 10 μm: 70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible
Inspection Functions
Capabilities
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
Dimensions
WxDxH
2014 x 2000 x 1940 mm Note: not including signal tower, height: 510 mm
Weight
4750 kg
Power Requirement
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer
