INTRODUCTION

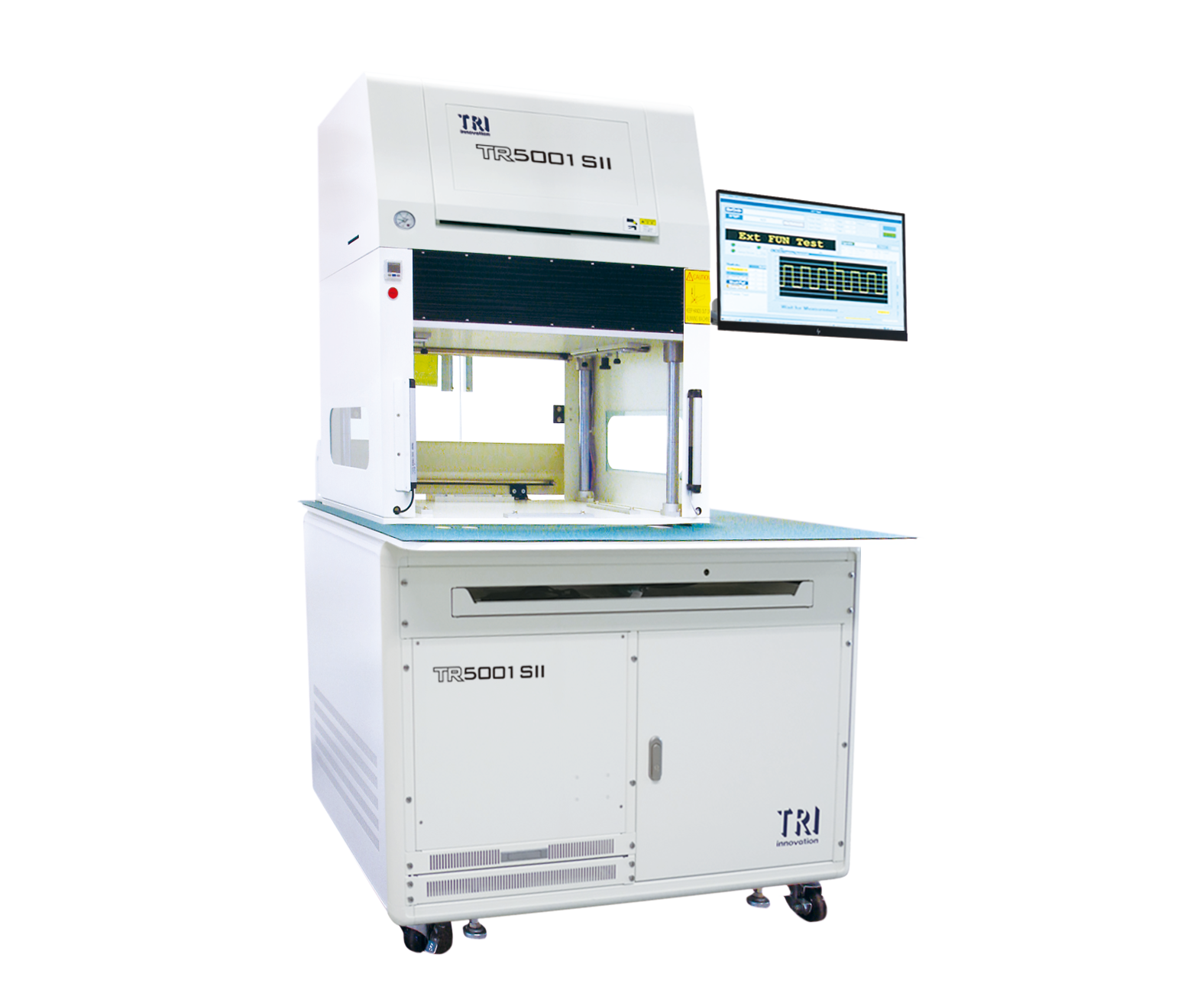

A próxima geração de solução ICT+FCT oferece performance em multi-núcleos paralelos, testando com até 4 núcleos independentes para teste de alto rendimento. Oferecendo maior precisão de medição, auto-calibração embutida e auto-diagnóstico da TR5001Q/D SII garantem a confiabilidade de teste a longo prazo.
• Nova geração do multi-núcleo flexível de teste paralelo
• Controle de teste serial em Estado de Arte, com até 8 portas em qualquer pino
• Solução de acesso e expansão de teste funcional limitados usando módulos PXI
• Função de auto-calibração e auto-diagnóstico embutidas
• Teste e Medição de alta precisão
• Interface de usuário intuitiva, com prático desenvolvimento de programa baseado em fluxo (flow-based)
• Auto-calibration by DMM
Tester Specifications
|
Analog/hybrid test points |
1 Core- 3,456. Optional: 4,480
2 Cores- 3,328. Optional: 4,096
4 Cores- 4,096 |
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Offline press type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
System Requirement
|
Power Requirement |
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA. |
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
Dimensions
|
WxDxH |
1050 x 850 x 1743 mm |
|
Weight |
300 kg |
