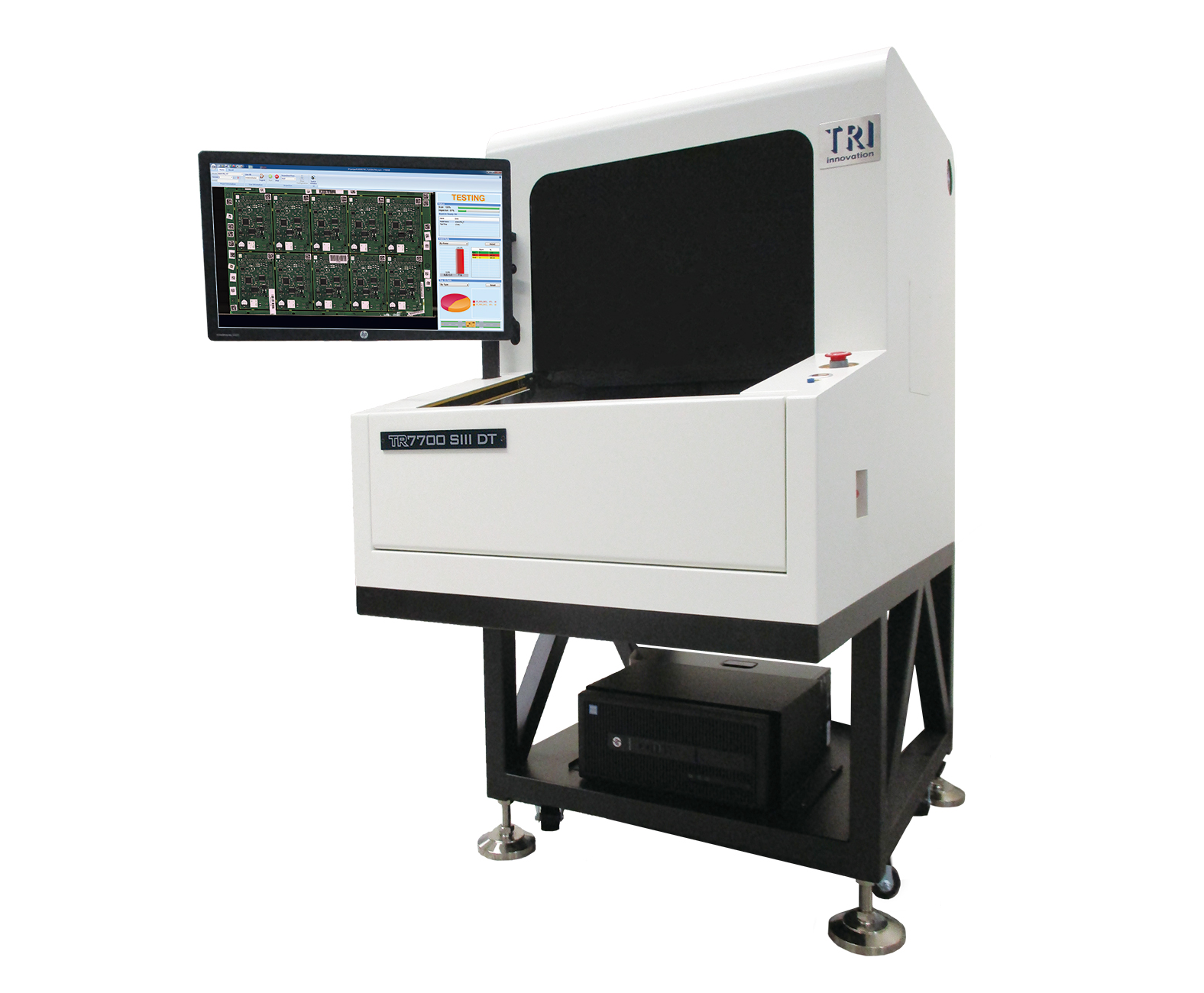

TR7700 SIII DT


TR7700 SIII DT

INTRODUCTION

O TR7700 SIII DT é uma solução AOI desktop de alto desempenho projetada para o máximo de precisão e facilidade de uso. Usar a iluminação multi-fase exclusiva da TRI e o software de inspeção da próxima geração, o TR7700 SIII DT oferece detecção de defeitos excelente, rápida e de fácil de programação ideal para as produções que mudam frequentemente.

• Solução AOI desktop de alta precisão para a inspeção pré/pós-refluxo
• Programação rápida e fácil com cumprimento das normas IPC
• Algoritmos avançados e iluminação multi-fase para mínimas chamadas falsas

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	N/A
Max. 3D Range	N/A

Inspection Performance

Imaging Speed

4 Mpix@ 10 µm: 60 cm²/sec
4 Mpix@ 12.5 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

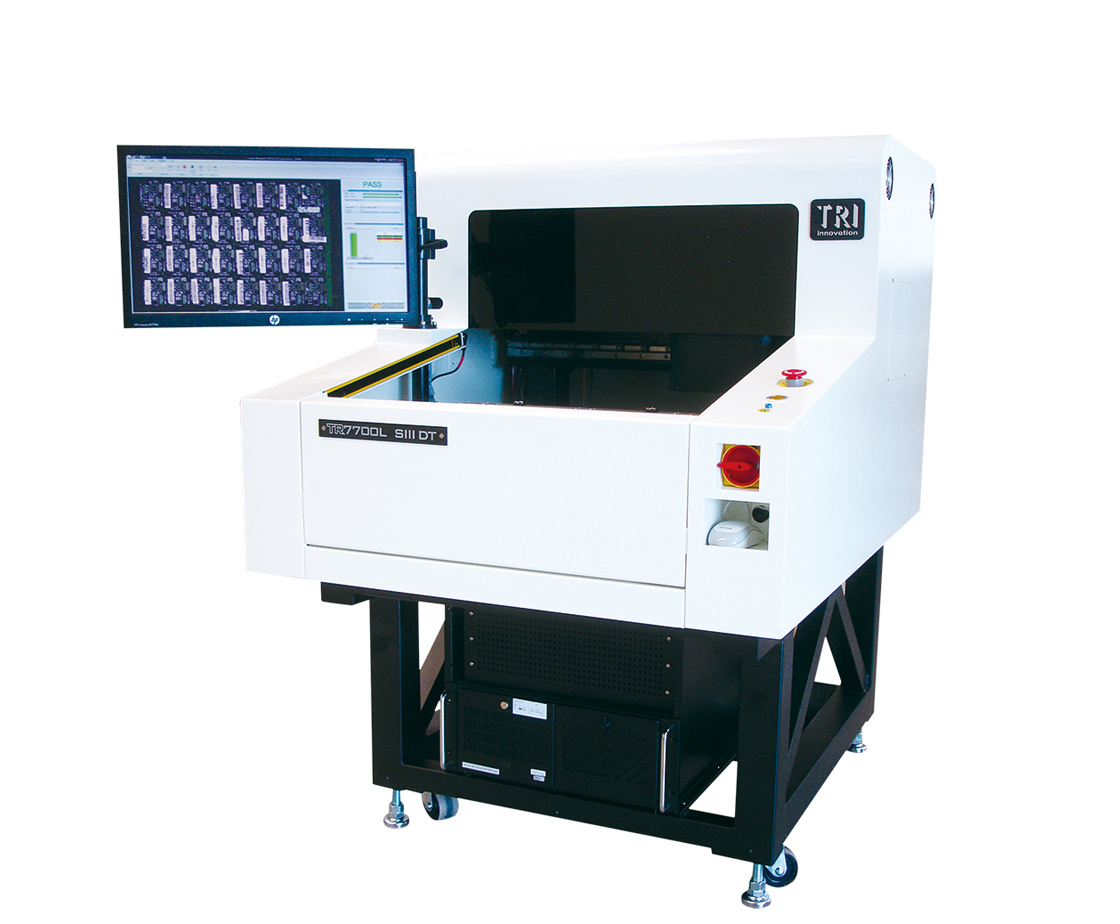

Max PCB Size	TR7700 SIII DT: 330 x 250 mm TR7700L SIII DT: 510 x 460 mm
PCB Thickness	3 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	TR7700 SIII DT: 100 mm TR7700L SIII DT: 50 mm
Edge Clearance	3 mm
Conveyor	Manual

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7700 SIII DT: 860 x 1100 x 1350 mm TR7700L SIII DT: 980 x 1345 x 1490 mm
Weight	TR7700 SIII DT: 340 kg TR7700L SIII DT: 385 kg

Imaging System

Camera
X-ray Source
Imaging Resolution
Inspection Method

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Capabilities
Defects

Dimensions

WxDxH
Weight
Power Requirement
