INTRODUCTION
O TR8100 SII é a plataforma ICT de alta precisão e alto desempenho para PCBAs grandes e complexos. O TR8100 SII é o sistema de teste de placa direcionado ao mercado de teste de baixa tensão. O sistema opera sob vácuo e garante contato total dos pinos e, com uma arquitetura digital sem MUX de até 11.088 pinos, o sistema permite testes mais rápidos e fáceis de dispositivos de alta contagem de pinos e desenvolvimento rápido de programas. O ICT possui autocalibração e autodiagnóstico integrados para garantir a confiabilidade do teste a longo prazo.
• Solução a vácuo para alta cobertura de falhas
• Projeto driver/receptor digital 1:1 por pino de arquitetura
• Função de auto-calibração e auto-diagnóstico embutidas
• Teste e Medição de alta precisão • Interface de usuário intuitiva
• Auto-calibration by DMM
Tester Specifications
|
Max. Test Points |

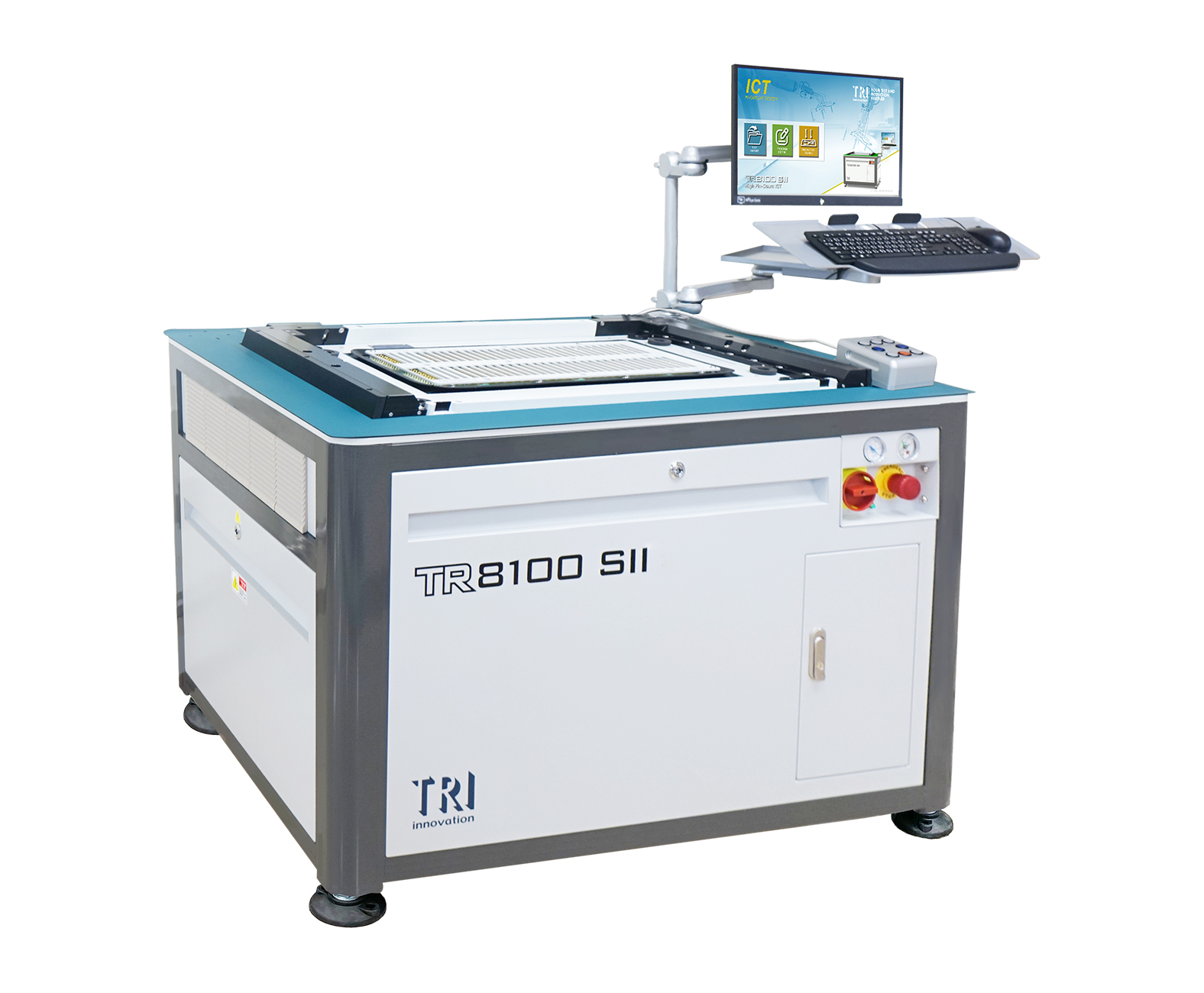

TR8100 SII: 3584. Optional: 7056

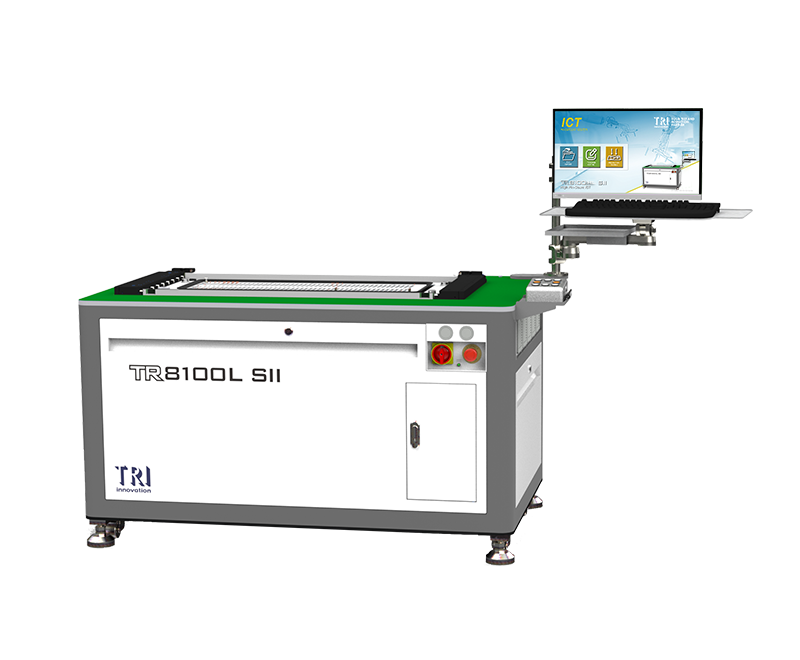

TR8100L SII: 11088
|
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Vacuum type |
|
Max. PCB Size |
TR8100 SII: 790 x 640 mm
TR8100L SII: 990 x 640 mm
|
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT Power Supplies:
(1) Fixed: +5V@5A, +3.3V@5A, +12V@5A, +12V@1A
(2) Programmable: +0.2V~+20V@3A (2sets), -3V~-20V@3A (2 sets)
-
On-board Flash and EEPROM Memories.
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
(3) SPS5450 : 54Vmax/50Amax/2400Wmax per channel/1CH per rack
-
ToggleScan Test
-
VregTestTM: Multi-Phase PWM Individual Phase Frequency & Duty P/N Measurements
|
System Requirement
|
Power Requirement |
200 – 240 V, Single Phase, 50/60 Hz, 4 kVA.
|
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
|
Vacuum Requirement |
Min. -0.86 bar (-12.6 psi), Exhaust: 70 m3/h |
Dimensions
|
WxDxH |
TR8100 SII: 1150 x 850 x 800 mm
TR8100L SII: 1400 x 850 x 800 mm |
|
Weight |
TR8100 SII: 400 kg
TR8100L SII: 470 kg |
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
