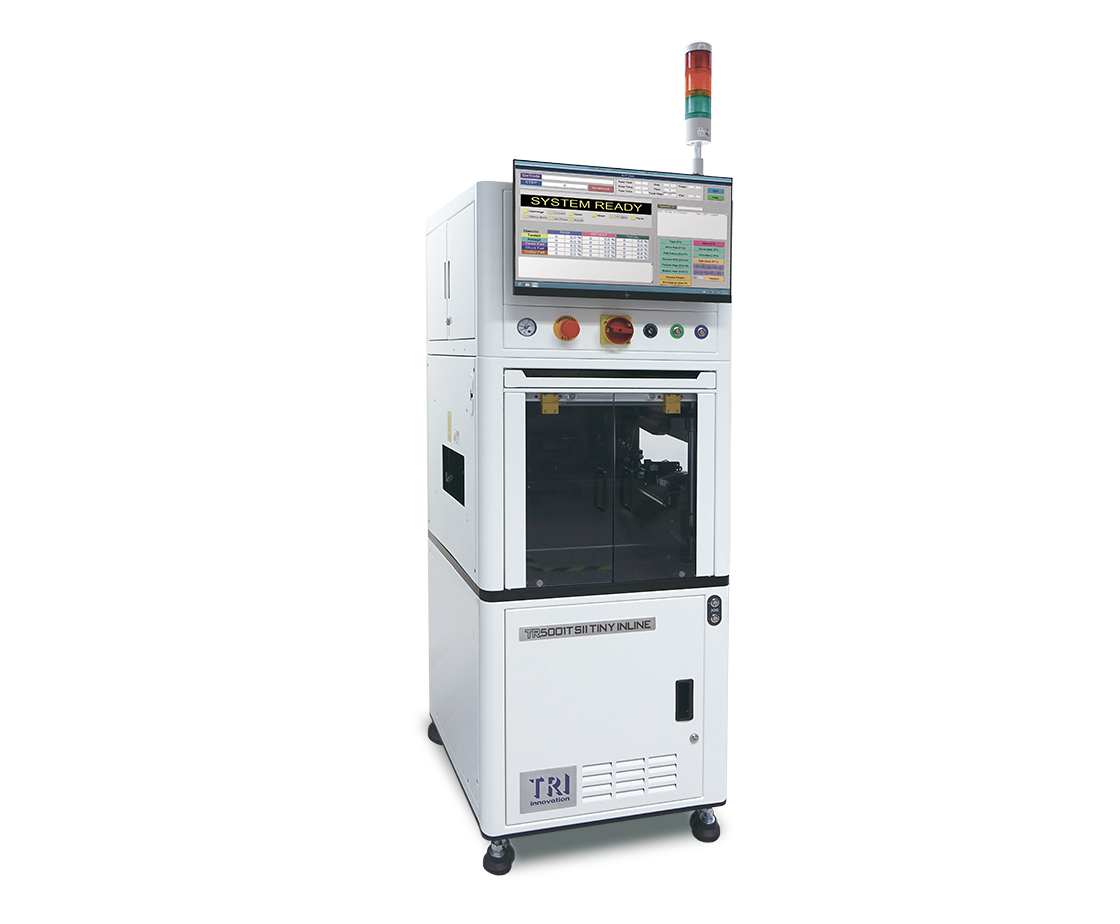

TR5001T SII TINY INLINE


TR5001T SII TINY INLINE

INTRODUCTION

TR5001T SII TINY INLINE é uma plataforma de testes automatizada de boa relação custo benefício, flexível, projetada para teste de ICT em placas pequenas, com até 640 pontos de teste. A plataforma compatível com SMEMA totalmente elétrica apresenta uma pegada ecológica mínima e capacidade completa de TR5001T SII TINY ICT.

• Plataforma de testes em linha cheio de recursos
• Projetado para testadores TRI TR5001T SII
• Pegada ecológica mínima com integração SMEM
• Design totalmente elétrico sem ar comprimido
• Até 640 pontos de teste analógico

Tester Specifications

Analog/hybrid test points	640 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Standard Testing Components

Analog Test Hardware

• 6-wire measurement switching matrix
• Measures voltage, current and frequency
• Component R/L/C/D measurement
• 60 V high voltage current source for LED strip testing

Optional Components

Analog Hardware	• TestJet vectorless open circuit detection • Sine Wave Generator
Digital Testing	• Boundary Scan • Data Acquisition and Audio analyzer modules • Enhanced Digital Test Module
Yield Management System	YMS 4.0

Board Handling

Min PCB Size	70 x 70 mm
Max PCB Size	330 x 250 mm
PCB Thickness	0.6 - 5 mm

Dimensions

WxDxH	600 x 800 x 1640 mm Note: not including signal tower, height: 392 mm
Weight	310 kg
