Inspeção óptica automatizada (AOI)
|
INTRODUCTION

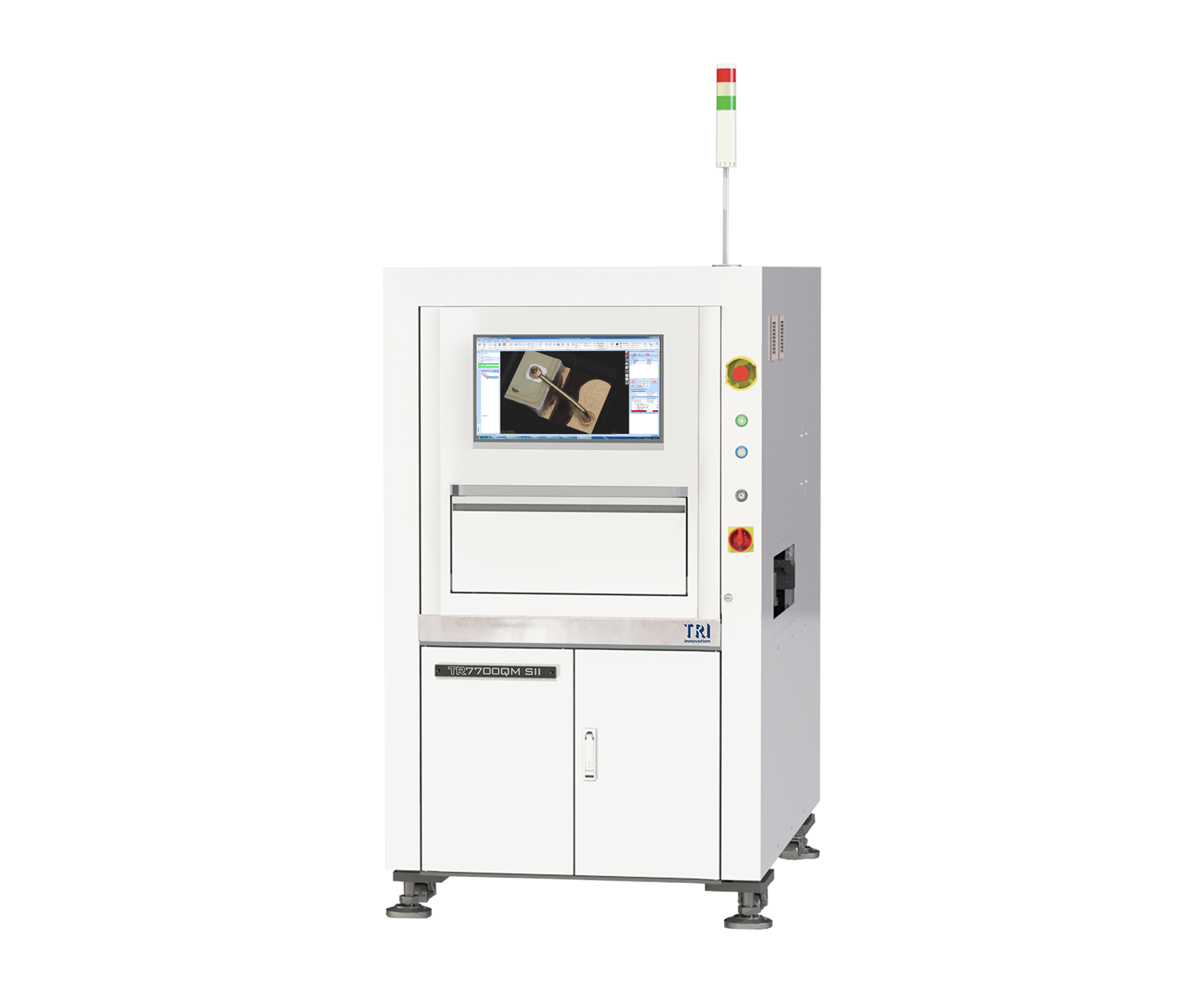

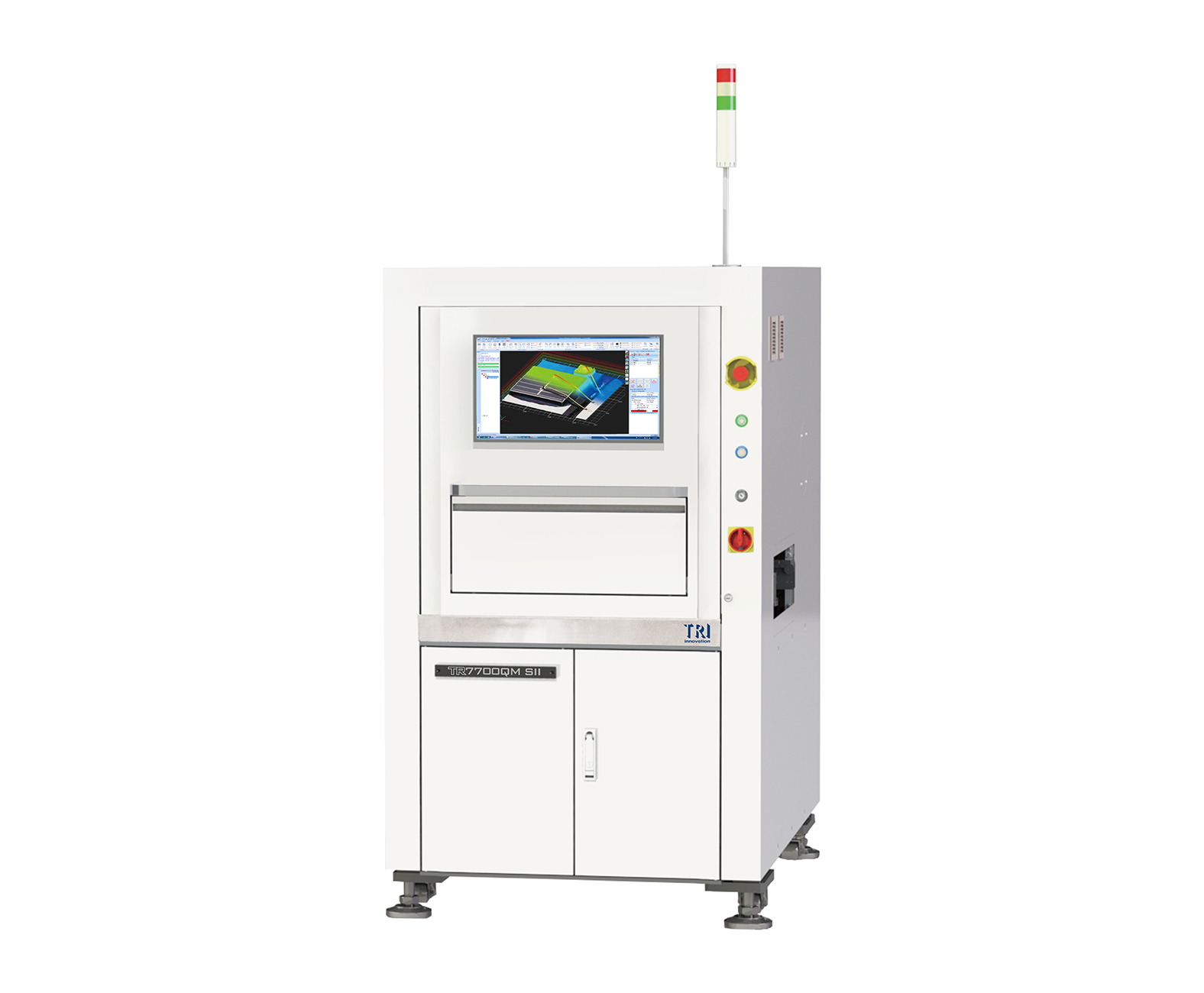

O TR7700QM SII é uma plataforma de alta precisão com tecnologia de imagem de 12 MP de alta resolução de 5,5 µm para a indústria de semicondutores. A AOI 3D Stop-and-Go pode inspecionar solda, wire bond, die, componentes SMD, contaminações, curtos , excesso de solda, entre outros. A solução 3D AOI atinge inspeção de alta precisão por meio de metrologia e algoritmos flexíveis.
• Inspeção automatizada para a indústria de semicondutores
• Solução de inspeção de alta precisão com resolução de 5,5 μm
• Pronto para inspecionar em minutos com a Programação Inteligente do TRI
• Várias tecnologias 3D para maior cobertura
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
12 MP High Speed Camera |
| Angle Camera |
N/A |
| Imaging Resolution |
5.5 μm |
| Lighting |
Multi-phase True Color LED, Coaxial Lighting |
| 3D Technology |
Quad Digital Fringe Projectors |
| Max. 3D Range |
20 mm |
Inspection Performance
| Imaging Speed |
Up to 7.7 cm²/sec |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm with Optional Linear Encoder |
Board Handling
| Max PCB Size |
400 x 330 mm |
| PCB Thickness |
0.6 - 5mm |
| Max PCB Weight |
3 kg |
| Top Clearance |
20 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 5 mm |
| Conveyor |
880 - 920 mm |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
1000 x 1460 x 1650 mm
Note: not including signal tower, signal tower height 515 mm |
| Weight |
785 kg |
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
