Inspeção óptica automatizada (AOI)
INTRODUCTION

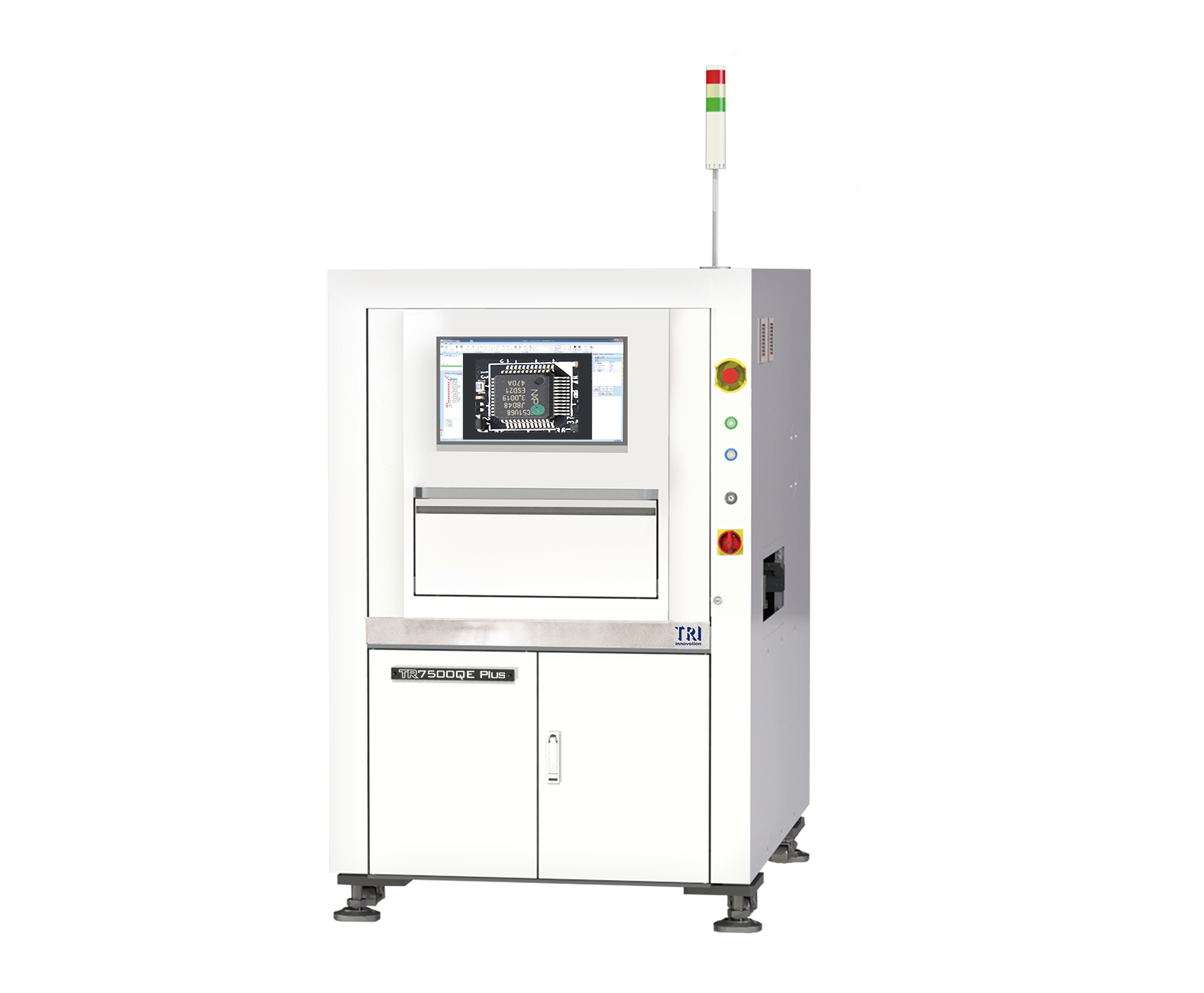

A plataforma TR7500QE Plus é a nova AOI 3D multicâmera. A plataforma 3D AOI está equipada com algoritmos inovadores alimentados por Inteligência Artificial. As câmeras de visão lateral permitem que a plataforma inspecione defeitos como pontes de solda internas e outros defeitos que não são visíveis a partir de uma câmera de visão superior. O TR7500QE Plus suporta padrões Smart Factory como IPC-CFX e The Hermes Standard (IPC-HERMES-9852).
• Cobertura avançada 2D + 3D multicâmera
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP High Speed Camera
Angle Camera
4 Angled Cameras
Imaging Resolution
10 µm, 12 µm *, 15 µm (factory setting)
Lighting
Multi-Phase True Color LED, Coaxial Lighting
3D Technology
Digital Fringe Pattern Projectors
Max. 3D Range
40 mm
Inspection Performance
Imaging Speed
@ 10 μm: 25 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller (Linear Motor Optional)
Y-Axis Control
Dual Driven Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7500QE Plus: 510 x 510 mm
PCB Thickness
0.5 - 6 mm
Max PCB Weight
3kg. Option: 4kg / 5kg
Top Clearance
50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination
Dimensions
WxDxH
TR7500QE Plus: 1100 x 1730 x 1700 mm
Weight
TR7500QE Plus: 920 kg
Imaging System
Camera
X-ray Source
Imaging Resolution
Inspection Method
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Dimensions
WxDxH
Weight
Power Requirement
