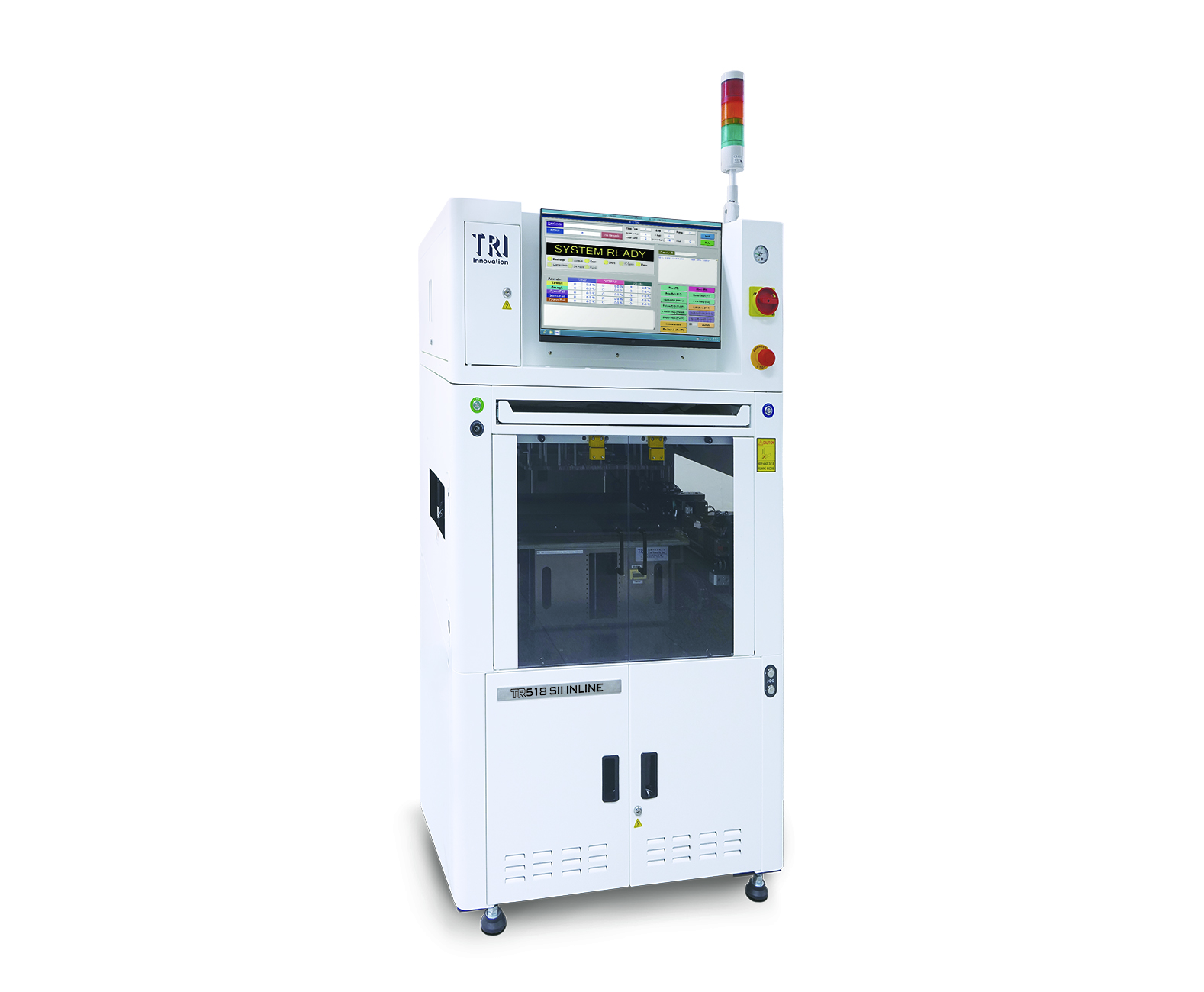

TR518 SII INLINE


TR518 SII INLINE

INTRODUCTION

TR518 SII INLINE é uma plataforma de testes automatizada de boa relação custo benefício, flexível, projetada para teste de MDA em placas médias, com até 2496 pontos de teste. A plataforma compatível com SMEMA totalmente elétrica apresenta uma pegada ecológica mínima e capacidade completa de TR518 SII MDA.

• Plataforma de testes em linha cheio de recursos
• Projetado para testadores TRI MDA
• Pegada ecológica mínima com integração SMEMA
• Design totalmente elétrico sem ar comprimido
• Até 2496 pontos de teste analógico

Tester Specifications

Analog Test Points	TR518 SII INLINE: 2496 analog test points TR518 SII TINY INLINE: 1024 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
Component R/L/C measurement

Optional Components

Analog Hardware	TestJet vectorless open circuit detection Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0

Board Handling

Min. PCB Size	50 x 50 mm

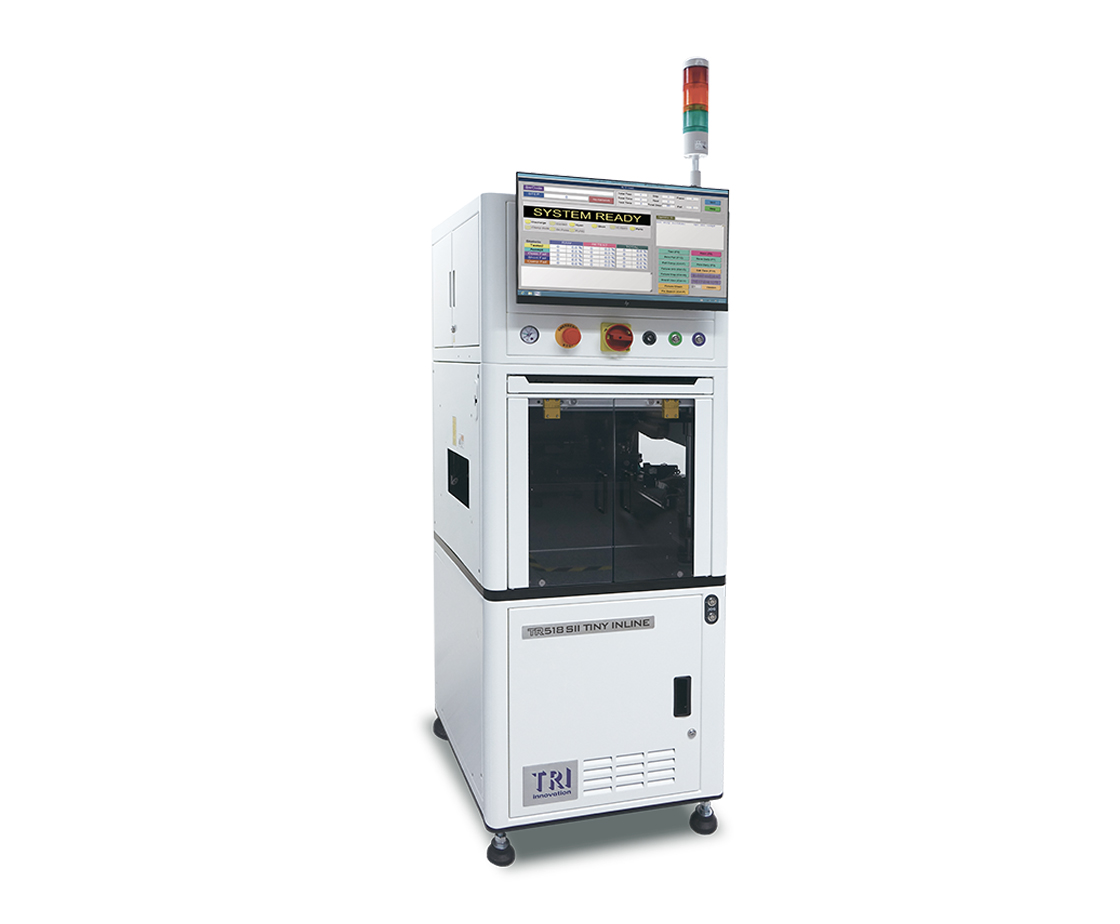

Max. PCB Size	TR518 SII INLINE: 450 x 300 mm. Optional: 500 x 360 mm TR518 SII TINY INLINE: 330 x 250 mm
PCB Thickness	0.6 ~ 5 mm

Dimensions

WxDxH	TR518 SII INLINE: 900 x 900 x 1640 mm TR518 SII TINY INLINE: 600 x 800 x 1640 mm Note: not including signal tower, height: 392 mm
Weight	TR518 SII INLINE: 470 kg TR518 SII TINY INLINE: 320 kg
