Inspeção por raios-X automatizada (AXI)

TR7600LL SIII

INTRODUCTION

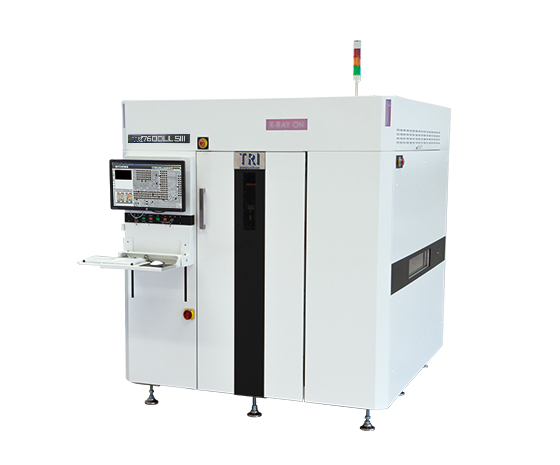

A série TR7600LL SIII CT AXI é uma nova geração da marca TRI na linha de soluções de inspeção PCBA. Projetado para cobertura de 100% de placas com grandes dimensões, o TR7600LL SIII oferece o melhor desempenho da indústria em resolução com excelente qualidade de imagem no sistema de inspeção raio-X automático mais rápido e avançado do mundo.

• Inspeção X-Ray de alta velocidade em 3D

• Excelente qualidade de imagem

• Autêntico visualizador 3D de juntas de solda

• Inspeção de placa extra grande

• Alta resolução para chips de 01005 polegadas

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range

Inspection Performance

Imaging Speed

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor

Inspection Functions

Component
Solder

Dimensions

WxDxH
Weight

Imaging System

Camera	Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source	60 -130 kV
Imaging Resolution	7 μm - 20 μm
Inspection Method	2D, 2.5D, 3D Slicing, Planar CT (Optional)

Motion Table & Control

X-Axis Control	High-precision ballscrew + AC-servo controller
Y-Axis Control	High-precision ballscrew + AC-servo controller
Z-Axis Control	High-precision ballscrew + AC-servo controller
X-Y Axis Resolution	N/A

Board Handling

Max PCB Size	1000 x 660 mm
PCB Thickness	0.6 - 7 mm
Max PCB Weight	12 kg
Top Clearance	@ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
Bottom Clearance	70 mm
Edge Clearance	3 mm or 5 mm
Conveyor Height	880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible

Inspection Functions

Capabilities	Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity, Rotation, Floating
Defects	Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting, Void, Lifted Lead

Dimensions

WxDxH	1750 x 2140 x 1945 mm
Weight	4500 kg
Power Requirement	200 - 240 VAC three phase, 50/60 Hz, 7 kVA (346-416 VAC optional three phase transformer)
