半導體檢測機 (SEMI)

TR7900Q SII

INTRODUCTION

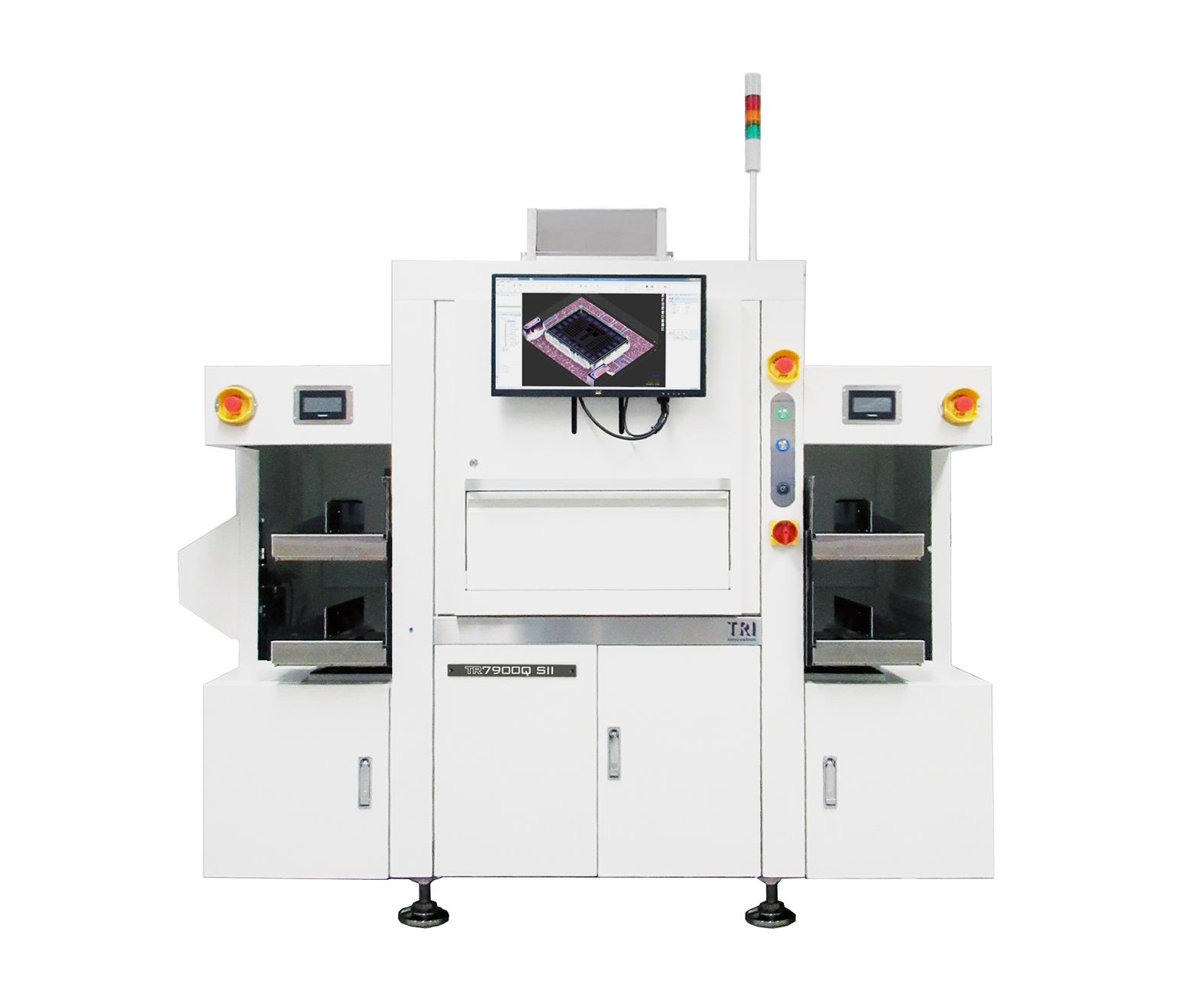

25 MP/2.5 μm高解析智能工廠3D SEMI AOI 解決方案TR7900Q SII，具備AI演算法和量測功能可提升檢測效益，專為半導體和先進封裝業所設計，能夠檢測高達15 μm (0.6 mil)的線徑。TR7900Q SII走停式取像技術，可以檢測黏晶、球形接合、帶狀接合、楔形鍵合、SiP、填充膠、SMD、凸塊和錫點；完善整合裝載/卸載模組，可便於採用輸送基板和彈匣。

• 打線接合與黏晶先進封裝缺陷檢測
• 2.5 μm 量測等級*技術高解析度 3D AOI
• 內建彈匣裝載/卸載輸送裝置
• 打線檢測 AI演算法技術支持*
• 可檢測小至 17 μm 的金/鋁/銀/銅線
• 接合檢測：球形接合、楔形接合、帶狀接合
• 短波紅外線(SWIR) 照明檢測內部裂縫和碎裂*
• 無塵環境等級 1000 - ISO 等級 6 (ISO 14644-1)

*選配項目

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	25 Mpix
Imaging Resolution	2.5 µm
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Height Range	15 mm

Motion Table & Control

X Axis Control	Ball Screw + AC Servo Motor or Linear Motor
Y Axis Control	Dual Ball Screw + AC Servo Motor or Dual Linear Motor (Optional)
X-Y Axis Resolution	0.1 µm

Board Handling

Max. Stack Magazine Qty.	3 Magazines (based on Magazine width 125 mm)
Magazine Dimension	Width: 50 - 175 mm Length: 120 - 320 mm Height: 80 - 150 mm
Strip Dimension	Width : 35 - 150 mm Length: 100 - 285 mm Thickness: 0.1 - 1.5 mm When the strip width is between 35-54 mm, will require a special design.
Max. Strip Weight	0.5 kg
Strip Carrier / Fixing	Belt Conveyor
Top Clearance	7 mm
Bottom Clearance	10 mm
Edge Clearance	3 mm

Inspection Functions

Die Bonding	Missing Orientation Rotation Shift Tilted Chipping Crack Scratch Foreign Material Bond line thickness Epoxy on Die Epoxy Coverage Epoxy Height
Wire Bonding	Broken Short Sweep/Sink Missing Sway Collapse Loop Height Sagged Wire Cross Wire Gap Wire Tracing Ball Bond Diameter Ball Placement Stitch Width Stitch Coverage over Ball Ball-off Pad Ball touch Pad Distance Clubbed Ball Ball Thickness Lifted Ball Low Landing Bond on Contamination Foreign Material
Bonding Area/Pad	Copper Protrusion Crack Chipping Exposed Copper Exposed Nickel Target Material Scratches or Brush Marks Oxidation Foreign Material

Dimensions

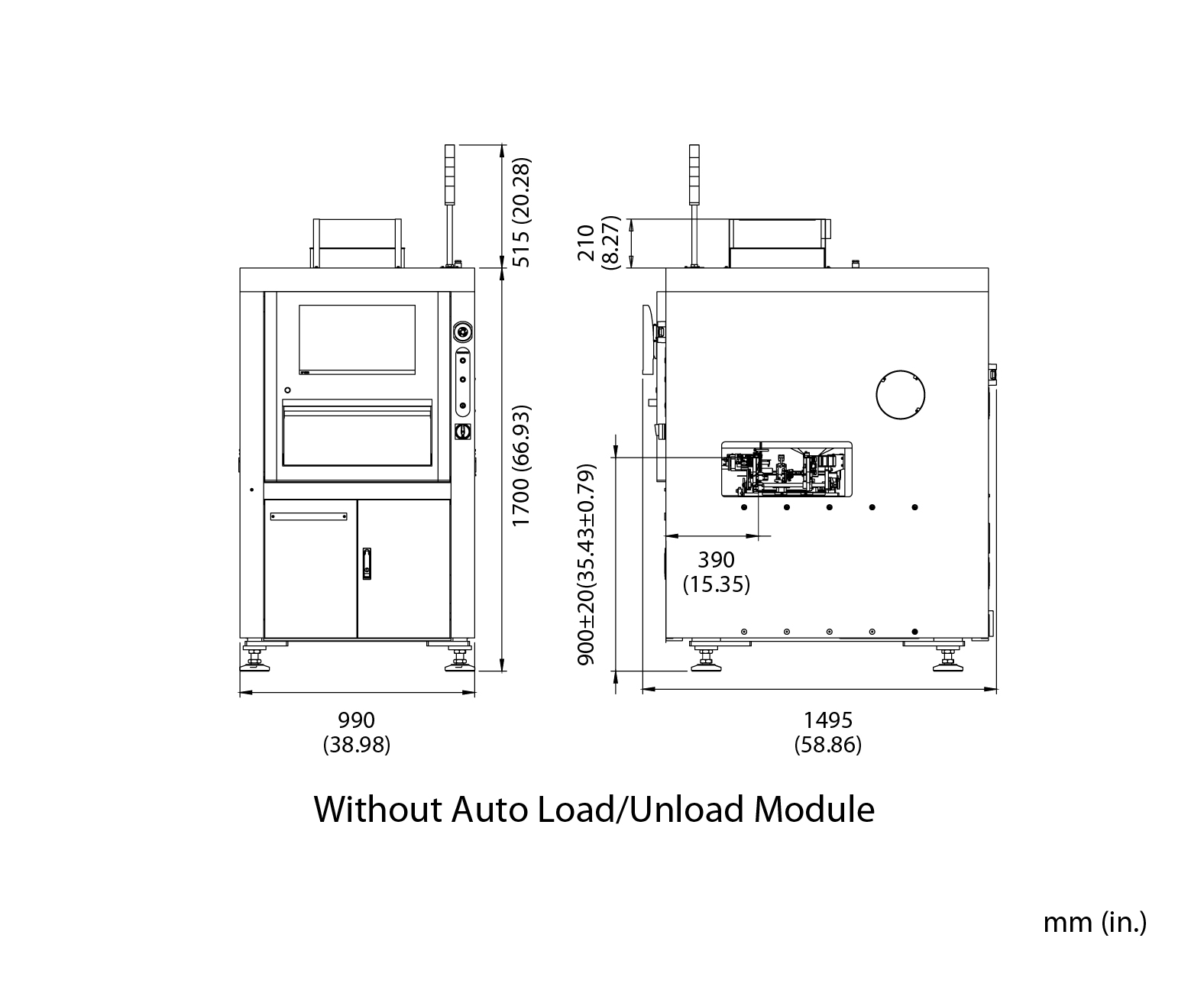

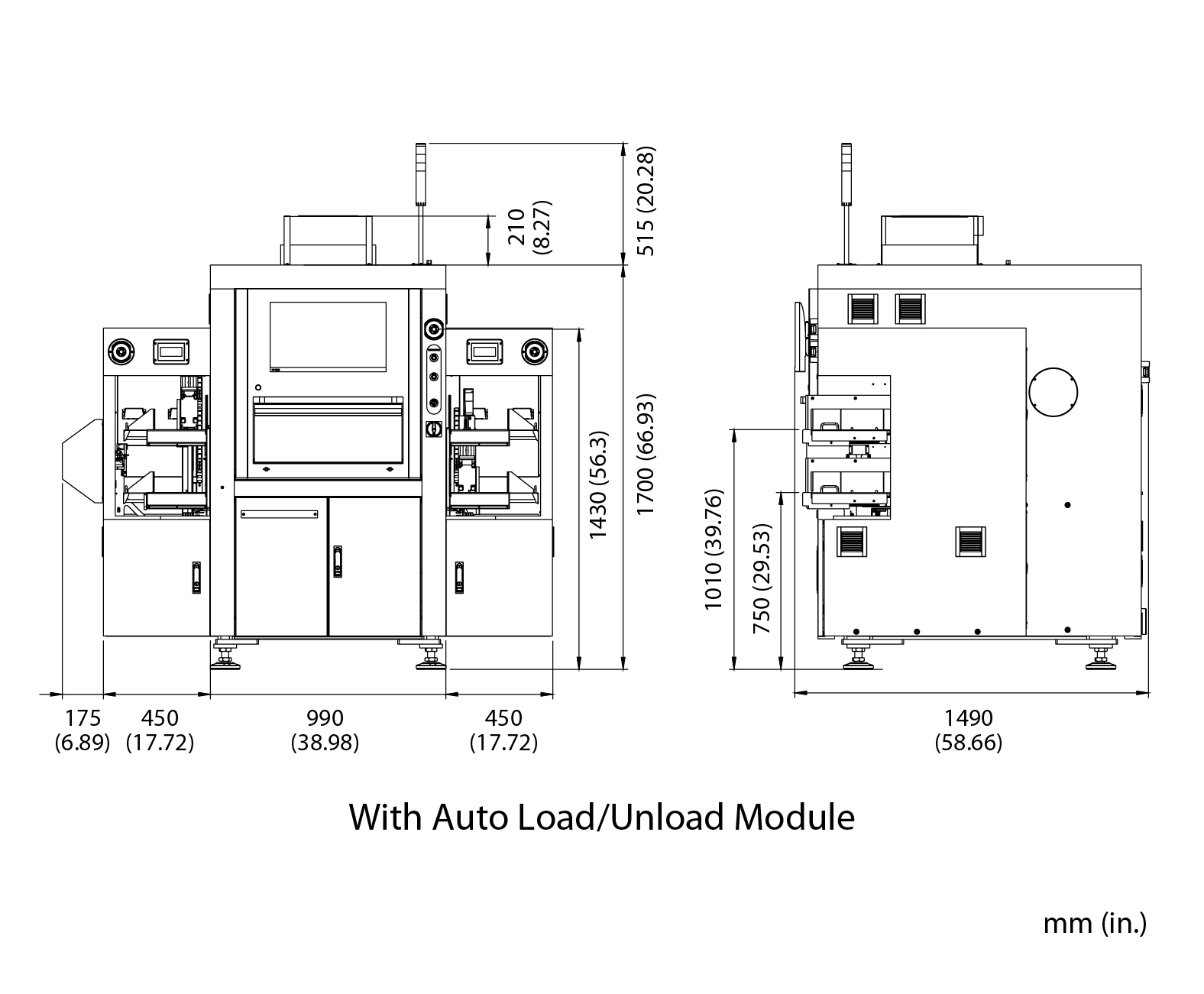

WxDxH	990 x 1495 x 1700 mm (Without Auto Load/Unload Module) 2065 x 1490 x 1700 mm (With Auto Load/Unload Module) Note: not including signal tower, signal tower height 515 mm
Weight	823 kg. With Auto Load/Unload Module: 989.5 kg
