INTRODUCTION

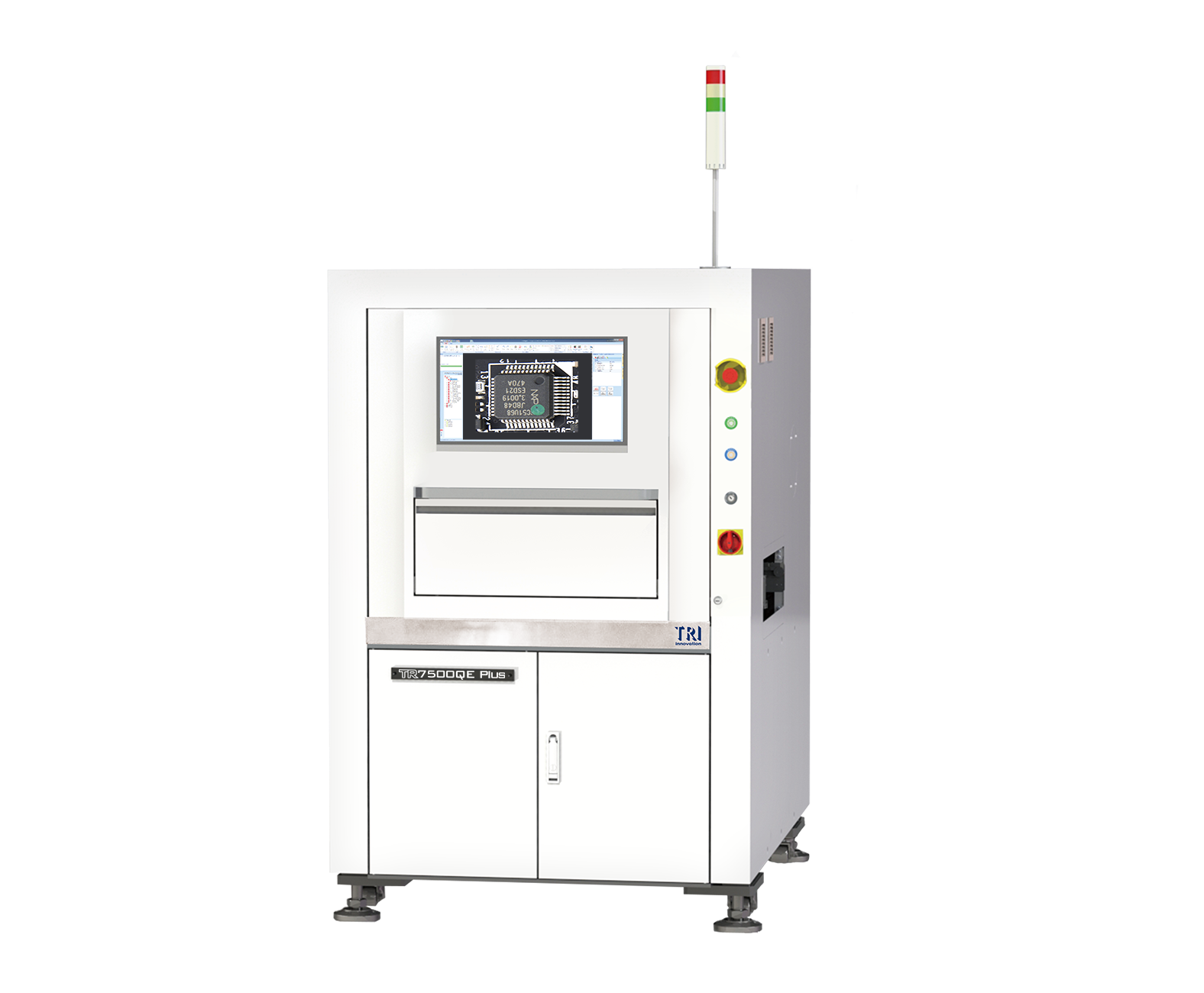

TR7500QE Plus 是新一代多攝像頭側視 3D AOI。 經濟高效的 3D AOI 平台配備了創新的 AI 驅動演算法和增強的機械功能，可提供高精度檢測。TR7500QE Plus的側視攝像頭使此平台可檢測內層橋接、隱藏的翹腳和其他被遮蔽的缺陷，此外還可支持例如 IPC-CFX 和 Hermes (IPC-HERMES-9852)的最新智能工廠標準。
• 5攝像頭多角度3D測視檢測
• 量測等級檢測
• 智能編程AI驅動演算法
• 支持工業4.0
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
12 MP High Speed Camera |
| Angle Camera |
4 Angled Cameras |
| Imaging Resolution |
10 µm, 12 µm *, 15 µm (factory setting)
* Available for TR7500QE Plus |
| Lighting |
Multi-Phase True Color LED, Coaxial Lighting |
| 3D Technology |
Digital Fringe Pattern Projectors |
| Max. 3D Range |
40 mm |
Inspection Performance
| Imaging Speed |
@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller (Linear Motor Optional) |
| Y-Axis Control |
Dual Driven Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm |
Board Handling
| Max PCB Size |
TR7500QE Plus: 510 x 510 mm
TR7500QE Plus DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness |
0.5 - 6 mm |
| Max PCB Weight |
3kg. Option: 4kg / 5kg |
| Top Clearance |
50 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
| Conveyor |
Inline Height: 880 – 920 mm |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
TR7500QE Plus: 1100 x 1730 x 1700 mm
TR7500QE Plus DL: 1100 x 2005 x 1700 mm
TR7500L QE Plus: 1365 x 1865 x 1700 mm
Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7500QE Plus: 920 kg
TR7500QE Plus DL: 1040 kg
TR7500L QE Plus: 1035 kg |
