INTRODUCTION

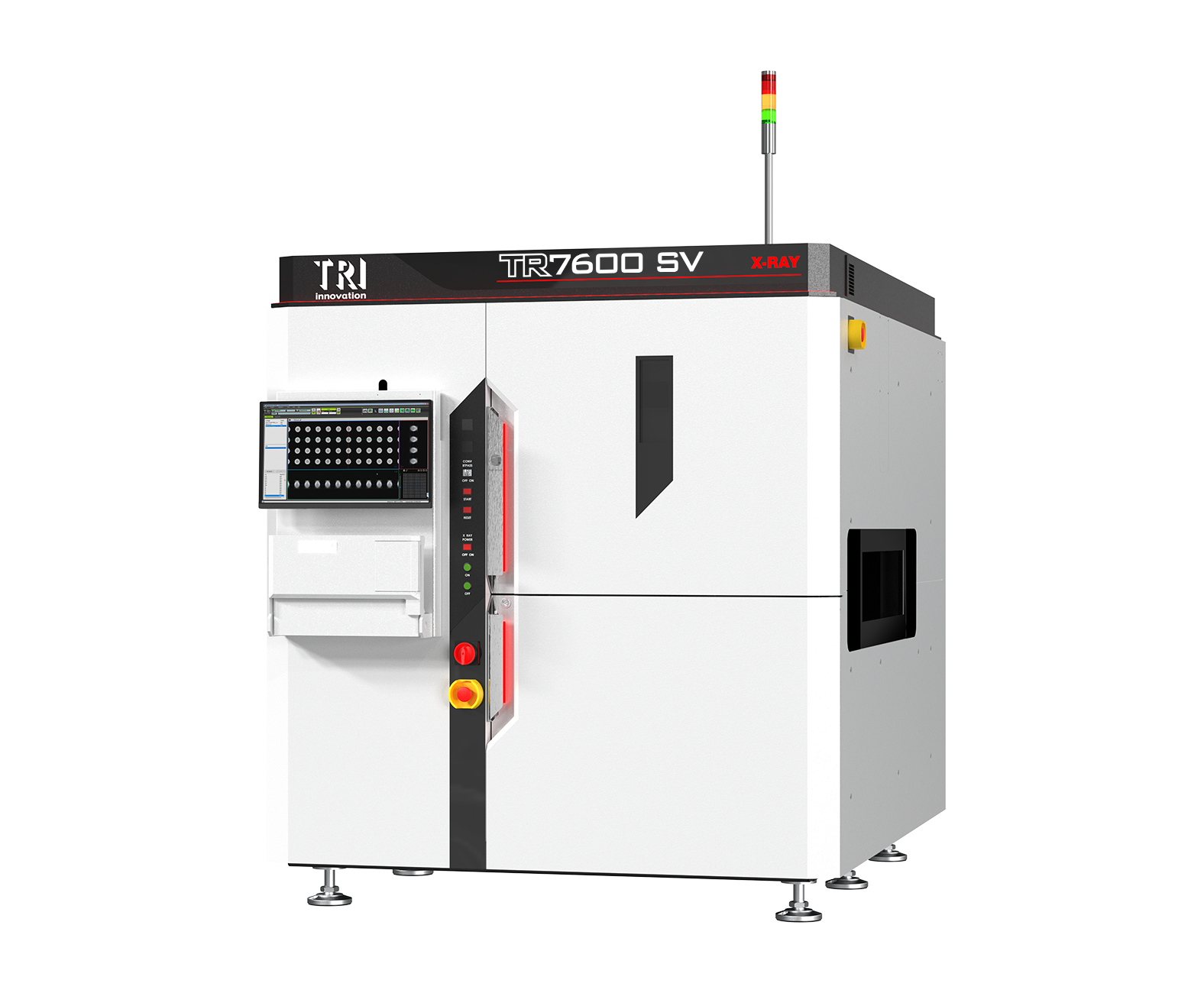

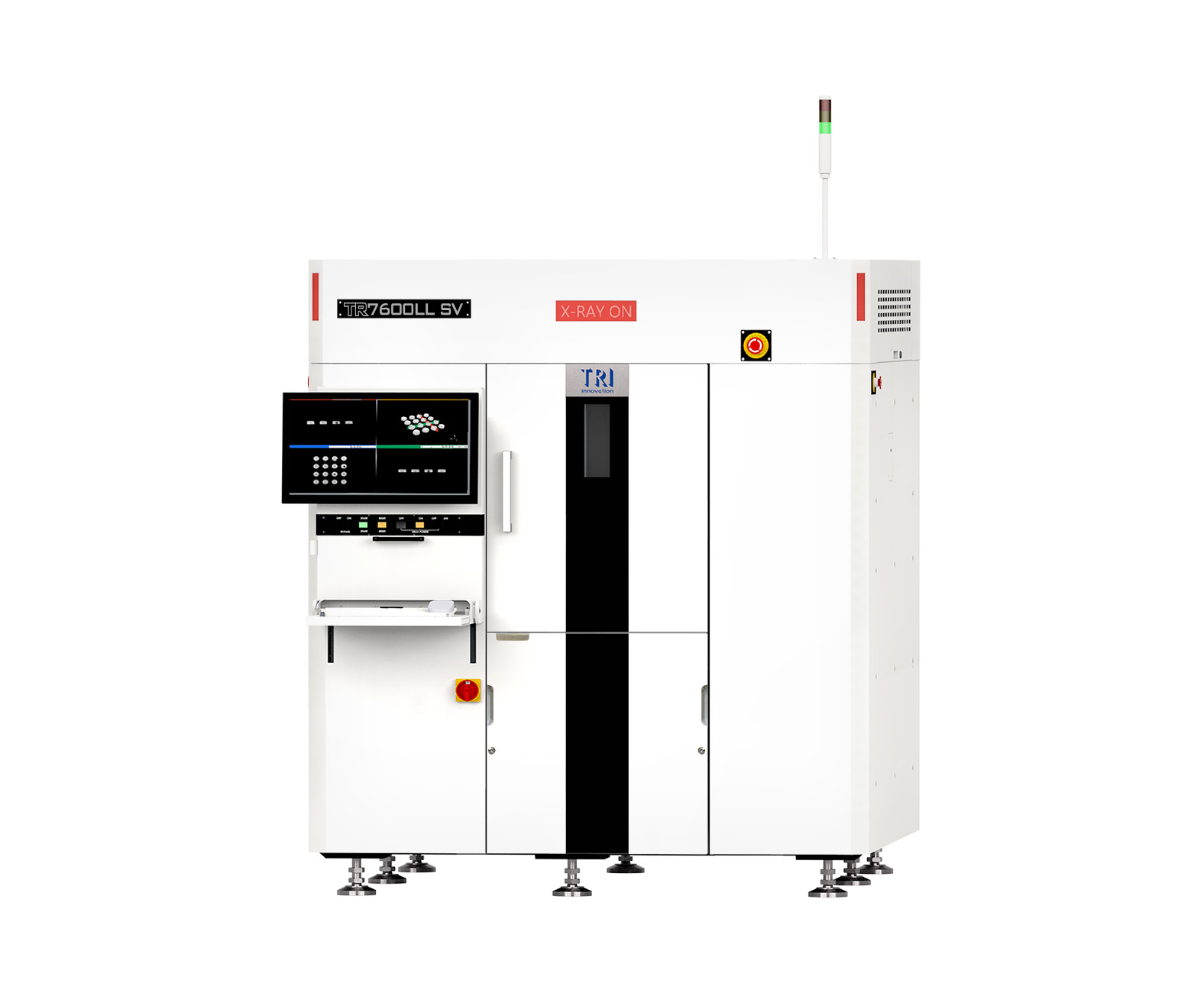

全新推出的 TR7600 SV 系列 線性掃描 3D AXI,效能較獲獎肯定的 TR7600 SIII 系列大幅提升達 20%。此款高速系統不僅搭載 AI 演算法,能精準辨識氣泡缺陷,更支援 7 µm 高解析度 影像,為客戶提供穩定且高良率的檢測方案。其強大的平台具備快速影像重建能力,並能檢測多種零件的缺陷,包括:BGA、填孔、電容器、晶片、RF 屏蔽框下元件、CSP、DIMM 連接器、Flip-Chips、Ground Pads、Gullwing、散熱片、J-Leads、LED 芯片、LGA、Paladin 連接器、電阻、RNET、封裝體系(SiP)、SMT 連接器、SOIC、SOT、導熱片、QFN、QFP 及 THT。
• 7 µm 高性能檢測,效能較前代機型提升 20%
• 全新 EtherCAT 運動控制器,實現即時量測且易於維護
• 搭載 AI 檢測演算法,實現精準缺陷檢測
• 支援智慧工廠,可輕鬆串接 MES
• 全球技術支援服務
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Ultra-High Speed Line-Scan CCD 3 or 5 Units (9 or 15 Sensors) |
| X-ray Source |
60 -130 kV |
| Imaging Resolution |
7 μm - 25 μm |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
| X-Axis Control |
Linear Servo Motor with Motion Controller |
| Y-Axis Control |
TR7600 SV: High-Precision Dual Driven Ball Screw + AC-Servo Controller, TR7600LL SV: High-Precision Ballscrew + AC-Servo Controller |
| Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
TR7600 SV: 950 x 520 mm TR7600LL SV: 1000 x 660 mm |
| PCB Thickness |
0.4 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
|
| Bottom Clearance |
@ 7 /10 / 15 / 20 μm- TR7600 SV: 80 mm, TR7600LL SV:70 mm @ 25 μm- 55 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm. Optional: 940 - 965 mm |
Inspection Functions
| Capabilities |
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
|
| Defects |
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
|
Dimensions
| WxDxH |
TR7600 SV: 1600 x 2100 x 1800 mm TR7600LL SV: 1730 x 2300 x 1975 mm
Note: not including signal tower, height: 519 mm
|
| Weight |
TR7600 SV: 3,350 kg TR7600LL SV: 4900 kg |
| Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
|
