自動光學檢測機 (AOI)

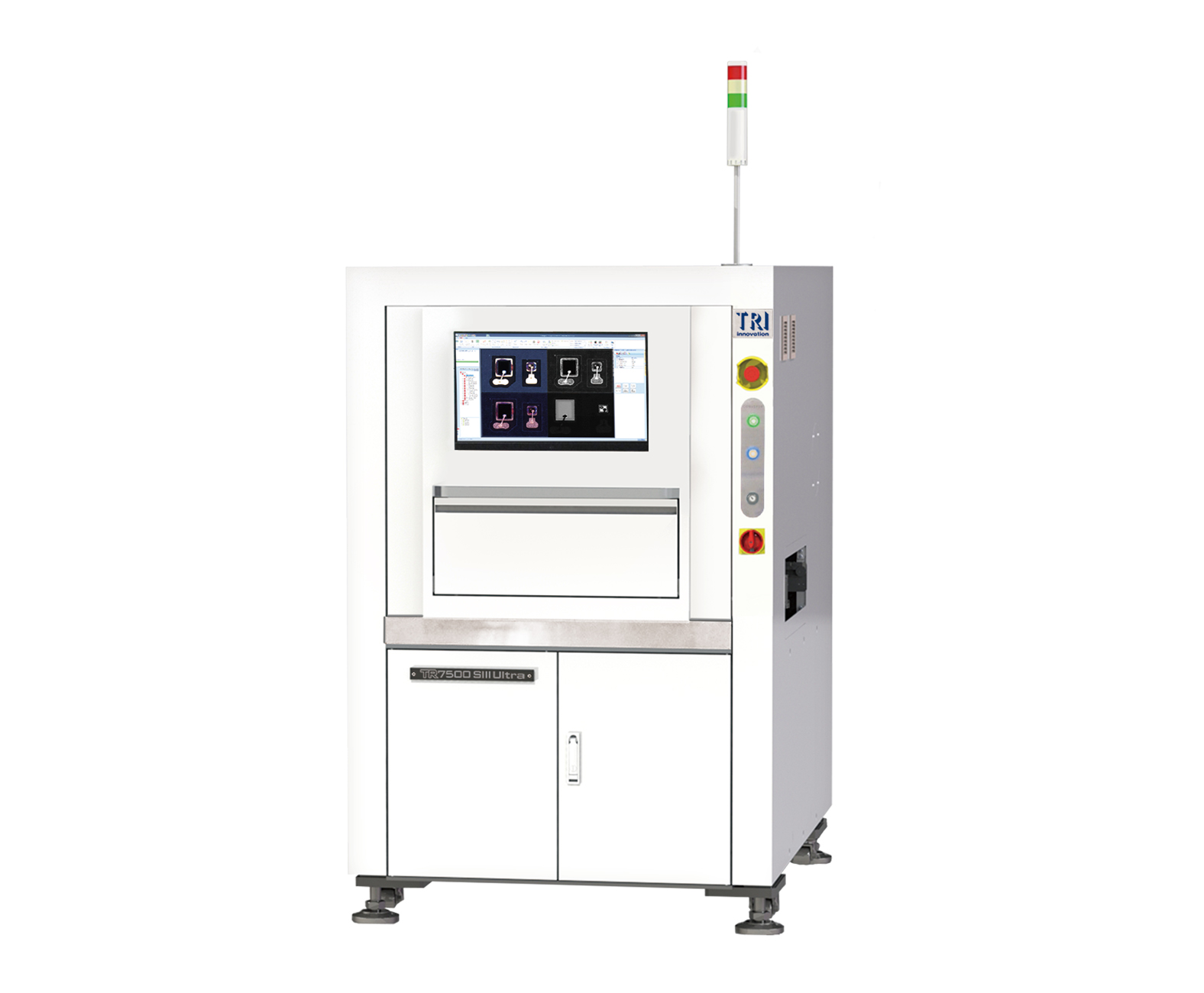

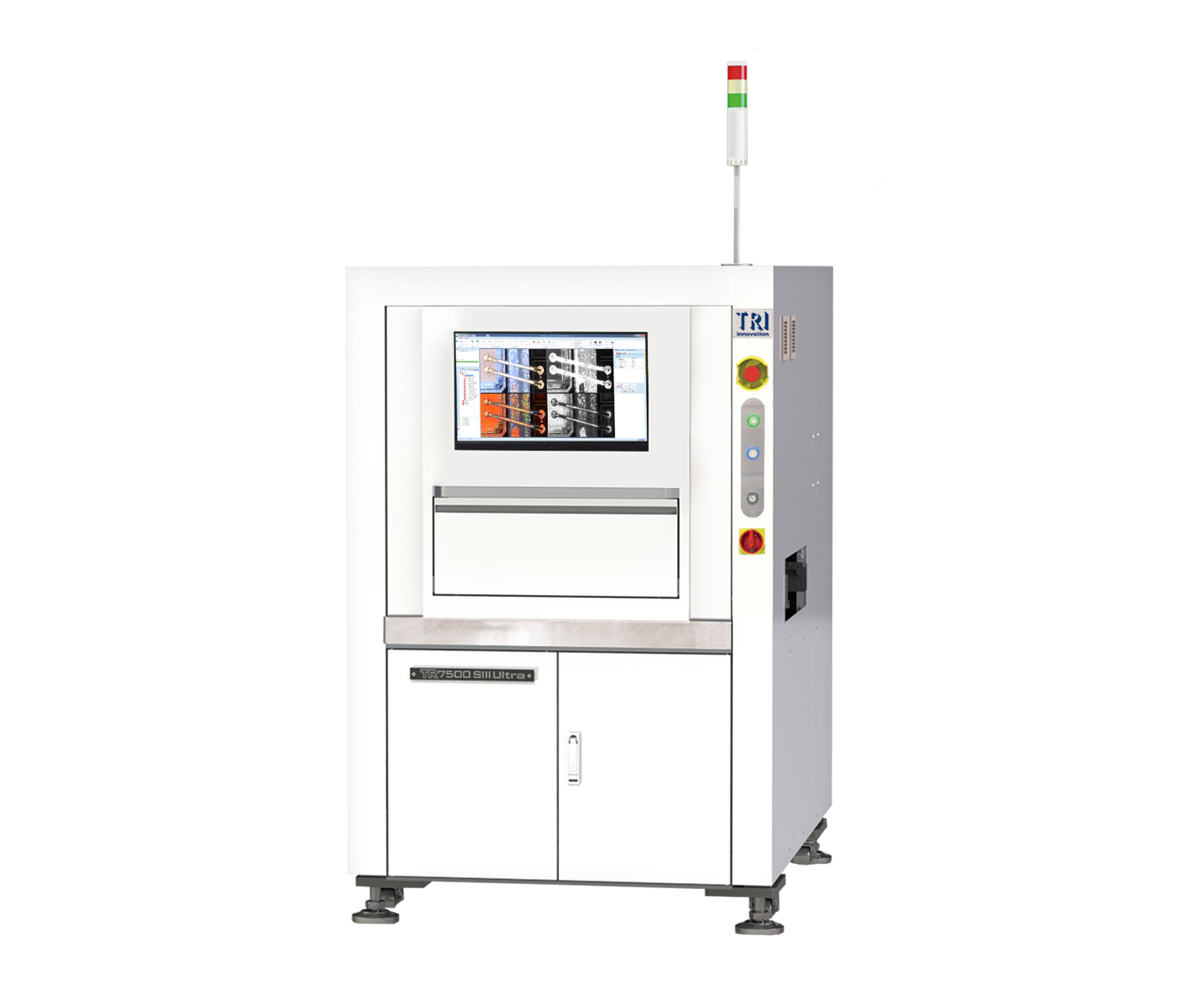

TR7500 SIII Ultra

INTRODUCTION

TR7500 SIII Ultra 整合了多鏡頭側面檢測、先進的 AI 驅動演算法* 以及計量級* 量測技術，實現高精度檢測。憑藉提升的機械性能，該系統在準確度方面表現卓越，能檢測內層橋接與隱藏缺陷。這款智能工廠 AOI 確保了符合工業 4.0 標準且具成本效益的解決方案，提供全面的缺陷檢測。　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

• 多角度側面檢測，提供全面缺陷檢測涵蓋
• AI 驅動缺陷檢測演算法*
• 搭配 TRI AOM* 的計量級量測
• 搭配雷射模組* 的 3D 輪廓量測
• 具備智能編程，設定簡易
• 智慧工廠就緒解決方案

*選配功能

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 MP High Speed Color Camera
Angle Camera	4 Angled Cameras
Imaging Resolution	10 µm , 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	3D Laser Sensor (Optional)
Max. 3D Range	N/A

Inspection Performance

Imaging Speed

4 MP@ 10 μm: up to 60 cm²/sec
4 MP@ 15 μm: up to 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC Servo with Motion Controller
Y-Axis Control	Ballscrew + AC Servo with Motion Controller
Z-Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 μm

Board Handling

Max PCB Size	TR7500 SIII Ultra: 510 x 460 mm TR7500M SIII Ultra: 660 x 690 mm TR7500 SIII Ultra DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg. Optional: 5 kg
Top Clearance	25 mm. Optional: 48 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * Optional: 940-965 mm (SMEMA compatible)

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7500 SIII Ultra: 1100 x 1720 x 1710 mm TR7500M SIII Ultra: 1250 x 1740 x 1710 mm TR7500 SIII Ultra DL: 1365 x 1720 x 1710 mm Note: Not including signal tower
Weight	TR7500 SIII Ultra: 940 kg TR7500M SIII Ultra: 992 kg TR7500 SIII Ultra DL: 960 kg
