TR8100 SII INLINE
 |
|
|
|

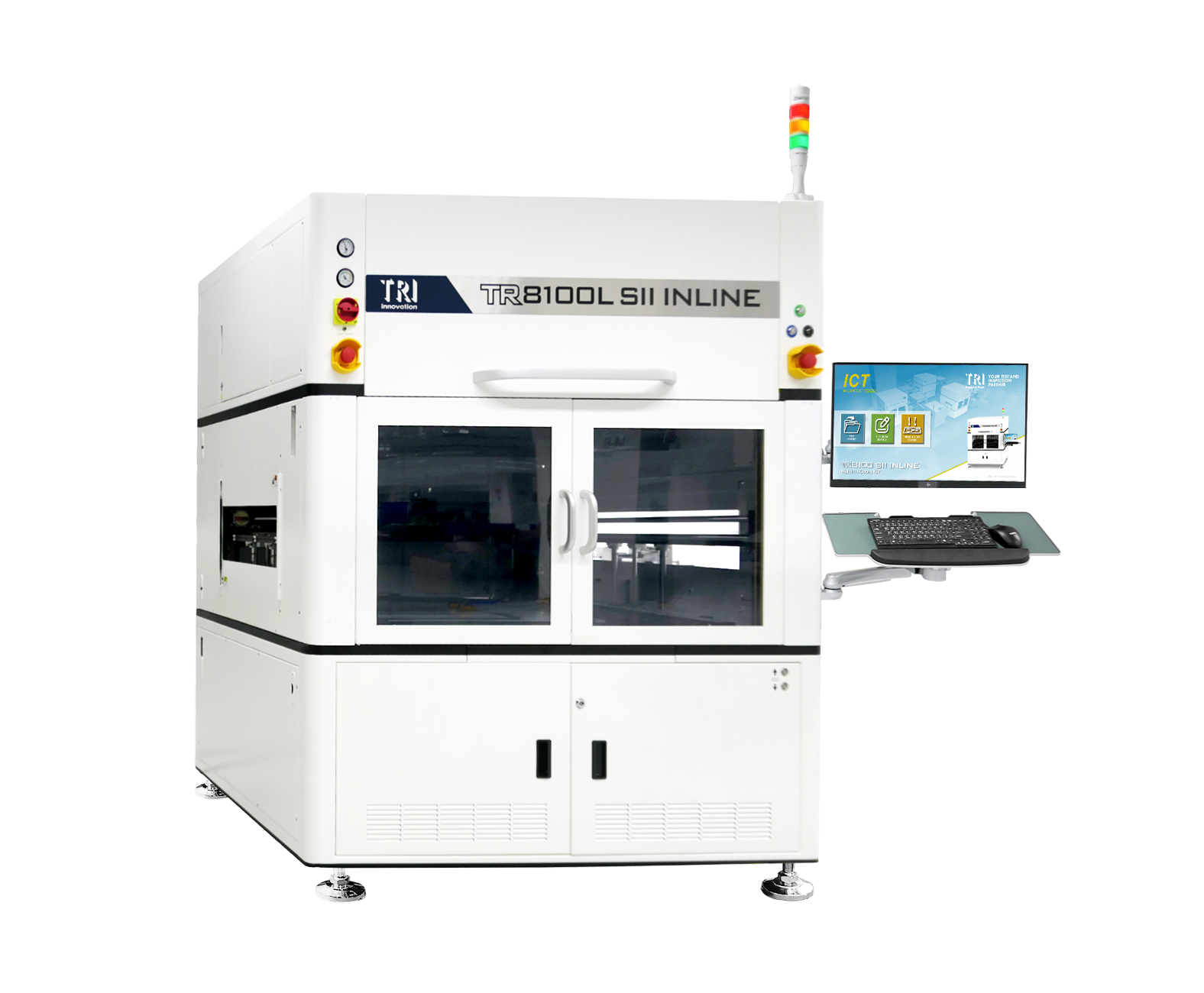

TR8100L SII INLINE
|
|
|
INTRODUCTION
TRI TR8100 SII INLINE 是一款高針點數在線型測試機 (ICT) 與功能測試機 (FCT)，專為滿足先進 AI 伺服器板日益增長的需求，以及電信電子製造業不斷演進的需要而設計。TR8100 SII 的真空治具系統可確保探針完整接觸，其高達 7,056 針點的數位無多工器 (MUX-free) 架構，讓大針點數元件的測試變得更快速、更簡單，並能加快程式開發速度。此在線型測試機 (ICT) 內建自我診斷功能，以確保長期的測試可靠性。TR8100 SII 廣泛的測試覆蓋率能減少生產缺陷並降低重工費用，還能無縫整合至現有的製造生態系統中，全面相容舊款的 TRI 模組、治具與測試程式，確保順暢導入而無需耗費高昂的更換或重新編程成本。
• 高針點數 ICT + FCT 解決方案，支援高達 7,056 個測試點
• 高故障覆蓋率與先進的測試能力
• 無多工（1:1）獨立每針腳架構
• 低電壓元件測試與極快的測試速度
• 適應各種電路板尺寸與測試需求，支援多項業界標準，包括 AI 伺服器、5G 和 AIoT 板
• 真空治具可確保快速且精準的電路板處理
• 符合人體工學與操作員友善的設計，便於治具除錯
• 內建自我診斷與透過DMM實現的自動校準功能
• 直觀的使用者介面，搭配流程化的簡易程式開發
Tester Specifications
|
Max. Test Points |
TR8100L SII INLINE: 3,584 Points. Optional: 7,056 Points
|
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Vacuum type |
|
Max. PCB Size |
TR8100L SII INLINE: 50 x 90 – 920 x 610 mm |
|
Max. PCB Weight |
8 kg. Optional: 15 kg |
|
Max. Component Height Clearance |
Top: 90 mm / Bottom: 30 mm / Edge: 3 mm. Optional: 5 mm
|
|
Conveyor Height |
900 – 970 mm |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT Power Supplies:
(1) Fixed: +5V@5A, +3.3V@5A, +12V@5A, +12V@1A
(2) Programmable: +0.2V~+20V@3A (2sets), -3V~-20V@3A (2 sets)
-
On-board Flash and EEPROM Memories.
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
(3) SPS5450 : 54Vmax/50Amax/2400Wmax per channel/1CH per rack
-
ToggleScan Test
-
VregTestTM: Multi-Phase PWM Individual Phase Frequency & Duty P/N Measurements
|
System Requirement
|
Power Requirement |
200 – 240 VAC, Single Phase, 50/60 Hz, 6 kVA.
|
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
|
Vacuum Requirement |
Min. -0.86 bar (-12.6 psi), Exhaust: 70 m3/h |
Dimensions
|
WxDxH |
TR8100L SII INLINE: 1550 x 1450 x 1870 mm |
|
Weight |
TR8100L SII INLINE: 1200 kg |
