3D 錫膏印刷自動光學檢測機 (SPI)

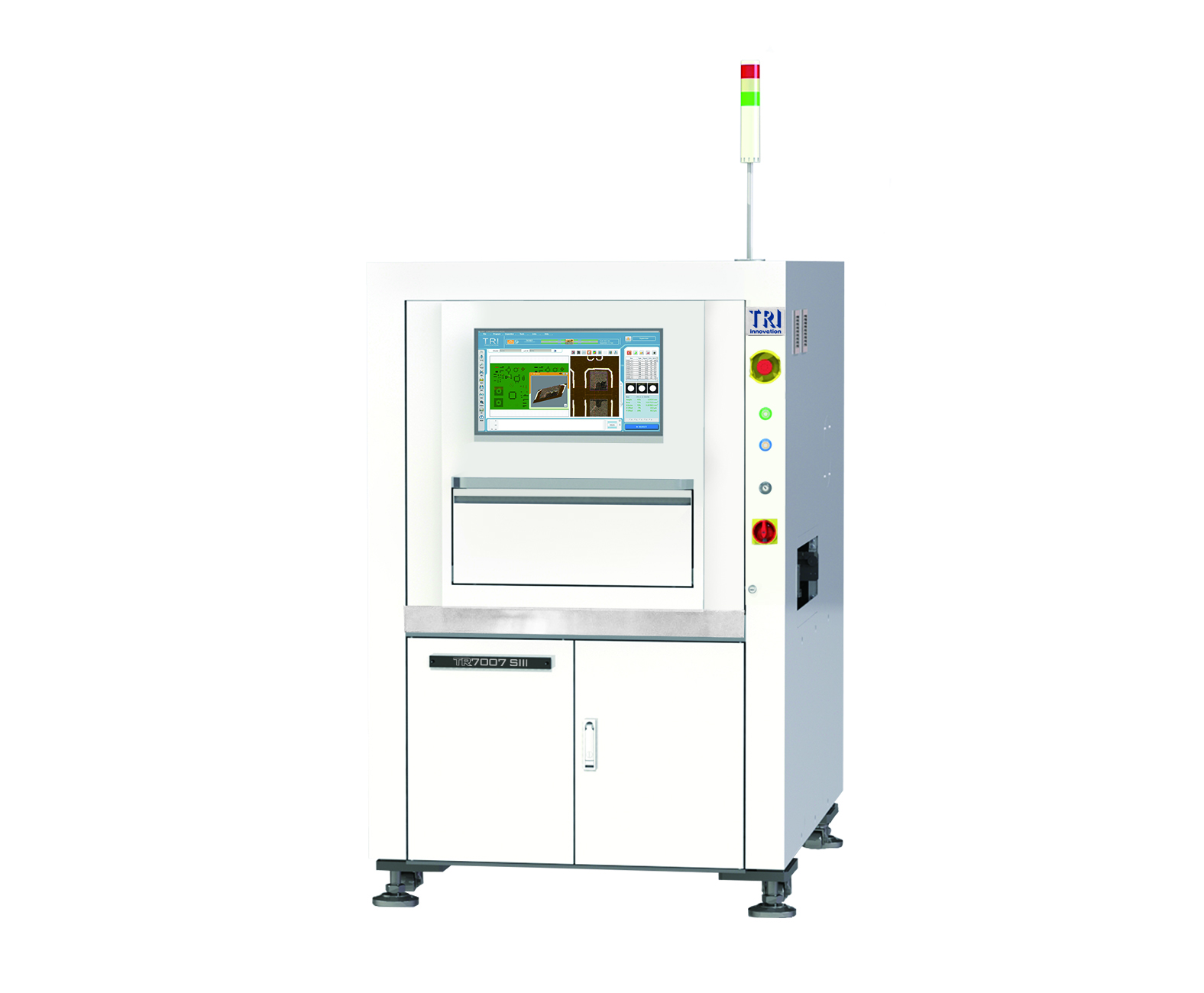

TR7007 SII Ultra

INTRODUCTION

TR7007 SII Ultra 的檢測速度在業界中處於領先地位，最高可達 180 cm²/sec，建立在強化的機械平臺上，可確保檢測過程中的穩定度、準確性和精確性。TR7007 SII Ultra 3D SPI 亦是一項工業4.0解決方案，可支援即將推出的創新協議，例如IPC Connected Factory Exchange（CFX）和IPC Hermes 9852標準。

• 業界領先的檢測速度，最高可達180 cm² / sec
• 透過TRI智能編程快速進行檢測
• 支援Closed Loop數據共享反饋和前饋功能
• 具有即時SPC趨勢的智能工廠解決方案

Optical System

Imaging Method	Dynamic Imaging
Camera	4 Mpix
Imaging Resolution	10 μm, 15 µm (factory setting)
Lighting	RGB LED
3D Technology	2-way Fringe Pattern
Field of View	4 Mpix@ 10 µm: 20 x 20 mm 4 Mpix@ 15 µm: 30 x 30 mm

Inspection Performance

Imaging Speed	4 Mpix@ 10 µm: 80 cm²/sec 4 Mpix@ 15 µm: 180 cm²/sec
Height Resolution	0.4 µm
Max. Solder Height	@ 10 µm: 420 µm @ 15 µm: 385 µm

Motion Table & Control

X-Axis Control	Linear motor + Linear Scale + EtherCAT Servo
Y-Axis Control	AC motor with ball screw + EtherCAT Servo
Z-Axis Control	AC motor with ball screw + EtherCAT Servo
X-Y Axis Resolution	0.5 µm
Z-Axis Resolution	1 µm

Board Handling

Max PCB Size	TR7007 SII Ultra: 510 x 460 mm TR7007 SII Ultra DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor Height	880 – 920 mm * SMEMA Compatible

Inspection Functions

Defects	Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging
Measurement	Height Area Volume Offset

Dimensions

WxDxH	TR7007 SII Ultra: 1100 x 1480 x 1600 TR7007 SII Ultra DL: 1100 x 1705 x 1600 mm Note: not including signal tower, signal tower height 512 mm
Weight	TR7007 SII Ultra: 740 kg TR7007 SII Ultra DL: 925 kg
