INTRODUCTION

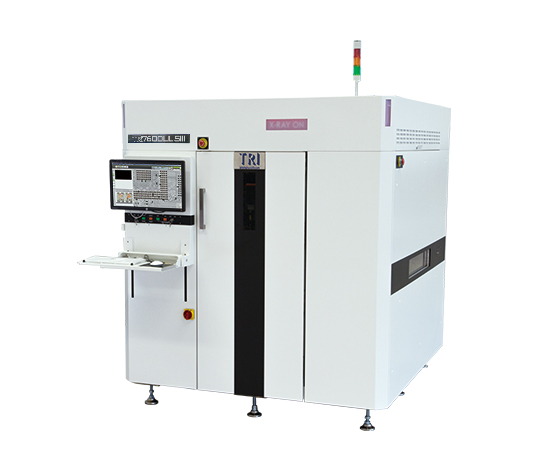

TR7600LL SIII CT AXI系列為TRI新一代具指標性的在線型PCBA檢測解決方案。為超大型電路板提供100%檢測覆蓋率而設計的TR7600LL SIII，擁有業界最快速的高解析取像性能，並在業界最先進的自動X光檢測中提供了優越的影像品質。
• 超高速3D CT X射線檢測
• 優越的影像品質
• 可檢測超大型電路板
• 高解析度可檢測小至01005in晶片
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors) |
| X-ray Source |
60 -130 kV |
| Imaging Resolution |
7 μm - 20 μm |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
1000 x 660 mm |
| PCB Thickness |
0.6 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 30 mm
@ 10 μm: 15 mm
@ 7 μm: 7 mm |
| Bottom Clearance |
70 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm. Optional: 940-965 mm
* SMEMA Compatible |
Inspection Functions
| Capabilities |
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity,
Rotation, Floating |
| Defects |
Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting,
Void, Lifted Lead |
Dimensions
| WxDxH |
1750 x 2140 x 1945 mm |
| Weight |
4500 kg |
| Power Requirement |
200 - 240 VAC three phase, 50/60 Hz, 7 kVA
(346-416 VAC optional three phase transformer) |
|
