自動光學檢測機 (AOI)

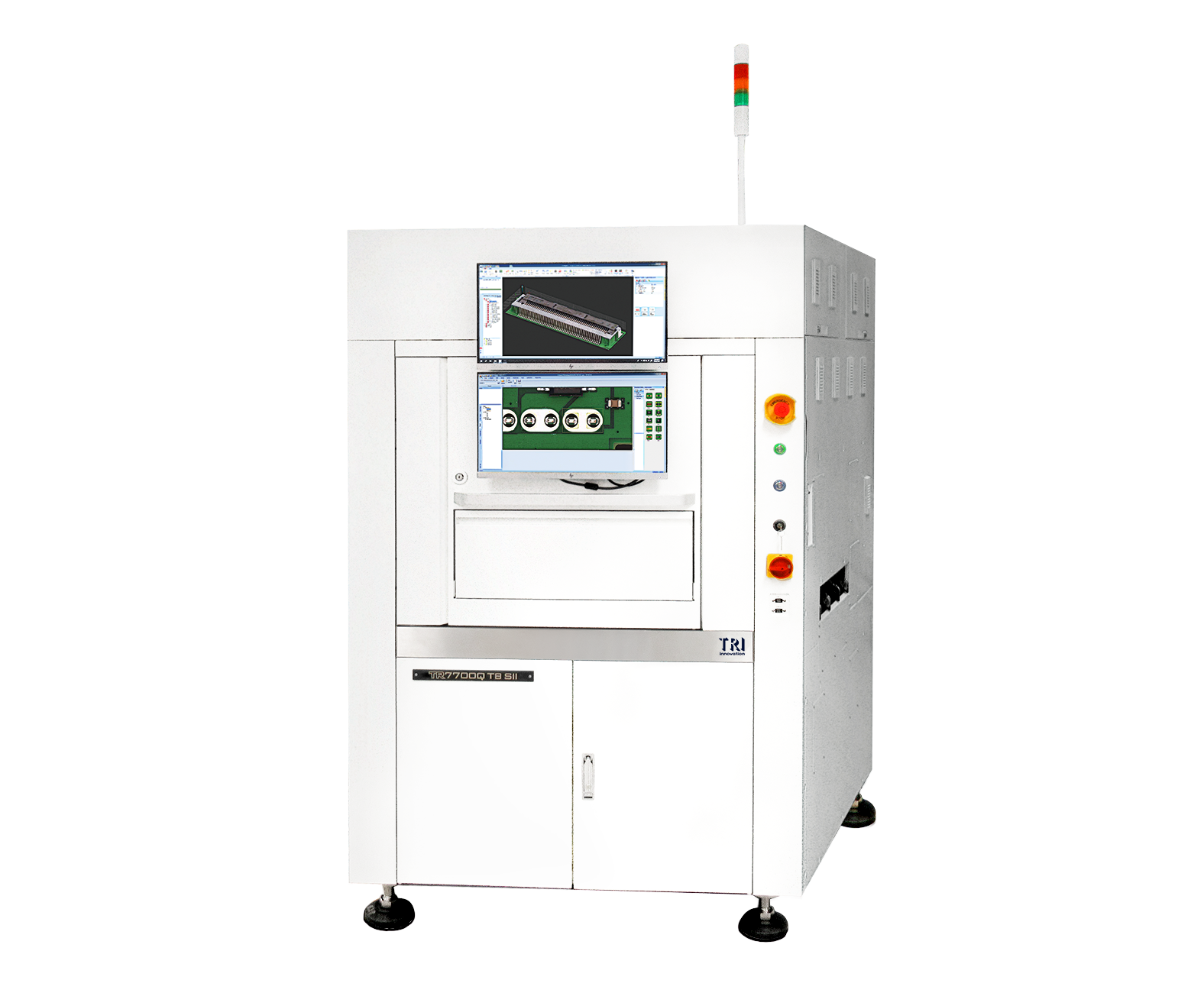

TR7700Q TB SII

INTRODUCTION

TR7700Q TB SII 提供 3D 上視與 2D 下視檢測，專為穿孔技術 (THT)、雙列直插封裝 (DiP) 及 SMD 缺陷的高覆蓋率檢測而設計。這款新發佈的自動光學檢測 (AOI) 設備配備了 TRI 創新的 AI 驅動演算法與計量級量測技術，可確保精準檢測。此智能工廠就緒的解決方案具備資料交換能力，簡化了 MES 串接，並支援目前的智能工廠標準，例如 IPC-CFX、IPC-DPMX 及 Hermes (IPC-HERMES-9852)。　

• 高速 3D 上視與 2D 下視 AOI，速度可達 57 cm²/sec
• 針對 THT/DIP 的高缺陷覆蓋率檢測
• 具備智能編程的 AI 驅動演算
• 計量級檢測，實現精準測量
• 符合工業 4.0 標準

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera (3D)*	12 Mpix. Resolution: 10 µm, 15 µm
Bottom Camera (2D)*	6.5 Mpix. Resolution: 10 µm, 12.5 µm
3D Technology	Top: Quad Digital Fringe Projectors. Bottom: N/A
Max. 3D Height Range	40 mm
Lighting	Multi-phase True Color LED

Imaging Performance

Max. Imaging Speed

57 cm²/sec

Motion Table & Control**

X Axis Control	Ballscrew + AC Servo with Motion Controller
Y Axis Control	Ballscrew + AC Servo with Motion Controller
Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution	1 µm

Board Handling

Max. PCB Size	510 x 510 mm
PCB Thickness	0.5-6 mm
Max. PCB Weight	3 kg. Optional: 5kg
Top Clearance	50mm
Bottom Clearance	40 mm
Conveyor	Inline Height: 880-920 mm. Optional: 940-965 mm Note: SMEMA Compatible

Inspection Functions

Component Defects	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective, Upside Down Extra Component Foreign Material Lifted Component
THT Defects	Missing Position Soldering Defects Pinhole Blowhole Pin Height Pin Angle Pin Offset Bridging Wetting
Solder Joint Defects	Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/ Contamination

Dimensions

WxDxH	1200 x 2020 x 2000 mm Note: not including signal tower, signal tower height 488 mm
Weight	1720 kg
* Choose between Configuration 1: Top 12 MP 10 μm Bottom 6.5 M 10 μm or Configuration 2: Top 12 MP 15 μm Bottom 6.5 MP 12.5 μm. ** Optional: Z-Axis for Bottom-up; Linear Encoder Module; Dual Ball Screw + Servo Motor
