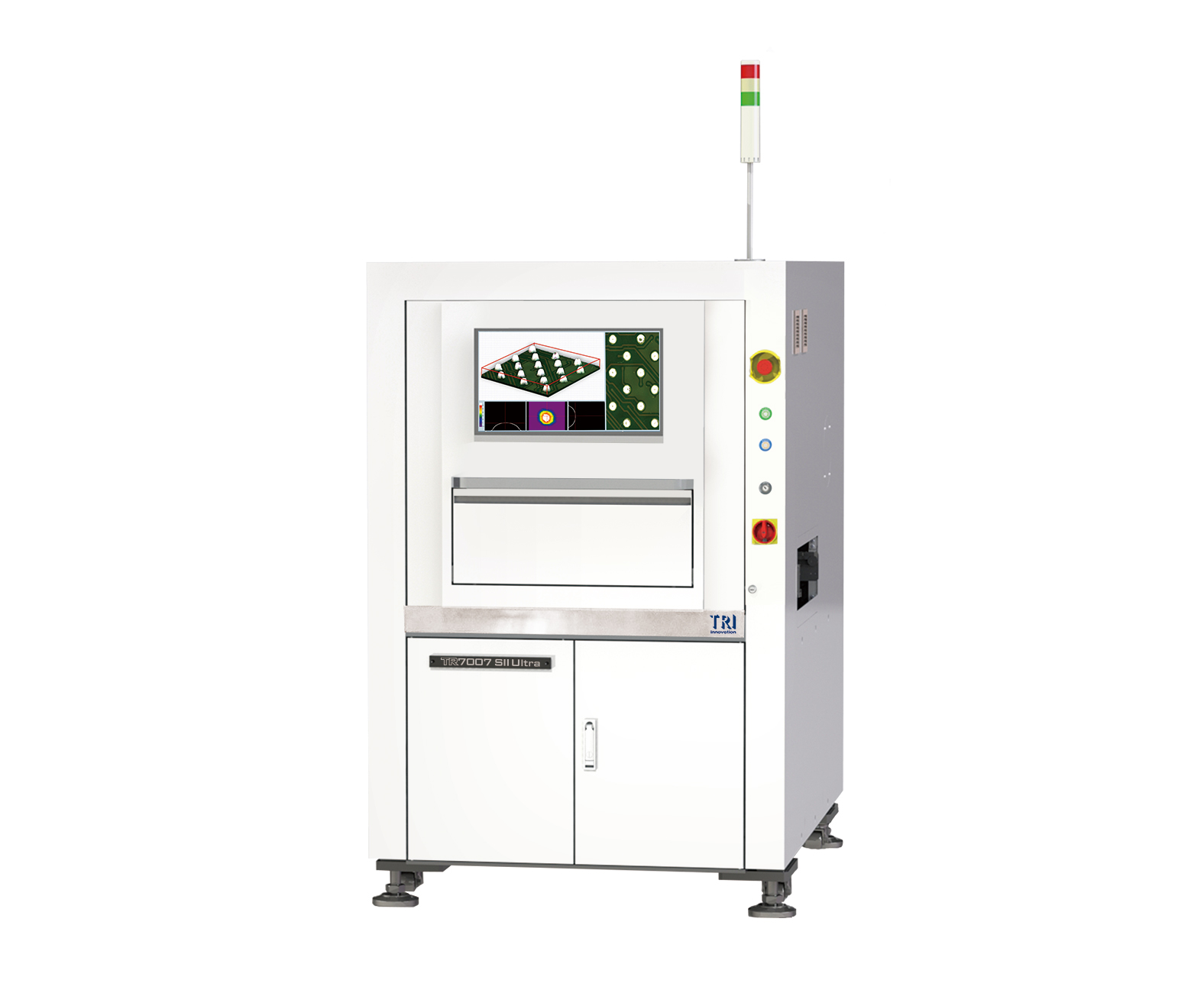

TR7007 SII Ultra

INTRODUCTION

TR7007 SII Ultra 是設計專用於 SEMI 後段製程錫膏檢測的最新 6 μm 高解析度平台。此款 3D SEMI SPI 具備用於例如錫點間距錫膏量測的計量功能並配備寬光譜光源，可增強對比度並提高缺陷檢測率。此外TR7007 SII Ultra 還是一款符合工業 4.0解決方案，可支援閉環反饋/前饋、IPC-CFX 和 IPC Hermes 9852 標準。

應用領域：凸塊、助焊劑、膠水、錫膏、表面

• 高速 SEMI 後段製程檢測，速度高達 74 cm²/sec
• 透過 TRI SPI 計量功能實現精確的錫膏量測
• 寬光譜光源，可增強對比度並提高缺陷檢測率
• 透過 TRI 智能編程，可在數分鐘內完成檢測就緒
• 支援閉環控制反饋與前饋功能
• 即時 SPC 趨勢智能工廠解決方案

Optical System

Imaging Method	Dynamic Scan
Top Camera	4 Mpix
Imaging Resolution	6 µm / 10 µm
Lighting	Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting

Imaging Performance

Max. Imaging Speed

6 μm: 25 cm²/sec ; 10 μm: 74 cm²/sec

Motion Table & Control

X-Axis Control	Linear motor + Linear Scale + EtherCAT Servo
Y-Z Axis Resolution	AC motor with ball screw + EtherCAT Servo
X-Y Axis Resolution	0.5 µm
Z Axis Resolution	1 µm

Board Handling

Max. PCB Size	TR7007 SII Ultra: 510 x 460 mm TR7007 SII Ultra DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.5-6 mm
Max. PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Applications	Bare Board Bumps Flux Mini-LED Solder Solder Paste
Defects Detected	Insufficient Paste Excessive Paste Shape Deformity Missing Paste Bridging
Measurement	Height Area Volume Offset

Dimensions

WxDxH	TR7007 SII Ultra: 1100 x 1560 x 1710 mm TR7007 SII Ultra DL: 1100 x 1860 x 1710 mm Note: not including signal tower, signal tower height 395 mm
Weight	TR7007 SII Ultra: 740 kg TR7007 SII Ultra DL: 925 kg
