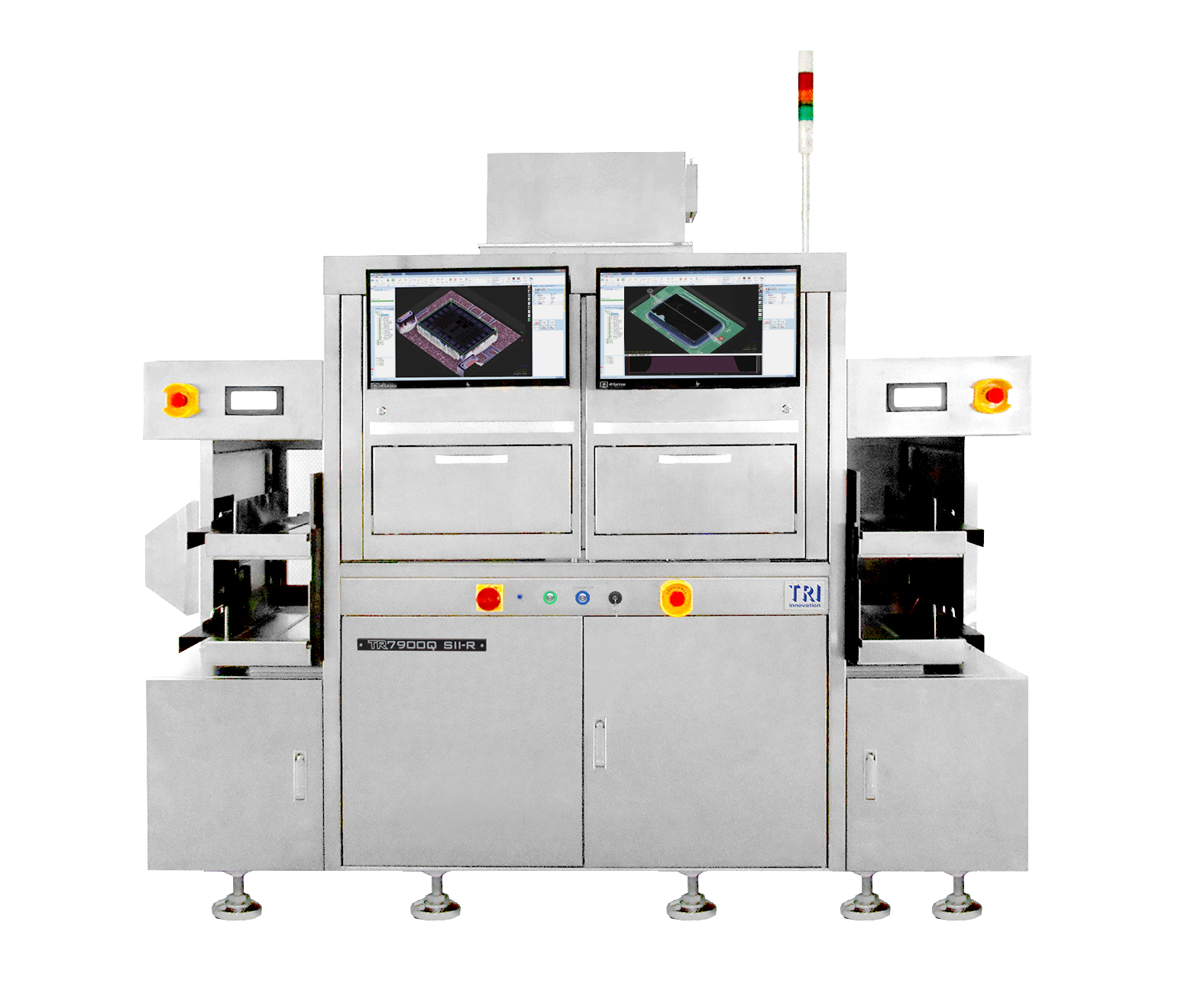

TR7900Q SII-R

INTRODUCTION

3D SEMI AOI TR7900Q SII-R 是半導體與先進封裝業的 3D 自動檢測複判站，完善整合裝載/卸載模組，以簡化基板和彈匣的輸送。 2.5 μm 高解析智能工廠解決方案TR7900Q SII-R可以檢測黏晶、球形接合、帶狀接合、楔形接合、銀膠、SiP、填充膠、SMD、凸塊和錫點，且能夠檢測高達15 μm (0.6 mil)的線徑。

• 打線接合與黏晶高級封裝缺陷檢測
• 複判識別標記模組
• 2.5 μm 量測等級*技術高解析度 3D AOI
• 內建彈匣裝載/卸載輸送裝置
• 打線檢測 AI演算法技術支持*
• 可檢測小至 15 μm 的金/鋁/銀/銅線
• 接合檢測：球形接合、楔形接合、帶狀接合
• 短波紅外 (SWIR) 照明檢測內部裂縫和碎裂*
• 無塵環境等級 100 - ISO 等級 5 (ISO 14644-1)

*選配項目

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	25 Mpix
Imaging Resolution	2.5 µm
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Height Range	600 μm

Defect Marking Method

Marking Method

Ink Printer. Optional: Ink Pen

Motion Table & Control

X Axis Control	Linear Motor
Y Axis Control	Dual Linear Motor
X-Y Axis Resolution	0.1 µm

Board Handling

Max. Stack Magazine Qty.	3 Magazines (based on Magazine width 125 mm)
Magazine Dimension	Width: 50 - 175 mm Length: 120 - 320 mm Height: 80 - 160 mm
Strip Dimension	Width: 35 - 180 mm Length: 100 - 300 mm Thickness: 0.1 - 1.5 mm
Max. Strip Weight	0.4 kg
Strip Carrier / Fixing	Gripper Conveyor
Top Clearance	15 mm
Bottom Clearance	6 mm
Edge Clearance	3 mm

Inspection Functions

Die Bonding	Missing Orientation Rotation Shift Tilted Chipping Crack Scratch Foreign Material Bond line thickness Epoxy on Die Epoxy Coverage Epoxy Height
Wire Bonding	Broken Short Sweep/Sink Missing Sway Collapse Loop Height Sagged Wire Cross Wire Gap Wire Tracing Ball Bond Diameter Ball Placement Stitch Width Stitch Coverage over Ball Ball-off Pad Ball touch Pad Distance Clubbed Ball Ball Thickness Lifted Ball Low Landing Bond on Contamination Foreign Material
Bonding Area/Pad	Copper Protrusion Crack Chipping Exposed Copper Exposed Nickel Target Material Scratches or Brush Marks Oxidation Foreign Material

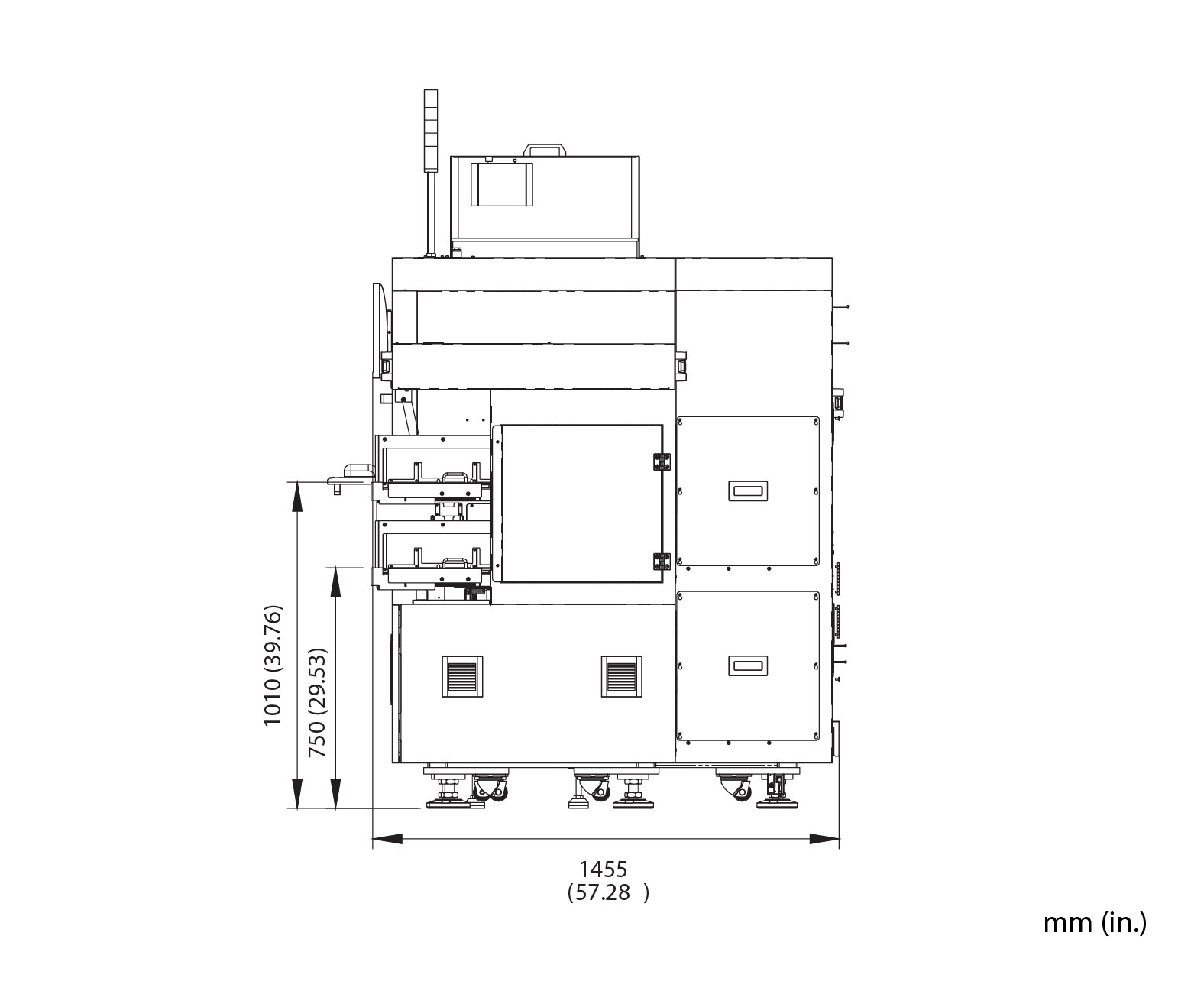

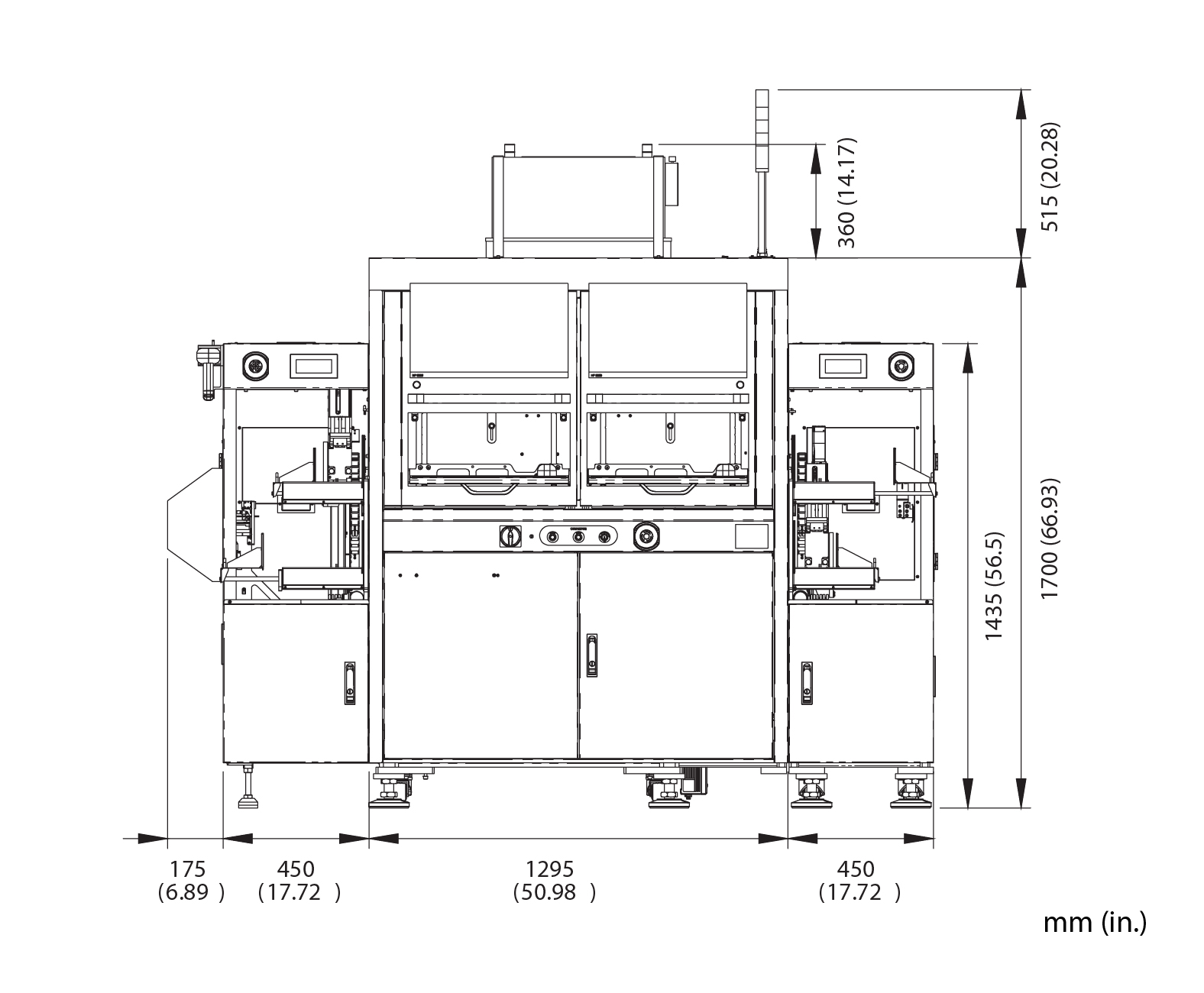

Dimensions

WxDxH	2370 x 1455 x 1700 mm Note: not including signal tower, signal tower height 515 mm
Weight	1120 kg. With Auto Load/Unload Module: 1280 kg
