產品介紹

半導體檢測機 (SEMI)

TR7720S

INTRODUCTION

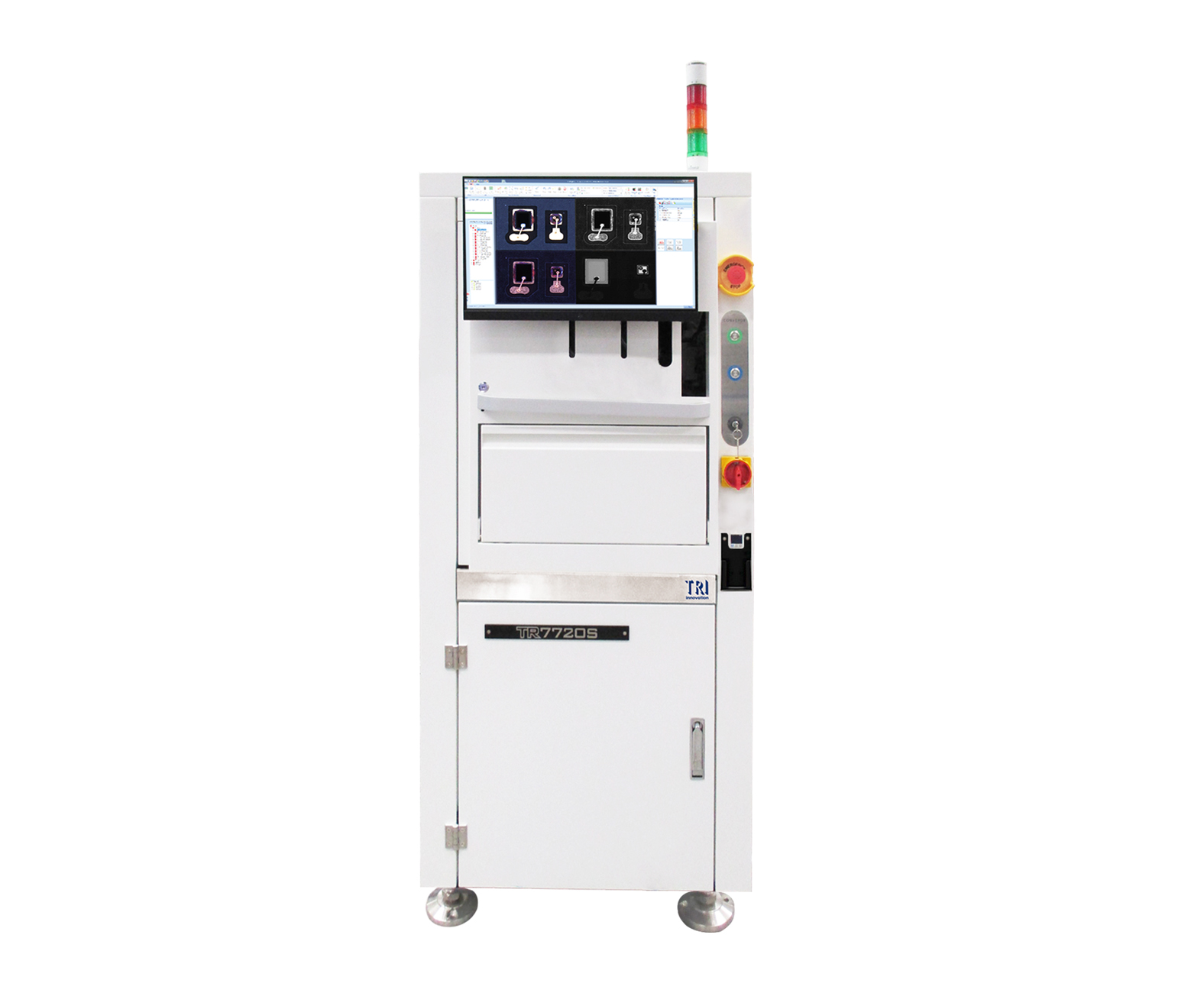

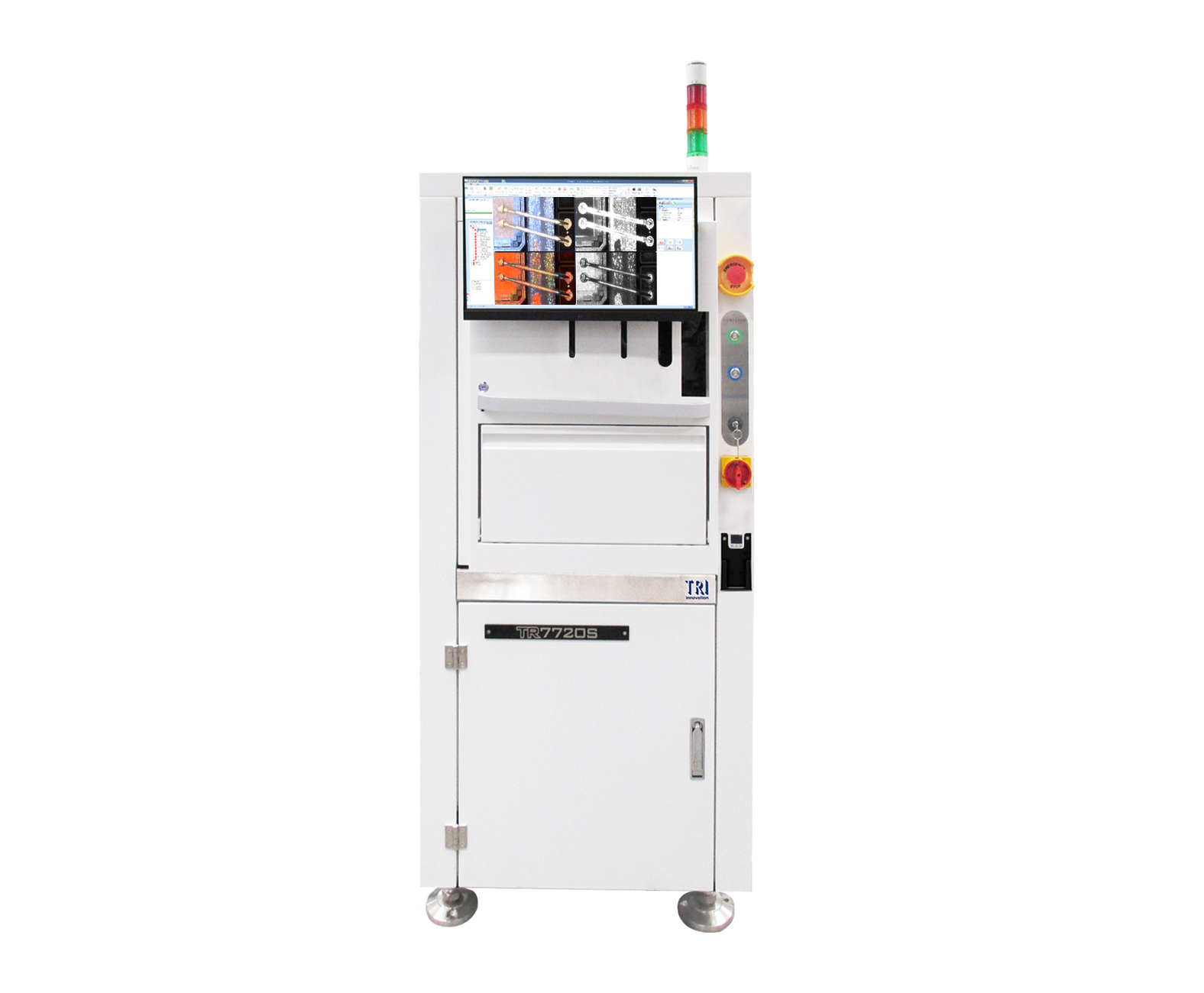

TR7720S是一款專為半導體與封裝行業設計的小型AI驅動 AOI，可用於檢測打線接合、黏晶、SMD和錫點。5.5 μm高解析度解決方案TR7720S擁有先進測量技術和強化的機械結構，可提供精確和準確的檢測結果，能夠檢測高達50 μm（2mil）的線徑。

• 打線接合與黏晶高級封裝缺陷檢測
• 5.5 μm 高解析度小型 AOI
• 打線缺陷檢測人工智能檢測演算法*
• 提升數據可追溯性的量測等級*技術
• 可檢測小至 50 μm 的金/鋁/銀/銅線
• 接合檢測：球形接合、楔形接合、帶狀接合
• 智能工廠即時 SPC 趨勢追蹤

*選配項目

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	12 Mpix
Imaging Resolution	5.5 µm
Lighting	Multi-phase True Color LED, Coaxial Lighting

Imaging Performance

Max. Imaging Speed

10.3 cm²/sec

Motion Table & Control

X-Y-Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution	1 µm

Board Handling

Max. PCB Size	310 x 250 mm
PCB Thickness	0.1-5 mm
Max. PCB Weight	1 kg
Top Clearance	25 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Die Bonding	Missing Orientation Shift Rotation Chipping Crack Scratch Foreign Material Epoxy on Die Epoxy Coverage
Molding / Underfill Materials (EMC, CUF, NCP, NCF, MUF)	Area coverage Shapes/Dimensions Surface Void Damage Crack Scratches Delamination Contamination Surface particles
Bonding Area/Pad	Copper Protrusion Crack Chipping Exposed Copper Exposed Nickel Target Material Scratches or Brush Marks Oxidation Foreign Material

Dimensions

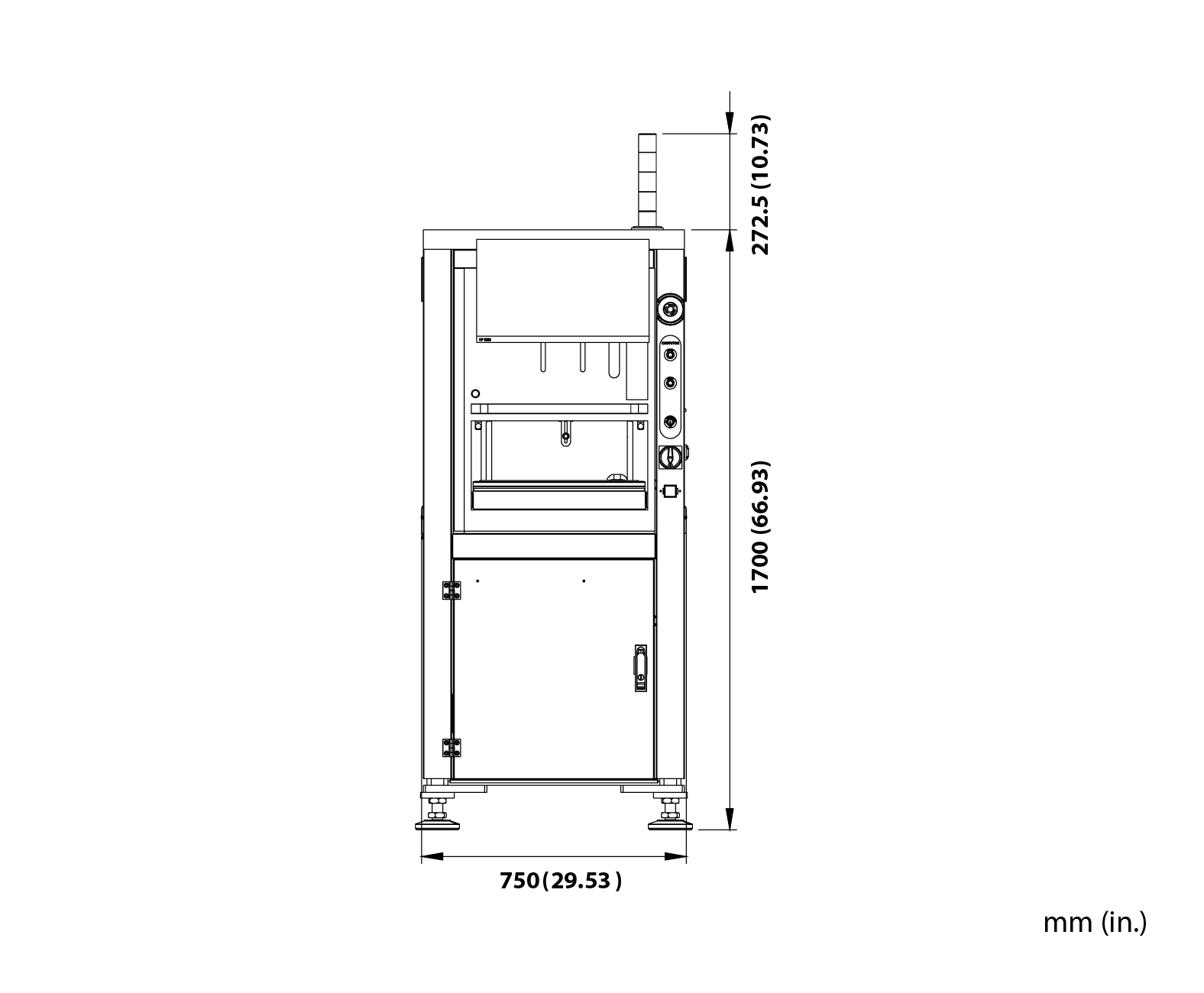

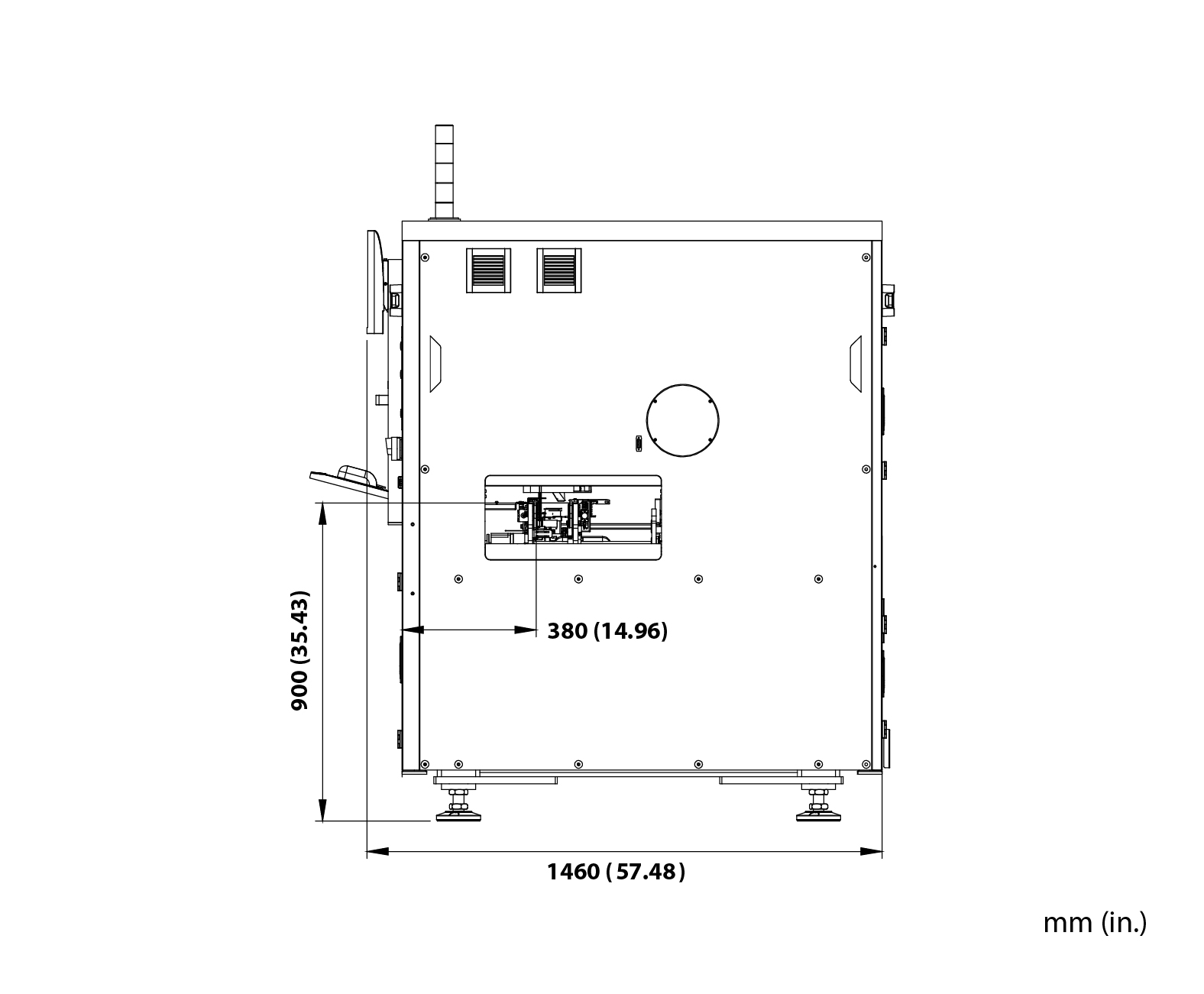

WxDxH	750 x 1460 x 1700 mm Note: not including signal tower, signal tower height 272.5 mm
Weight	710 kg
