3D 錫膏印刷自動光學檢測機 (SPI)

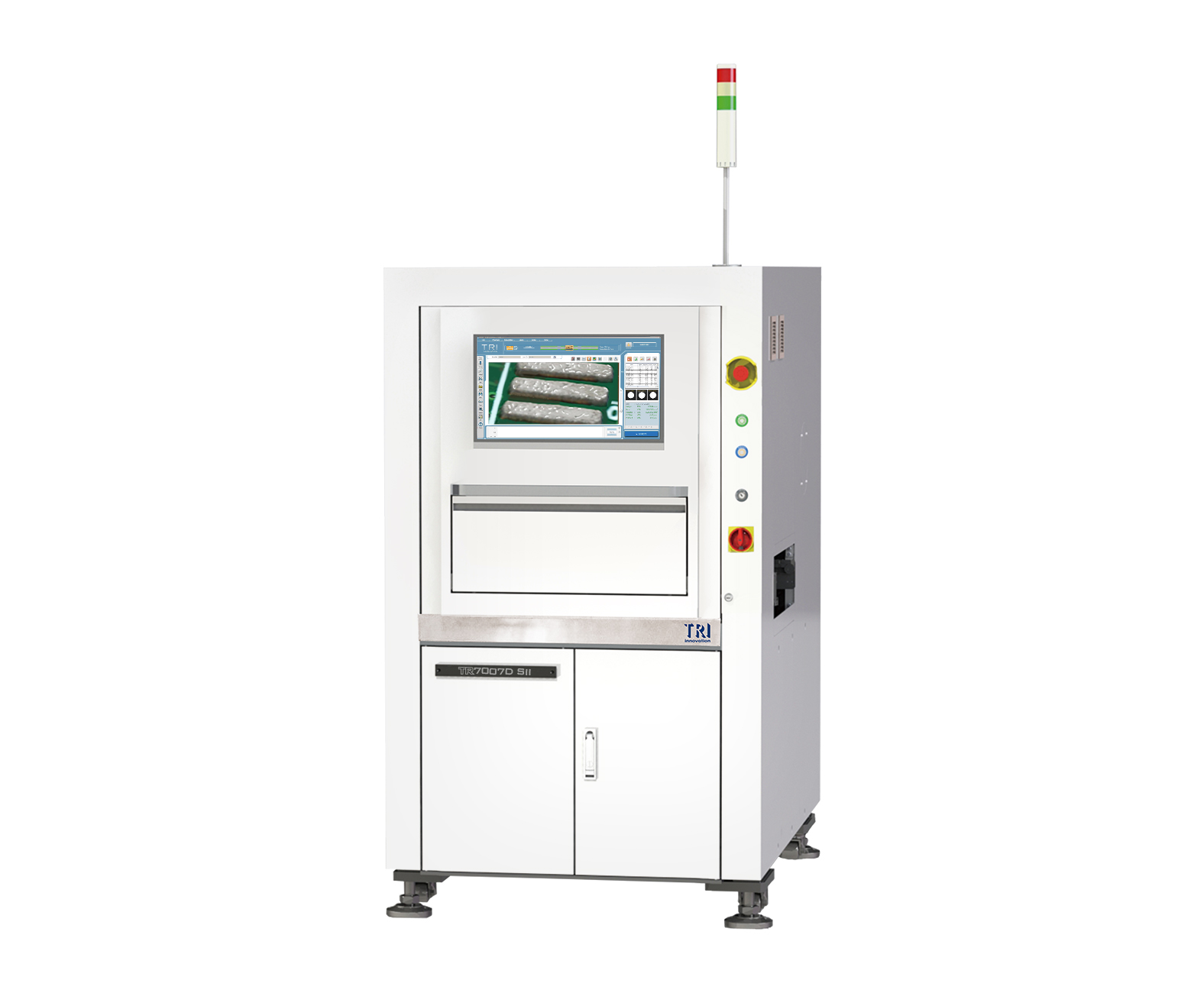

TR7007D SII

INTRODUCTION

TR7007D SII 是一款頂尖的 3D SPI系統，專為提升您的生產流程而設計。憑藉其高速平台，此 3D SPI 的檢測速度比以往機型快達 50%，可確保最佳效率。體驗更出色的精確度與穩定性，實現精密錫膏量測並將誤報率降至最低。TR7007D SII 配備寬光譜光源系統與同軸光源（選配），可增強對比度與檢出率，讓您能以卓越的清晰度捕捉複雜細節。此 3D SPI 為工業 4.0 完備解決方案，支援即將推出的創新協定，例如 IPC-CFX 與 IPC Hermes 9852 標準。　　　

• 寬光譜光源，提升對比度與檢出率
• 提升精確度與穩定性，實現精準的錫膏量測
• 全新運動控制器 EtherCAT，實現即時量測
• 100% 無陰影雙向數位條紋投影
• 智能板彎補償功能，消除局部 PCB 變形
• 具備即時 SPC 趨勢的智慧工廠解決方案
• 支援閉環 (Closed Loop) 控制：具備反饋與前饋功能

Optical System

Imaging Method	Stop-and-Go Imaging
Camera	21 Mpix or 25 Mpix (factory setting)
Imaging Resolution	9.8 μm, 10 μm, 12 μm,15 μm (factory setting)
Lighting	Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting
3D Technology	2-way Digital Fringe Pattern
Field of View	9.8 μm: 50.30 x 40.24 mm 10 μm: 51.2 x 51.2 mm 12 μm: 62.97 x 50.38 mm 15 μm: 76.8 x 61.4 mm

Inspection Performance

Imaging Speed	2.3 FOV/sec
Height Resolution	9.8 μm: 0.4 μm 10 μm: 0.45 μm 12 μm: 0.45 μm 15 μm: 0.454 μm
Max. Solder Height	9.8 μm: 420 μm 10 μm: 420 μm 12 μm: 420 μm 15 μm: 470 μm * on Calibration Target

Motion Table & Control

X-Axis Control	Ballscrew + AC Servo with EtherCAT Motion Controller
Y-Axis Control	Ballscrew + AC Servo with EtherCAT Motion Controller
Z-Axis Control	Ballscrew + AC Servo with EtherCAT Motion Controller
X-Y Axis Resolution	0.1 μm
Z-Axis Resolution	0.1 μm

Board Handling

Max PCB Size	TR7007D SII: 510 x 460 mm TR7007MD SII: 660 x 610 mm. Optional: 660 x 690 mm TR7007D SII: DL: 510x310 mm x 2 Lanes, 510x590 mm x 1 Lane TR7007LD SII: 765 x 610 mm
PCB Thickness	0.5-6 mm
Max PCB Weight	TR7007MD SII / TR7007D SII (DL): 3 kg. Optional: 5 kg TR7007LD SII: 3 kg. Optional: 5 kg / 12 kg
Top Clearance	TR7007D SII (DL): 25 mm, TR7007MD SII / TR7007LD SII: 50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor Height	880 – 920 mm. Optional: 940-965 mm * SMEMA Compatible

Inspection Functions

Defects	Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging
Measurement	Height Area Volume Offset

Dimensions

WxDxH	TR7007D SII: 1000 x 1480 x 1710 mm TR7007MD SII: 1250 x 1740 x 1710 mm TR7007D SII DL: 1000 x 1750 x 1710 mm TR7007LD SII: 1365 x 1720 x 1710 mm Note: not including signal tower
Weight	TR7007D SII: 795 kg TR7007MD SII: 992 kg TR7007D SII DL: 840 kg TR7007LD SII: 1025 kg
