INTRODUCTION

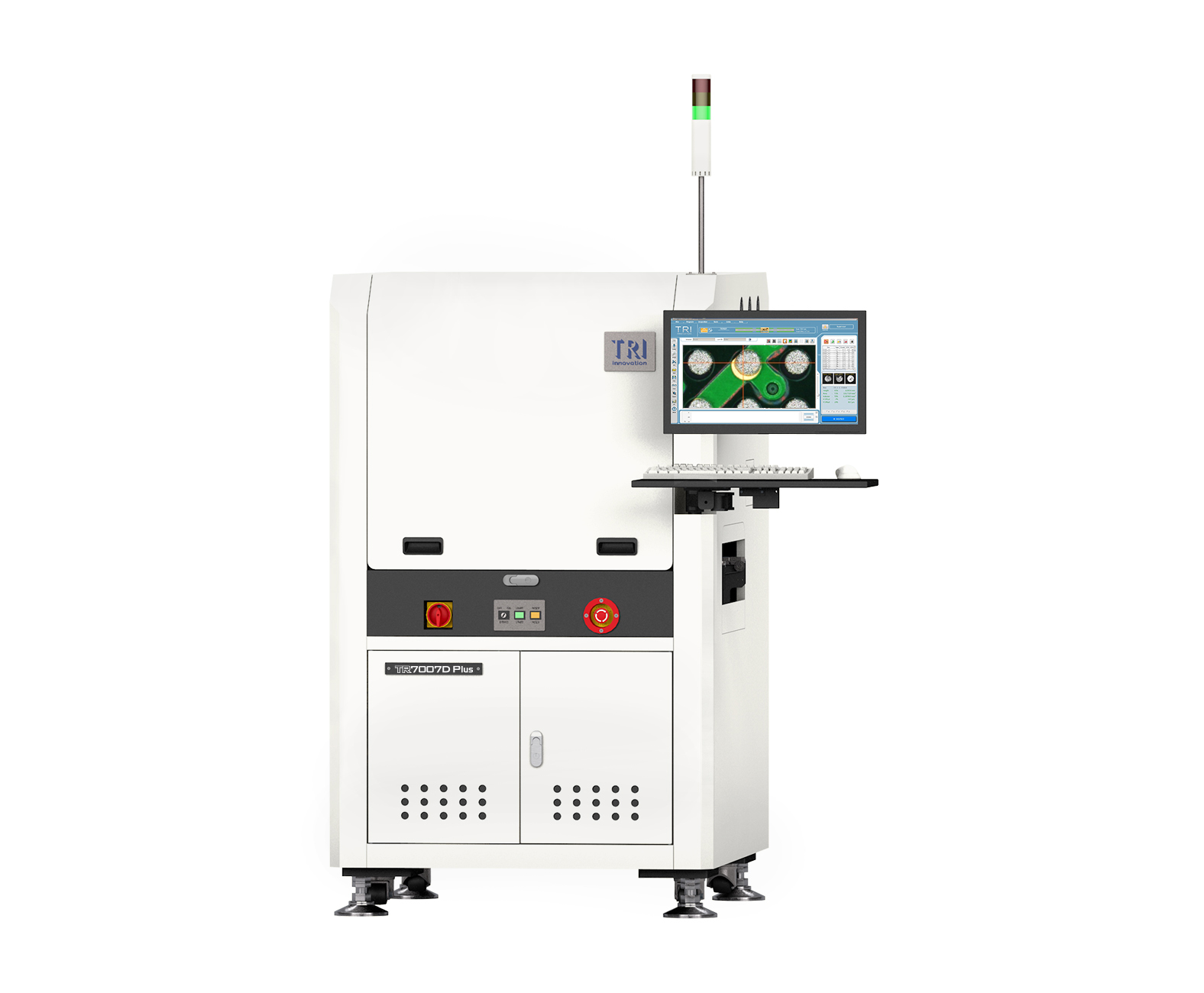

TR7007D Plus 3D SPI平台配備了優化的運動控制系統(EtherCAT)和高階的2D照明模組,可以準確地檢測低錫橋缺陷及進行板彎補償以消除PCB製程誤差。 TR7007D Plus具有2組數位條紋光投影,以確保進行無陰影檢測。 SPI解決方案簡化了生產線和MES之間的數據交換流程,實現生產線連接數據的可追溯性。
• 強化2D光源,提供更佳的檢測一致性
• 即時量測新型運動控制系統EtherCAT
• SPC數據即時追蹤智能工廠解決方案
• 閉環(Closed Loop)反饋和前饋功能
Optical System
Imaging Method |
Stop-and-Go Imaging |
Camera |
4 Mpix or 12 Mpix (factory setting) |
Imaging Resolution |
5.5 μm, 6 μm, 10 μm , 15 µm (factory setting) |
Lighting |
Enhanced 2D Lights (RGB+W) |
3D Technology |
2-way Digital Fringe Pattern |
Field of View |
4 MP Camera Link- @ 10 μm: 20.3x20.3 mm @ 15 μm: 30.5x30.5 mm
12 MP Camera Link- @ 5.5 μm: 22.5x16.5 mm @ 10 μm: 40.6x30.7 mm @ 15 μm: 61x46 mm
12 MP CoaXPress- @ 6 μm: 24.3x18.4 mm @ 10 μm: 40.6x30.7 mm @ 15 μm: 61x46 mm |
Inspection Performance
Imaging Speed |
4 MP Camera Link: Up to 3 FOV/sec 12 MP Camera Link: Up to 1.8 FOV/sec 12 MP CoaXPress: Up to 2.6 FOV/sec |
Height Resolution |
@10 μm/15 μm: 0.45 μm @5.5 μm/6 μm: 0.22 μm |
Max. Solder Height |
@10 μm/15 μm: 420 μm/750 μm @5.5 μm/6 μm: 210 μm/310 μm
* on Calibration Target |
Motion Table & Control
X-Axis Control |
Ballscrew + EtherCAT motion controller |
Y-Axis Control |
Ballscrew + EtherCAT motion controller |
Z-Axis Control |
Ballscrew + EtherCAT motion controller |
X-Y Axis Resolution |
0.5 μm |
Z-Axis Resolution |
1 µm |
Board Handling
Max PCB Size |
TR7007D Plus:@5.5 μm, 6 μm - 400 x 330 mm, @10 & 15 μm - 510 x 460 mm TR7007D Plus DL:@10 μm, 15 μm - 510x310 mm x 2 Lanes, 510x590 mm x 1 Lane TR7007LD Plus:@6 μm, 10 μm, 15 μm - 765 x 610 mm |
PCB Thickness |
0.6 - 5mm |
Max PCB Weight |
3kg. Optional: 5kg |
Top Clearance |
@5.5 μm, 6 μm: 25 mm; @10 μm, 15 μm: 50 mm |
Bottom Clearance |
40 mm |
Edge Clearance |
3 mm |
Conveyor Height |
880 – 920 mm
* SMEMA Compatible
|
Inspection Functions
Defects |
Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging |
Measurement |
Height Area Volume Offset |
Dimensions
WxDxH |
TR7007D Plus: 1000 x 1400 x 1650 mm TR7007D Plus DL: 1000 x 1500 x 1650 mm TR7007LD Plus: 1365 x 1720 x 1710 mm
Note: not including signal tower, signal tower height 515 mm |
Weight |
TR7007D Plus: 775 kg TR7007D Plus DL: 825 kg TR7007LD Plus: 982 kg |
