自動光學檢測機 (AOI)

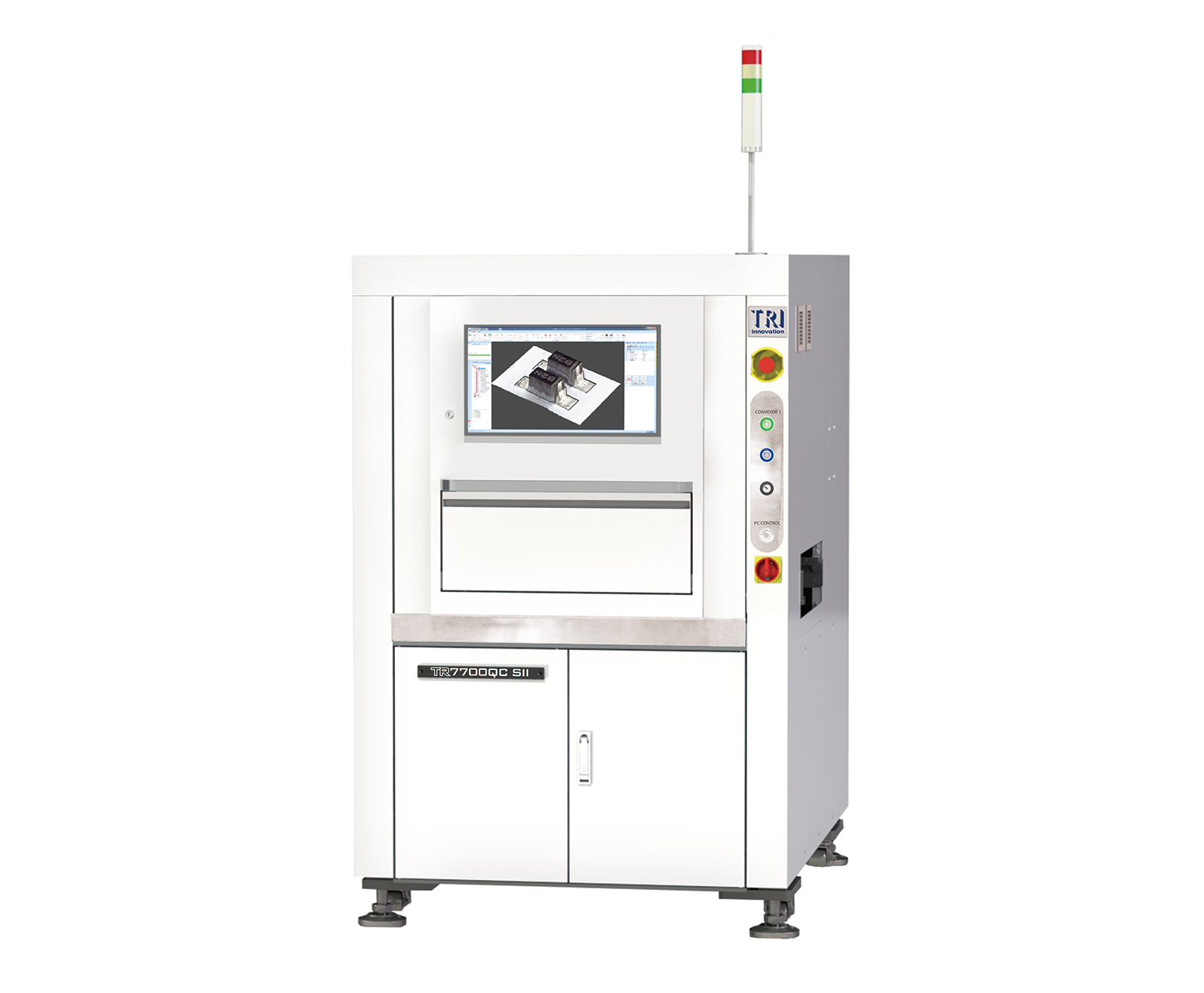

TR7700QC SII 3D AOI 配備了多種電子製造產業應用所需的關鍵檢測功能。該 3D AOI 具備易於設定的人性化程式編輯介面、靈活的 IPC-610 檢測演算法，並符合最新的智能工廠標準。　

• 具備電子零件與錫點檢測核心功能的 3D AOI
• 使用者友善的程式編寫與符合 IPC-610 的彈性演算法
• 業界領先的檢測速度，最高可達 57 cm²/sec
• 高零件檢測能力，3D 量測高度可達 40 mm
• 智慧工廠相容解決方案

Defects
Measurement

WxDxH
Weight

Imaging Method	Stop-and-Go
Top Camera	12 MP High Speed Camera
Angle Camera	N/A
Imaging Resolution	10 µm, 12 µm, 15 µm (factory setting)
Lighting	Multi-phase True Color LED
3D Technology	Quad Digital Fringe Projectors
Max. 3D Range	40 mm

Imaging Speed

@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec

X-Axis Control	Ballscrew + AC Servo with Motion Controller
Y-Axis Control	Ballscrew + AC Servo with Motion Controller
Z-Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 μm

Max PCB Size	TR7700QC SII: 510 x 460 mm TR7700MQC SII: 660 x 690 mm TR7700L QC SII: 765 x 610 mm* TR7700QC SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane *Extra Large 2,000 x 610 mm max. PCB size available by customization and multi-stage mode (Memory Upgrade as Needed)
PCB Thickness	0.6-5 mm
Max PCB Weight	TR7700QC SII: 3 kg. Optional: 5kg TR7700MQC SII: 3 kg. Optional: 5kg TR7700L QC SII: 3 kg. Optional: 5 kg / 12 kg TR7700QC SII DL: 3 kg. Optional: 5kg
Top Clearance	50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * Optional: 940-965 mm (SMEMA compatible)

Component	Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
Solder	Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination

WxDxH	TR7700QC SII: 1100 x 1720 x 1710 mm TR7700MQC SII: 1250 x 1740 x 1710 mm TR7700L QC SII: 1365 x 1720 x 1710 mm TR7700QC SII DL: 1100 x 1820 x 1710 mm Note: not including signal tower, signal tower height 515 mm
Weight	TR7700QC SII: 910 kg TR7700MQC SII: 992 kg TR7700L QC SII: 1025 kg TR7700QC SII DL: 960 kg
