INTRODUCTION

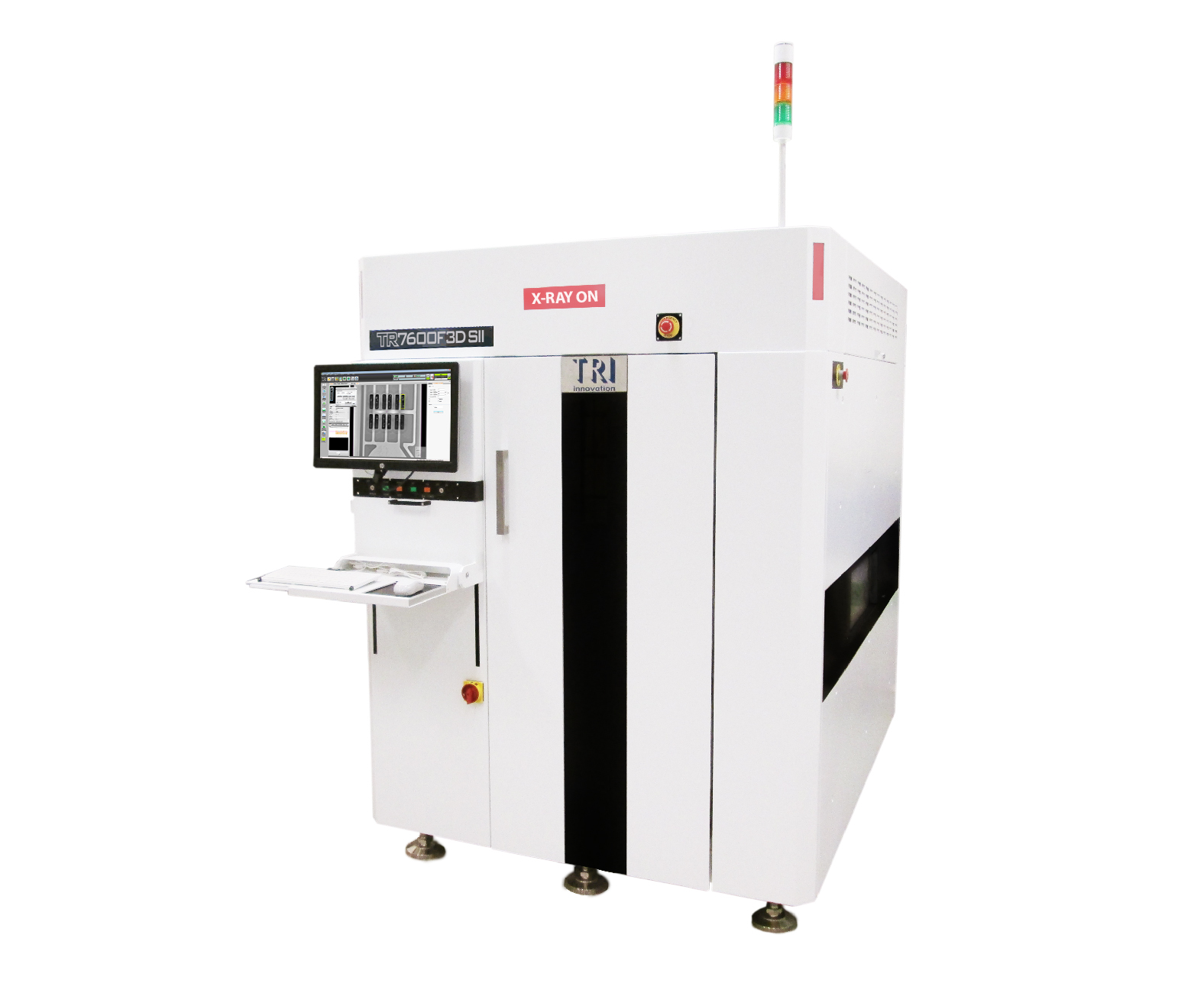

新一代的高速在線型TR7600F3D SII自動X射線檢測解決方案,檢測速度比上一代產品可快達兩倍至三倍,可檢測最大至900mm x 460mm的大型電路板;在不影響生產線生產時間的情況下,可同時降低漏測和誤判率。
• 5 µm 高精準全面缺陷檢測
• 新一代機械設計提供更快的速度,最高可達10 FOV/s
• 方便整合於智能工廠的MES串接
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Flat Panel Detector
X-ray Source
130 kV Max (User Adjustable)
Imaging Resolution
5 μm ,10 μm, 15 μm, 20 μm, 25 μm, 30 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (Optional)
Motion Table & Control
X-Axis Control
High-Precision Ballscrew + AC-Servo Controller
Y-Axis Control
High-Precision Ballscrew + AC-Servo Controller
Z-Axis Control
High-Precision Ballscrew + AC-Servo Controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
TR7600F3D SII: 900 x 460 mm TR7600F3D LL SII: 1000 x 660 mm Note: The Max. PCB Size will vary depending on the angle of incidence
PCB Thickness
TR7600F3D SII: 0.6 - 7 mm TR7600F3D LL SII: 0.4 - 7 mm
Max PCB Weight
12 kg
Top Clearance
@ 20/25/30 μm: 50 mm @ 15 μm: 45 mm @ 10 μm: 25 mm @ 5 μm: 5 mm
Bottom Clearance
@ 30 μm: 55 mm @ 5/10/15/20/25 μm: 70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm * SMEMA Compatible
Inspection Functions
Capabilities
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
Dimensions
WxDxH
TR7600F3D SII: 1470 x 1971 x 1974 mm TR7600F3D LL SII: 1730 x 2300 x 1975 mm Note: not including signal tower, height: 502 mm
Weight
TR7600F3D SII: 3850 kg TR7600F3D LL SII: 4850 kg
Power Requirement
200 - 240 VAC single phase, 50/60 Hz, 4 kVA
