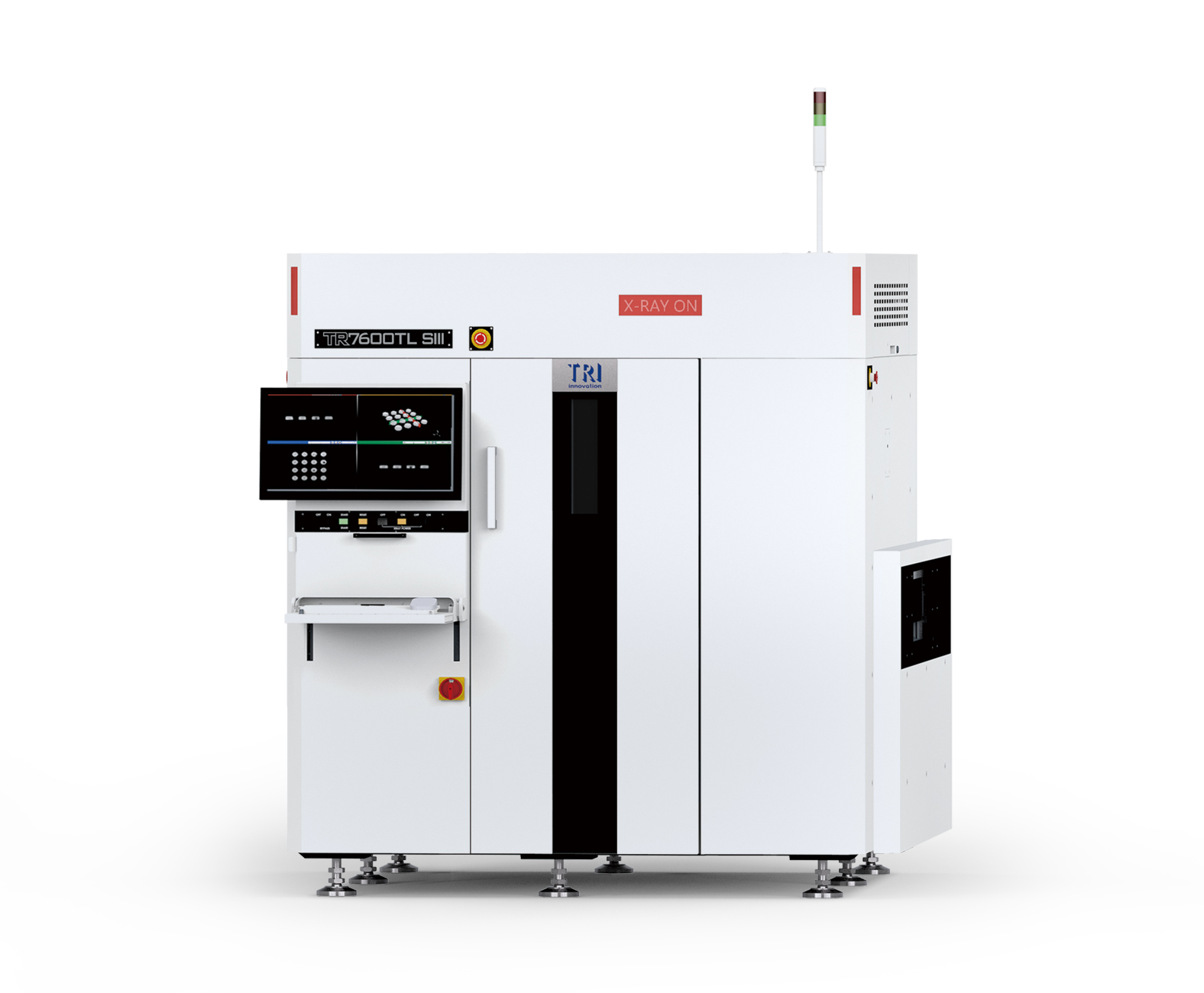

TR7600TL SIII
TR7600TL SIII
INTRODUCTION
新型的TR7600TL SIII在線型掃描3D AXI,專為檢測大尺寸電路板(最大可達1200mm x 660mm)而設計,並擁有專屬的CT功能。TR7600TLSIII系列平台可在不犧牲成像解析度的情況下,同時提供出色的速度和性能。
• 超高速3D CT X射線檢測
• 優越解析度檢測特大尺寸電路板
• 擁有完善演算法的智能編程
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units)
X-ray Source
Microfocus tube 130 kV max (user adjustable)
Imaging Resolution
10 μm, 15 μm, 20 μm, 25 μm (user Selectable)
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
Standard: 610 x 660 mm 2 Stages: 1200 x 660 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm*: 15 mm * For confirming the specific technical requirements, please contact TRI’s sales representative
Bottom Clearance
@ 25 μm: 55 mm @ 20 μm: 70 mm @ 15 μm: 70 mm @ 10 μm: 70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm * SMEMA Compatible
Inspection Functions
Capabilities
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
Dimensions
WxDxH
2014 x 2000 x 1940 mm Note: not including signal tower, height: 510 mm
Weight
4750 kg
Power Requirement
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer
