INTRODUCTION
新一代的在線型ICT+FCT解決方案擁有突破性的優越表現，多核心平行測試功能具多達四個獨立的核心，能夠大幅提升測試產能。可相容SMEMA的在線型處理器，降低了操作員的工作量並且提升了工作效能，並且具有長生命週期的快速插拔治具，結合內建自我診斷系統及支援自動校驗功能，能夠確保長期的測試可靠度。
• 新一代高彈性多核心平行測試
Tester Specifications
Analog/hybrid test points

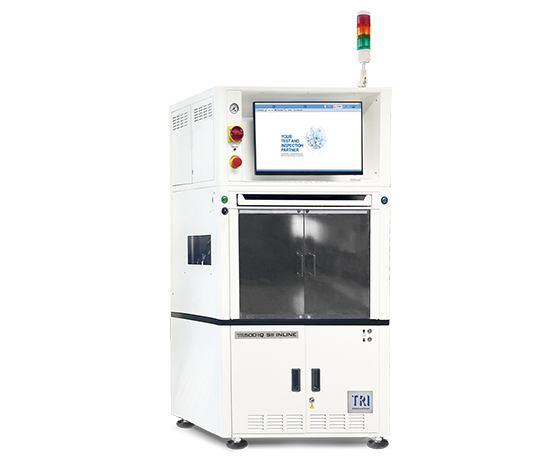

TR5001Q(L) SII INLINE: 4,096
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
PCB Thickness
0.6 - 5 mm
Dimensions
WxDxH
TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
Note: not including signal tower,signal tower height: 390 mm
Weight
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q)L SII INLINE: 720 kg
