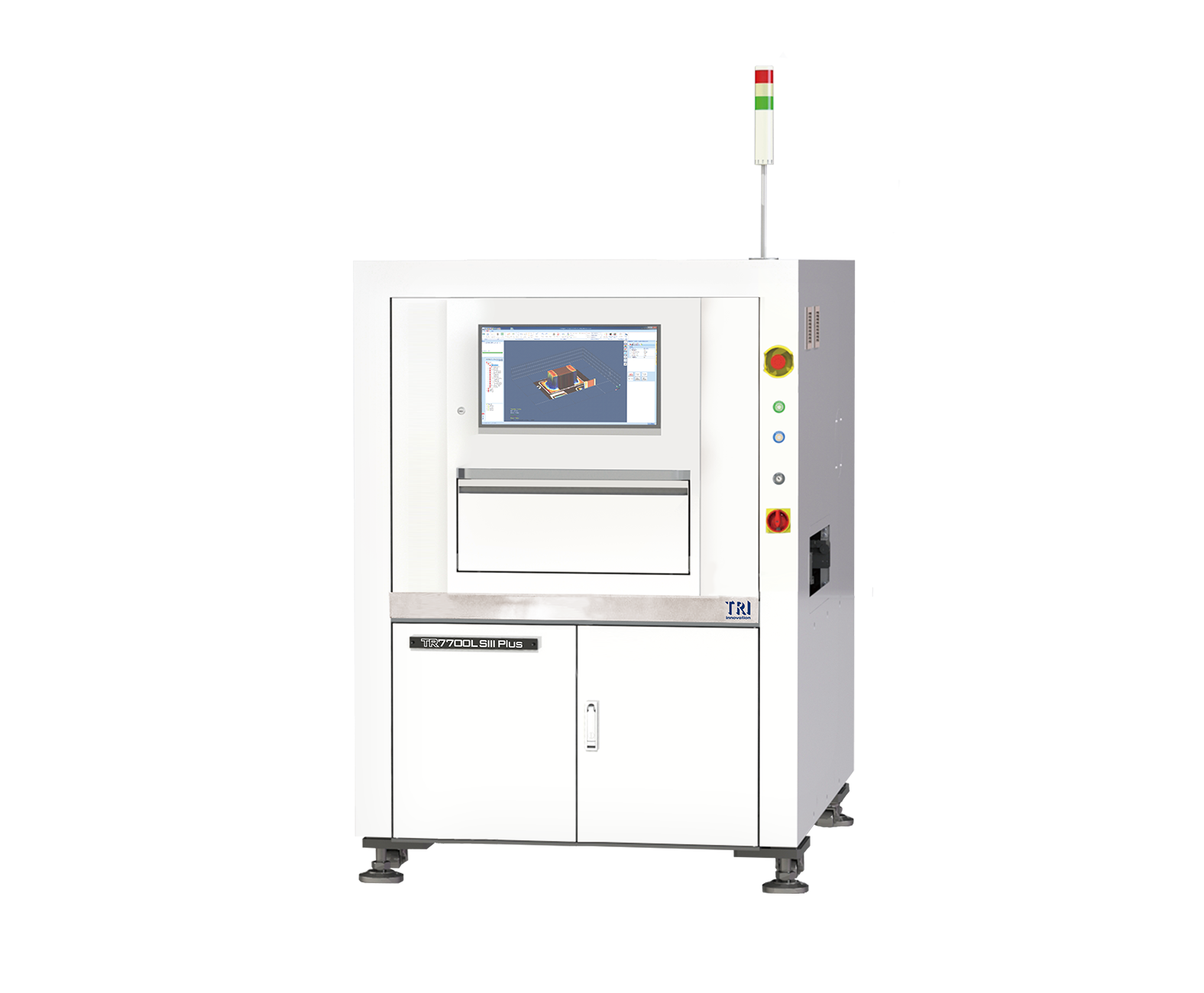

TR7700L SIII Plus
 |
|
|
|
TR7700L SIII Plus
|
|
|
INTRODUCTION
TR7700L SIII Plus 結合了先進的高精度相機系統和TRI獨有的多相位光源，可捕捉到全尺寸PCB板前所未有的細緻影像。新一代檢測軟件結合了優秀的缺陷檢測和簡易型自動CAD程式編寫，為AOI檢測解決方案提供當代最頂尖的技術水準。
• 備有多相位光源的高精準度AOI
• 全新圖形使用者界面提供簡易離線程式編寫
• 智能化自動輸送帶系統大幅度降低加載時間
• 新式色彩空間演算法，可提高正確度並減少誤判
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Dynamic Imaging |
| Top Camera |
4 or 12 Mpix high speed color camera |
| Angle Camera |
N/A |
| Imaging Resolution |
5.5 µm, 10 µm (factory setting)
Note: 4 MP camera configuration supports 10 μm, 12 MP configuration supports 5.5 μm. |
| Lighting |
Multi-phase RGB+W LED |
| 3D Technology |
Single/Dual 3D laser sensors (Optional) |
| Max. 3D Range |
@5.5 μm: 2 mm
@10 μm: 4 mm
Note: Depending on board size, layout, laser type and/or laser module settings |
Inspection Performance
| Imaging Speed |
@5.5 μm 2D: 24 cm²/sec
@10 µm 2D: 60 cm²/sec
@5.5 µm 2D+3D (optional): 4 – 10 cm²/s
@10 µm 2D+3D (optional): 27 – 39 cm²/sec
Note: Depending on board size, layout, laser type and/or laser module settings |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC-servo controller |
| Y-Axis Control |
Ballscrew + AC-servo controller |
| Z-Axis Control |
N/A |
| X-Y Axis Resolution |
1 µm |
Board Handling
| Max PCB Size |
765 x 610 mm |
| PCB Thickness |
0.6-5 mm |
| Max PCB Weight |
3 kg. Optional: 5 / 12 kg |
| Top Clearance |
25 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. [4 / 5 mm optional] |
| Conveyor |
Inline
Height: 880 – 920 mm
* SMEMA Compatible
|
Inspection Functions
| Component |
Missing
Tombstoning
Billboarding
Polarity
Rotation
Shift
Wrong Marking (OCV)
Defective
Upside Down
Extra Component
Foreign Material
|
| Solder |
Excess Solder
Insufficient Solder
Bridging
Through-hole Pins
Lifted Lead
Golden Finger
Scratch/Contamination
|
Dimensions
| WxDxH |
1365 x 1720 x 1710 mm
Note: not including signal tower, signal tower height 520 mm
|
| Weight |
1005 kg
|
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
