INTRODUCTION

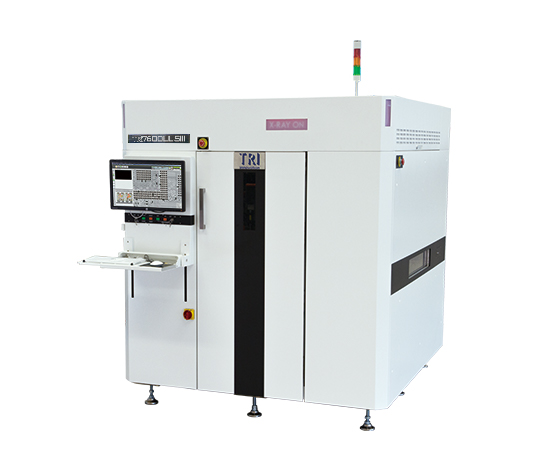

TR7600LL SIII CT AXI系列為TRI新一代具指標性的在線型PCBA檢測解決方案。為超大型電路板提供100%檢測覆蓋率而設計的TR7600LL SIII,擁有業界最快速的高解析取像性能,並在業界最先進的自動X光檢測中提供了優越的影像品質。
• 超高速3D CT X射線檢測
• 優越的影像品質
• 可檢測超大型電路板
• 高解析度可檢測小至01005in晶片
Optical System
Imaging Method |
|
Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Field of View |
|
Inspection Performance
Imaging Speed |
|
Height Resolution |
|
Max. Solder Height |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Z-Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor Height |
|
Optical System
Imaging Method |
|
Top Camera |
|
Angle Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Max. 3D Range |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor |
|
Imaging System
Camera |
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units) |
X-ray Source |
130 kV max (user adjustable) |
Imaging Resolution |
7 μm,10 μm,15 μm, 20 μm (user selectable) |
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
X-Axis Control |
High-precision ballscrew + AC-servo controller |
Y-Axis Control |
High-precision ballscrew + AC-servo controller |
Z-Axis Control |
High-precision ballscrew + AC-servo controller |
X-Y Axis Resolution |
N/A |
Board Handling
Max PCB Size |
Standard: 510 x 660 mm 2 Stages: 1000 x 660 mm |
PCB Thickness |
0.6 - 7 mm |
Max PCB Weight |
12 kg |
Top Clearance |
@ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm |
Bottom Clearance |
70 mm |
Edge Clearance |
3 mm or 5 mm |
Conveyor Height |
880 - 920 mm (34.6 - 36.2 in.) |
Inspection Functions
Capabilities |
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity, Rotation, Floating |
Defects |
Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting, Void, Lifted Lead |
Dimensions
WxDxH |
1750 x 2140 x 1945 mm |
Weight |
4500 kg |
Power Requirement |
200 - 240 VAC three phase, 50/60 Hz, 7 kVA (346-416 VAC optional three phase transformer) |
|
