INTRODUCTION

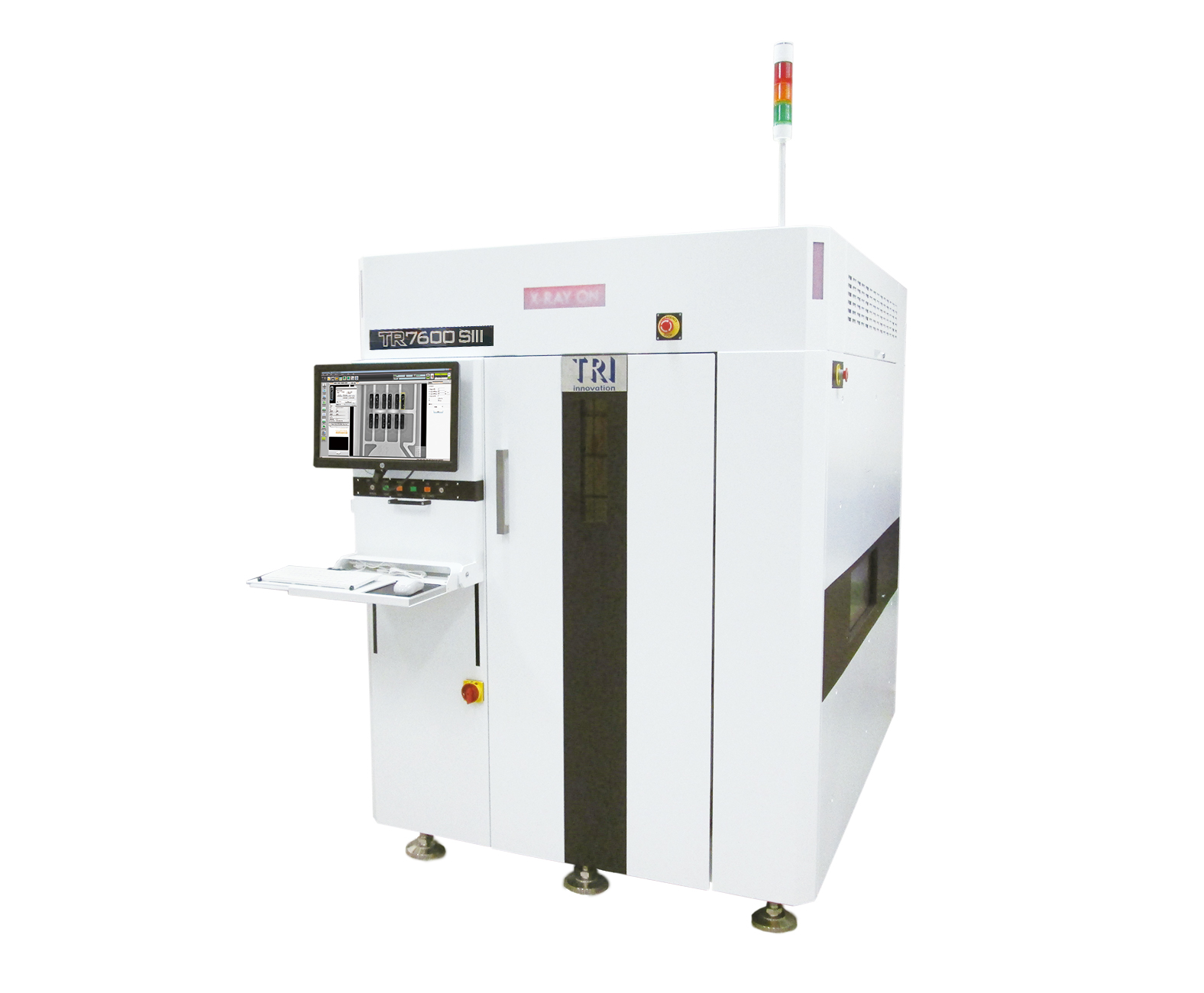

TR7600 SIII CT AXI系列為TRI新一代具指標性的在線型PCBA檢測解決方案。TR7600SIII包含可配合生產線速度達到100%檢測覆蓋率的設計，結合了業界最快速的高解析取像速度，並在業界最先進的自動X光檢測中大大提升了影像品質。
• 超高速3D CT X射線檢測
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor
Imaging System
Camera
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units)
X-ray Source
Microfocus tube 130 kV max (user adjustable)
Imaging Resolution
7 μm, 10 μm, 15 μm, 20 μm (user selectable)
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (Optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
Standard: 520 x 520 mm
PCB Thickness
0.6-7 mm
Max PCB Weight
12 kg
Top Clearance
@ 20 μm: 50 mm
Bottom Clearance
70 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm
Inspection Functions
Capabilities
Missing
Defects
Insufficient/Excess Solder
Dimensions
WxDxH
1470 x 2110 x 1975 mm
Weight
3850 kg
Power Requirement
200 - 240 VAC single phase, 50/60 Hz, 4 kVA
