INTRODUCTION
TR5001E SII提供具經濟效益且可客制化的解決方案，能夠完善滿足大多數客戶的測試要求。TR5001E SII 可將 MDA 、 客製化ICT 及功能測試整合，達到減少生產線人員數量的目的；內建自動校正和自我診斷功能，可確保擁有長期測試的高度可靠性。
• 從 MDA 到 ICT 及功能測試的模組化升級選配
• 內建自我診斷和自動校正功能
• 高速、準確的測量和測試
• 快速簡易的友善程序開發介面
Tester Specifications
|
Analog/hybrid test points |

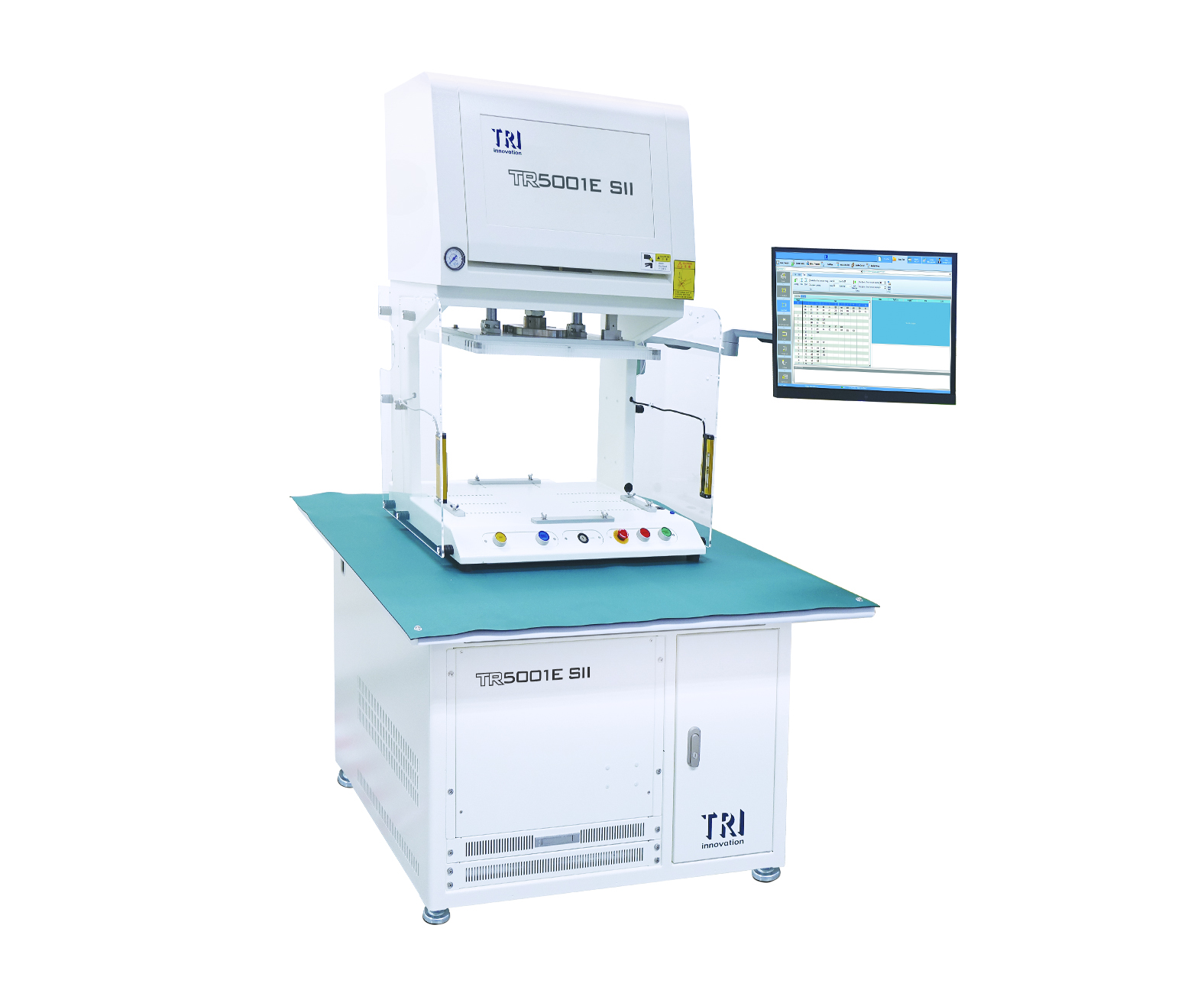

TR5001E SII: 3456

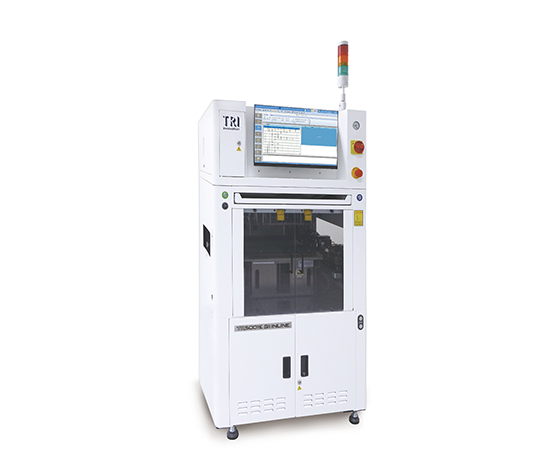

TR5001E SII INLINE: 2496 |
|
Operating System |
Microsoft® Windows 10 |
|
Fixture Type |
Inline or Offline Press Type. Inline with Long Lifespan Quick Disconnection Interface |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
Optional Components
|
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies:
(1) 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
(2) Programable Power (2 CH): 0.2 – 3 V@2 A max. or 3 – 24 V@3 A max.
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
(3) APPS7508: 75 V max. / 8 A max. / 200 W max.
-
Boundary Scan: Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
On-board Flash, EEPROM, MAC programming
-
ToggleScan Test: Advanced Test Technology that Combines with BScan and Vectorless Test Functions to Detect Pin Open or Short Issues
|
|
Yield Management System |
YMS 4.0 |
|
Industry 4.0 Standards |
IPC-Hermes-9852, IPC-CFX |
Board Handling
|
Max. PCB Size |
TR5001E SII: Standard- 420 x 300 mm, Optional- 600 x 350 mm
TR5001E SII INLINE: Standard- 450 x 300 mm, Optional- 500 x 360 mm |
|
PCB Thickness |
0.6 - 5 mm |
Dimensions
|
WxDxH |
TR5001E SII: 1000 x 900 x 1680-1700 mm
TR5001E SII INLINE: 900 x 900 x 1640 mm
Note: not including signal tower,signal tower height: 392 mm |
|
Weight |
TR5001E SII: 200 kg
TR5001E SII INLINE: 480 kg |
