INTRODUCTION

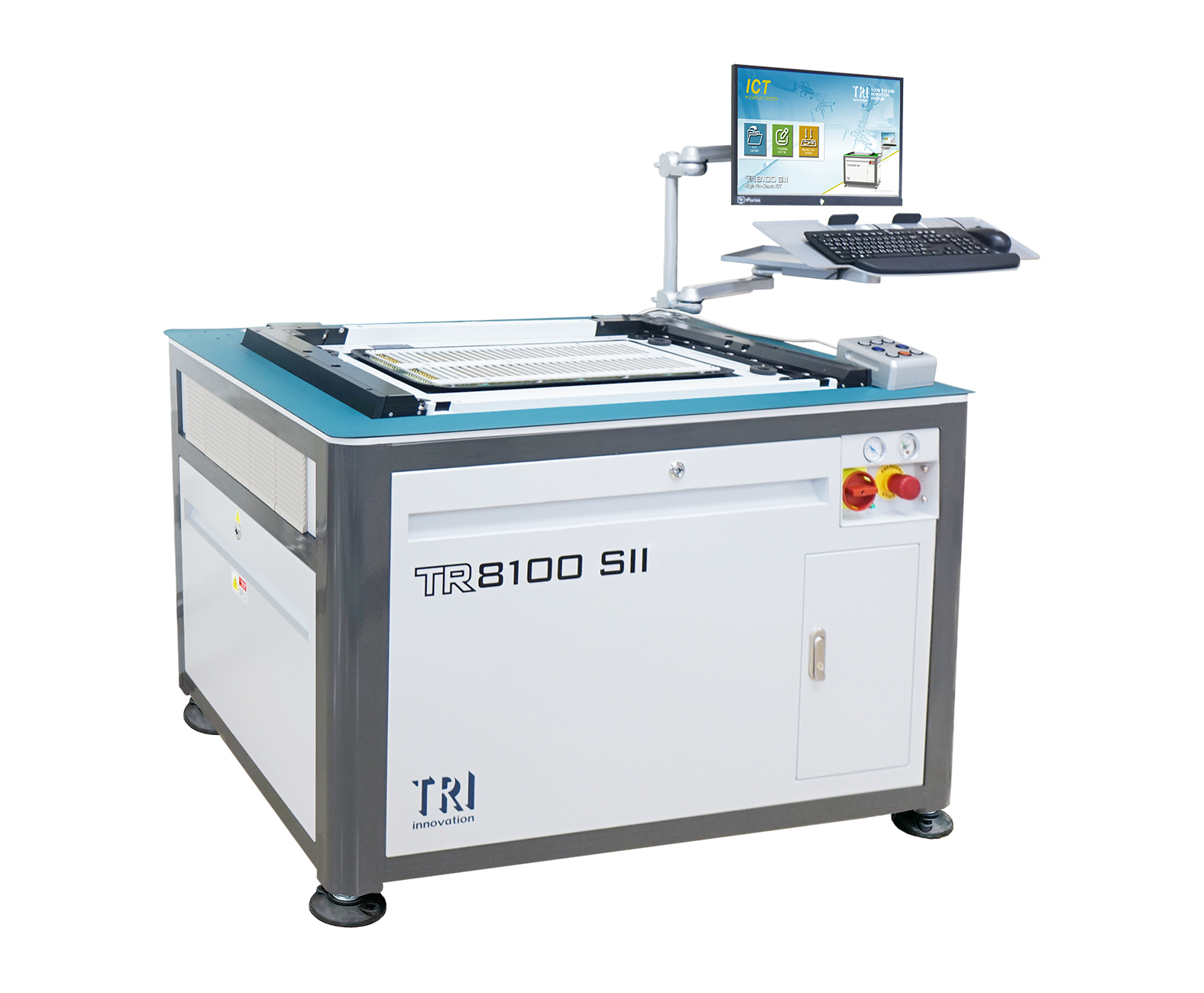

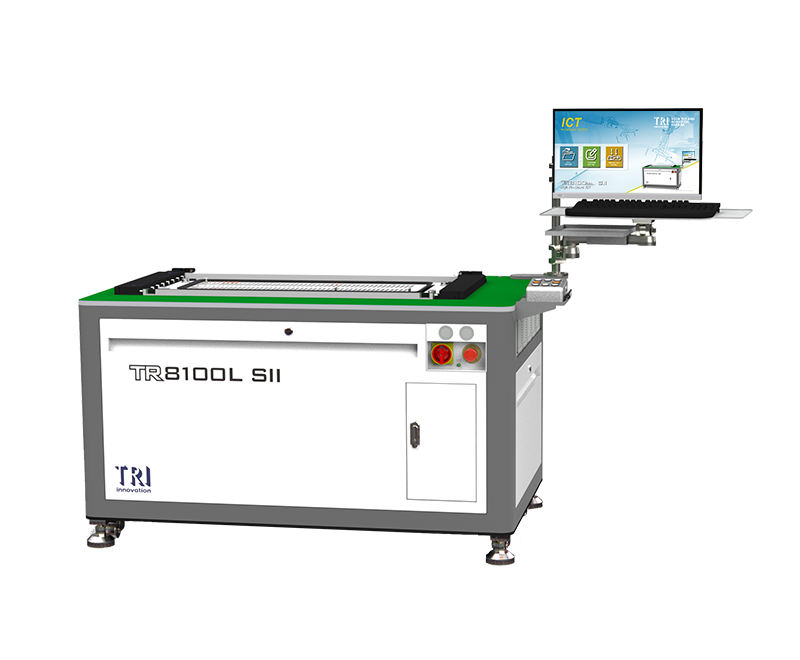

TR8100 SII 系列是最新型的高階電路板測試ICT，擁有數位無 MUX 架構 1:1 針點與檢測點比例設計，可測試多達11,088個針點數。高程式設計性可以進行快速程式開發，工程變更修改更快速更簡易；不佔空間、高產量、高精度測試的特性，能有效率測試大針點數且複雜的低電壓測試電路板(PCBA)，提高系統穩定度、長期的測試可靠度及故障覆蓋率，以得到降低成本的目的，並能夠將測試結果資料完整呈現。
• 真空治具高故障覆蓋率測試解決方案
• 低電壓裝置測試與高速測試
• 內建自我診斷功能
• 高精度測量和測試
• 友善的操作介面，輕鬆的程序開發
Tester Specifications
|
Max. Test Points |
TR8100 SII: 3584
TR8100H SII: 7056
TR8100HL SII: 11088
|
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
|
Fixture Type |
Vacuum type |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
ToggleScan Test
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
TR8100 SII: 1150 x 850 x 800 mm
TR8100H SII: 1150 x 850 x 800 mm
TR8100HL SII: 1400 x 850 x 800 mm |
|
Weight |
TR8100 SII: 400 kg
TR8100H SII: 400 kg
TR8100HL SII: 470 kg |
