INTRODUCTION

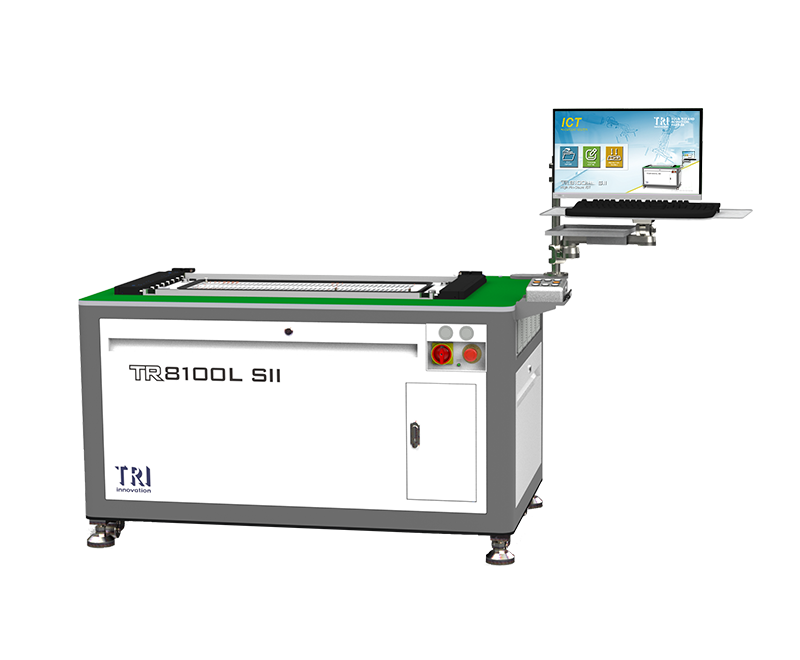

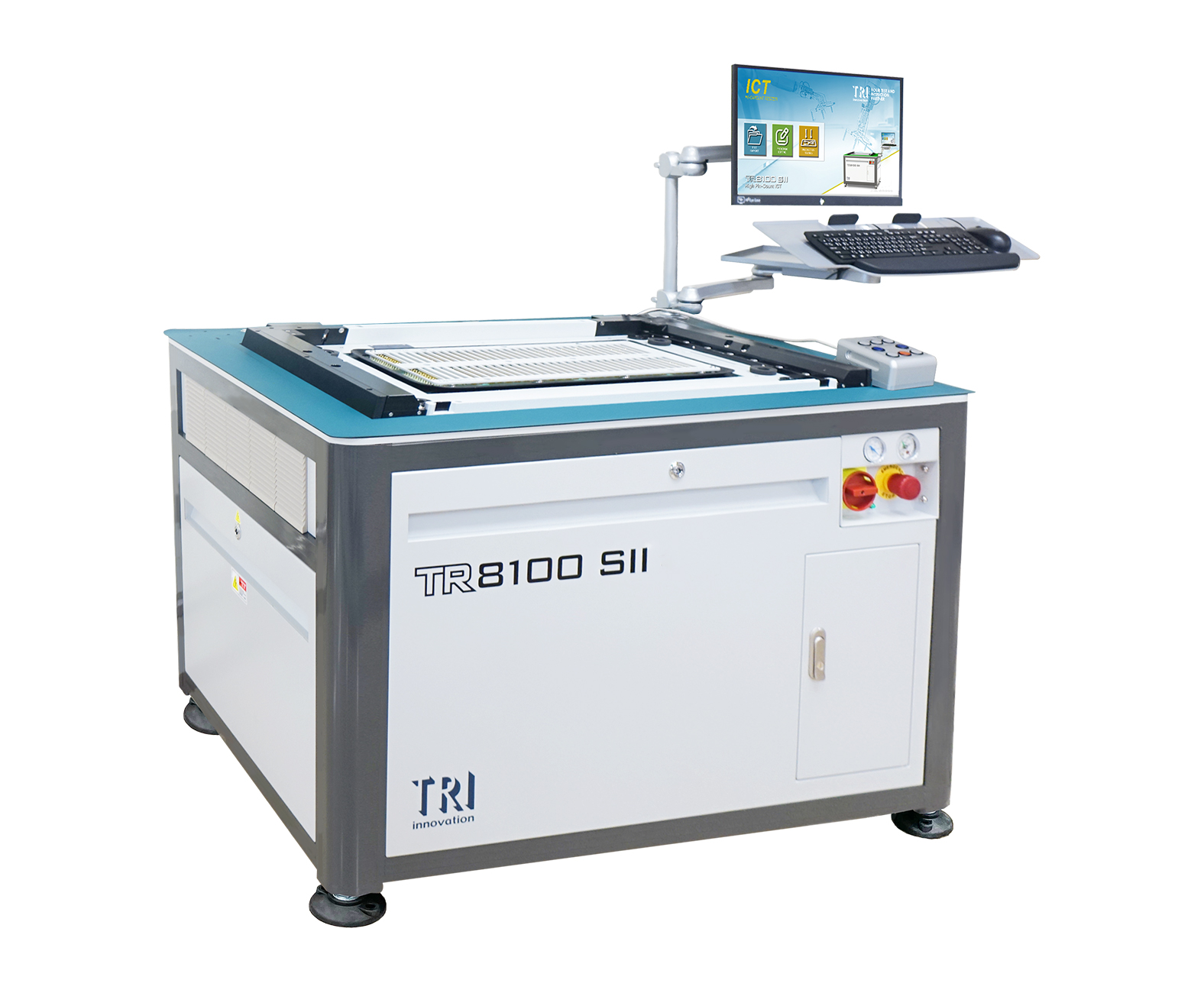

The TR8100 SII is the latest ICT with High Throughput and High Accuracy for large and complex PCBAs. The TR8100 SII is the top-of-the-line board test system targeting the low-voltage testing market. TR8100 SII's vacuum fixture system ensures full pin contact, and with up to 11,088 pins digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. The ICT has built-in self-diagnostics to ensure long-term testing reliability.
• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Built-in Self Diagnostics function
• High-Accuracy Measurement and Testing
• Friendly UI, easy program development
Tester Specifications
Max. Test Points |
TR8100 SII: 3584
TR8100H SII: 7056
TR8100HL SII: 11088
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
Fixture Type |
Vacuum type |
Standard Testing Components
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
Digital Testing |
-
APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Serial Test Controller (STC) Programming
-
DPS Programmable DUT Power supply:
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
ToggleScan Test
|
Yield Management System |
YMS 4.0 |
Dimensions
WxDxH |
TR8100 SII: 1150 x 850 x 800 mm
TR8100H SII: 1150 x 850 x 800 mm
TR8100HL SII: 1400 x 850 x 800 mm |
Weight |
TR8100 SII: 400 kg
TR8100H SII: 400 kg
TR8100HL SII: 470 kg |
