INTRODUCTION

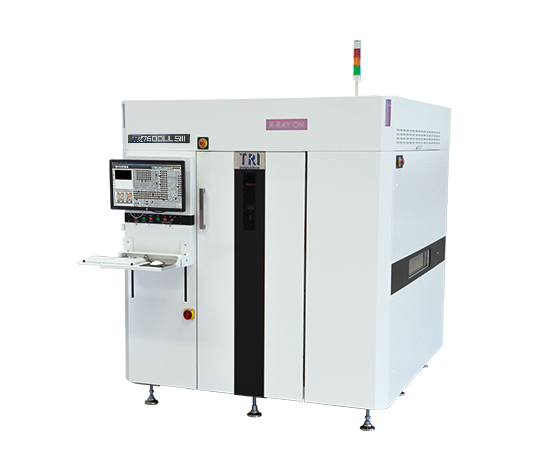

CT機能付きX線検査装置TR7600 SIIIシリーズはTRIの特徴であるインラインPCBA検査ソリューションの新世代製品です。大型基板でも検査カバー率を100%実現したTR7600LL SIIIは、高解像度での業界最高撮像速度と業界最高画像品質を両立させたもっとも先進的な自動X線検査装置です。
• 超高速3D CT X線検査
• 優れた画質
• はんだ接合のﾘｱﾙな3Dﾋﾞｭｰｱｰ
• 超大型基板の対応
• 0402mmﾁｯﾌﾟ対応の高解像度
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors) |
| X-ray Source |
60 -130 kV |
| Imaging Resolution |
7 μm - 20 μm |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
| X-Axis Control |
High-precision ballscrew + AC-servo controller |
| Y-Axis Control |
High-precision ballscrew + AC-servo controller |
| Z-Axis Control |
High-precision ballscrew + AC-servo controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
1000 x 660 mm |
| PCB Thickness |
0.6 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 30 mm
@ 10 μm: 15 mm
@ 7 μm: 7 mm |
| Bottom Clearance |
70 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm. Optional: 940-965 mm
* SMEMA Compatible |
Inspection Functions
| Capabilities |
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity,
Rotation, Floating |
| Defects |
Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting,
Void, Lifted Lead |
Dimensions
| WxDxH |
1750 x 2140 x 1945 mm |
| Weight |
4500 kg |
| Power Requirement |
200 - 240 VAC three phase, 50/60 Hz, 7 kVA
(346-416 VAC optional three phase transformer) |
|
