INTRODUCTION

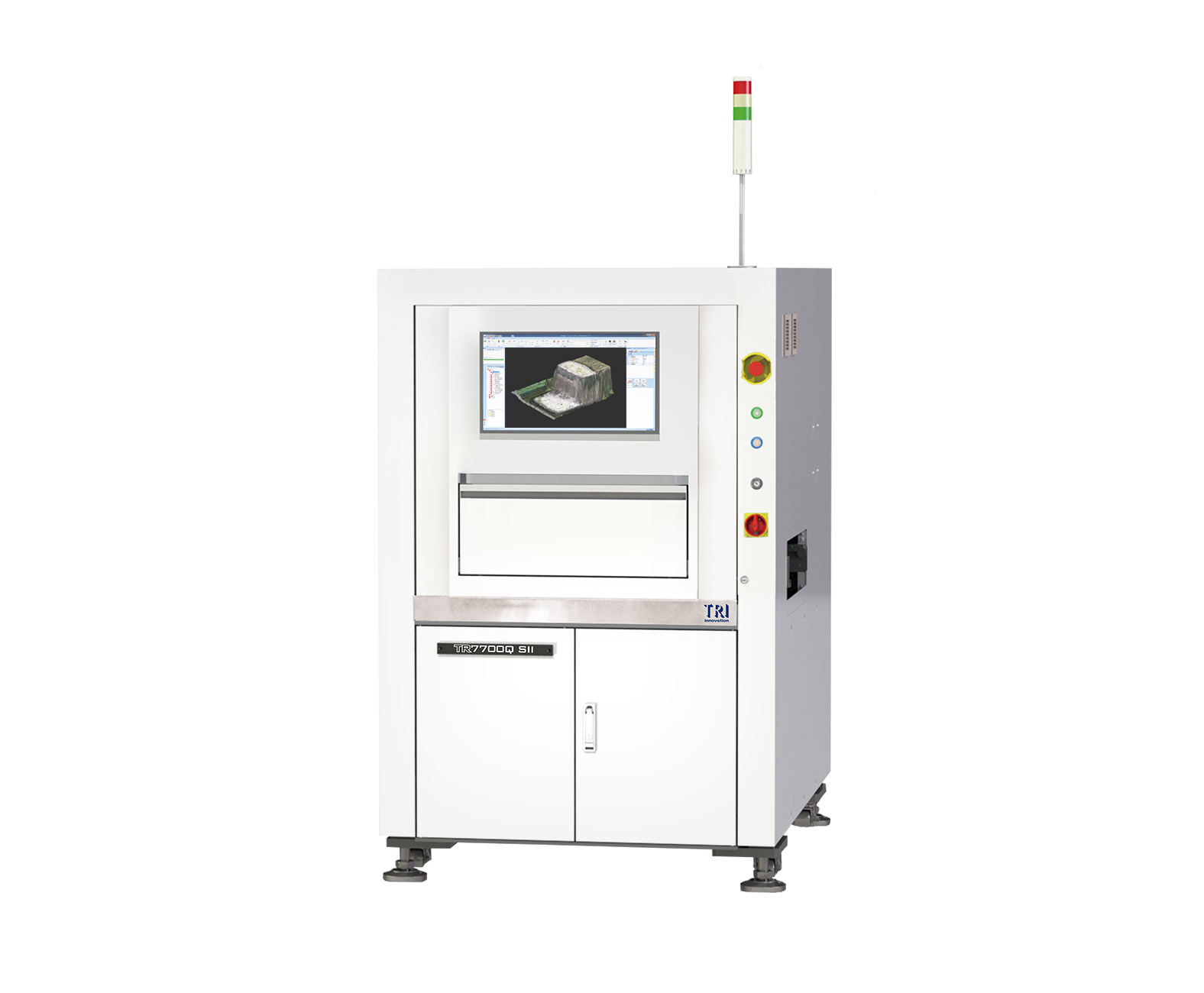

TR7700Q SIIは、自動学習機能、柔軟な検査アルゴリズム、およびスマートファクトリーアプリケーションでの正確な測定とデータ交換のための計測機能を備えたTRIのスマートライブラリーを搭載しています。 TR7700Q SIIは高度な機械的安定性により高精度になっています。またStop & Goイメージング技術によりゲージR&R（繰り返し精度）が向上しています。
• 業界をリードする検査速度、最大57 cm2 /秒
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP High Speed Camera
Angle Camera
N/A
Imaging Resolution
5.5 µm *, 10 µm, 12 µm, 15 µm (factory setting)
Lighting
Multi-phase True Color LED
3D Technology
Quad Digital Fringe Projectors
Max. 3D Range
@ 5.5 μm: 20 mm
Inspection Performance
Imaging Speed
@ 5.5 μm: 7.8 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller
Y-Axis Control
Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7700Q SII: 510 x 460 mm
PCB Thickness
0.6-5 mm
Max PCB Weight
TR7700Q SII: 3 kg. Optional: 5kg
Top Clearance
@ 5.5 μm: 20 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective,
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging,
Dimensions
WxDxH
TR7700Q SII: 1100 x 1720 x 1710 mm
Weight
TR7700Q SII: 910 kg
