INTRODUCTION
次世代並列処理式インラインICT+FCTソルーションは、独立した4コアの漸進的なマルチコア平行検査を提供、検査能力を大幅に向上します。SMEMA対応のインライン搬入が作業者の作業負荷を軽減、作業効率を向上、耐久性に優れたクイックディスコネクト端子をもち、自動校正および自己診断機能を内蔵、長期にわたる検査の信頼性を確保します。
• 次世代フレキシブルマルチコア平行処理式テスター
Tester Specifications
Analog/hybrid test points

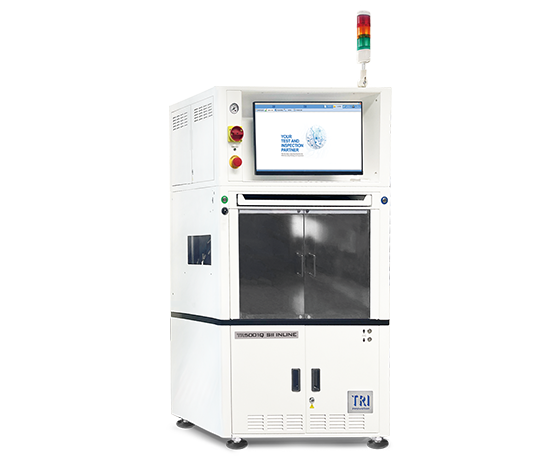

TR5001Q(L) SII INLINE: 4096
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Board Handling
Min. PCB Size
70 x 70 mm
Max. PCB Size
TR5001(D/Q) SII INLINE:500 x 360 mm
PCB Thickness
0.6 - 5 mm
Dimensions
WxDxH
TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
Note: not including signal tower,signal tower height: 390 mm
Weight
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q)L SII INLINE: 720 kg
