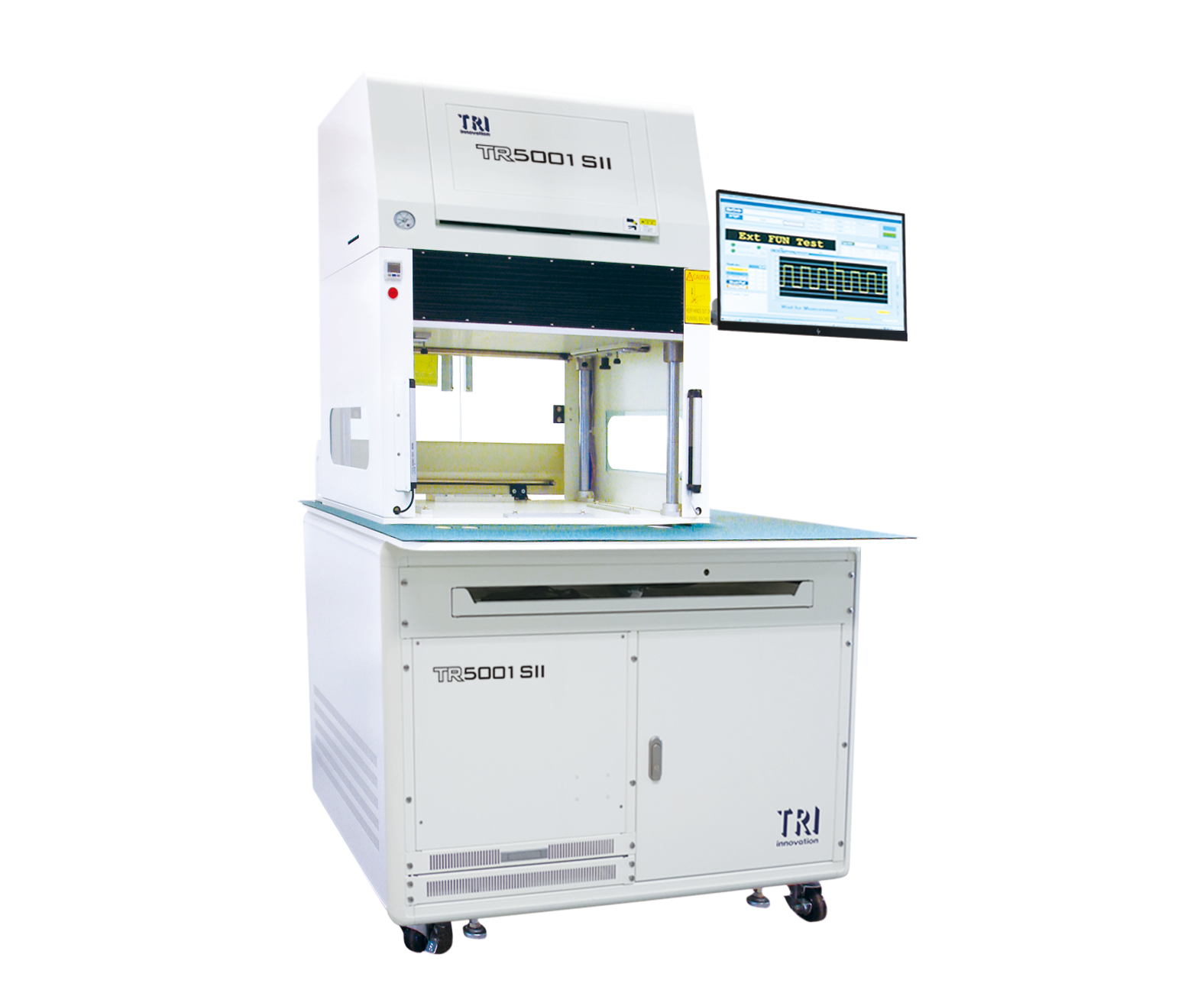

INTRODUCTION
次世代ICT+FCTソルーションは、独立した4コアの漸進的なマルチコア平行検査を提供、検査能力を大幅に向上します。TR5001Q/D SIIは測定精度を向上、新しい自動校正および自己診断機能を内蔵、長期にわたる検査の信頼性を確保します。
• 次世代フレキシブルマルチコア平行処理式テスター
• 任意のピンに８ポート連結可能な最先端技術のテストコントローラ
• 限られたアクセスへのソルーションおよびPXIモジュールを使用した機能検査の拡張性
• 自己診断機能及び自動校正機能を内蔵
• 高精度測定及び検査
• 直観的でフロー方式の簡易なプログラミングインターフェイス
Tester Specifications
|
Analog/hybrid test points |
TR5001Q SII: 4096
TR5001D SII: 3328
TR5001 SII: 3456 |
|
Operating System |
Microsoft® Windows compatible PC with USB, Windows 7-10 |
|
Fixture Type |
Offline press type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
Optional Components
|
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
Serial Test Controller (STC) Programming
-
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
1050 x 850 x 1735 mm |
|
Weight |
300 kg |
