INTRODUCTION

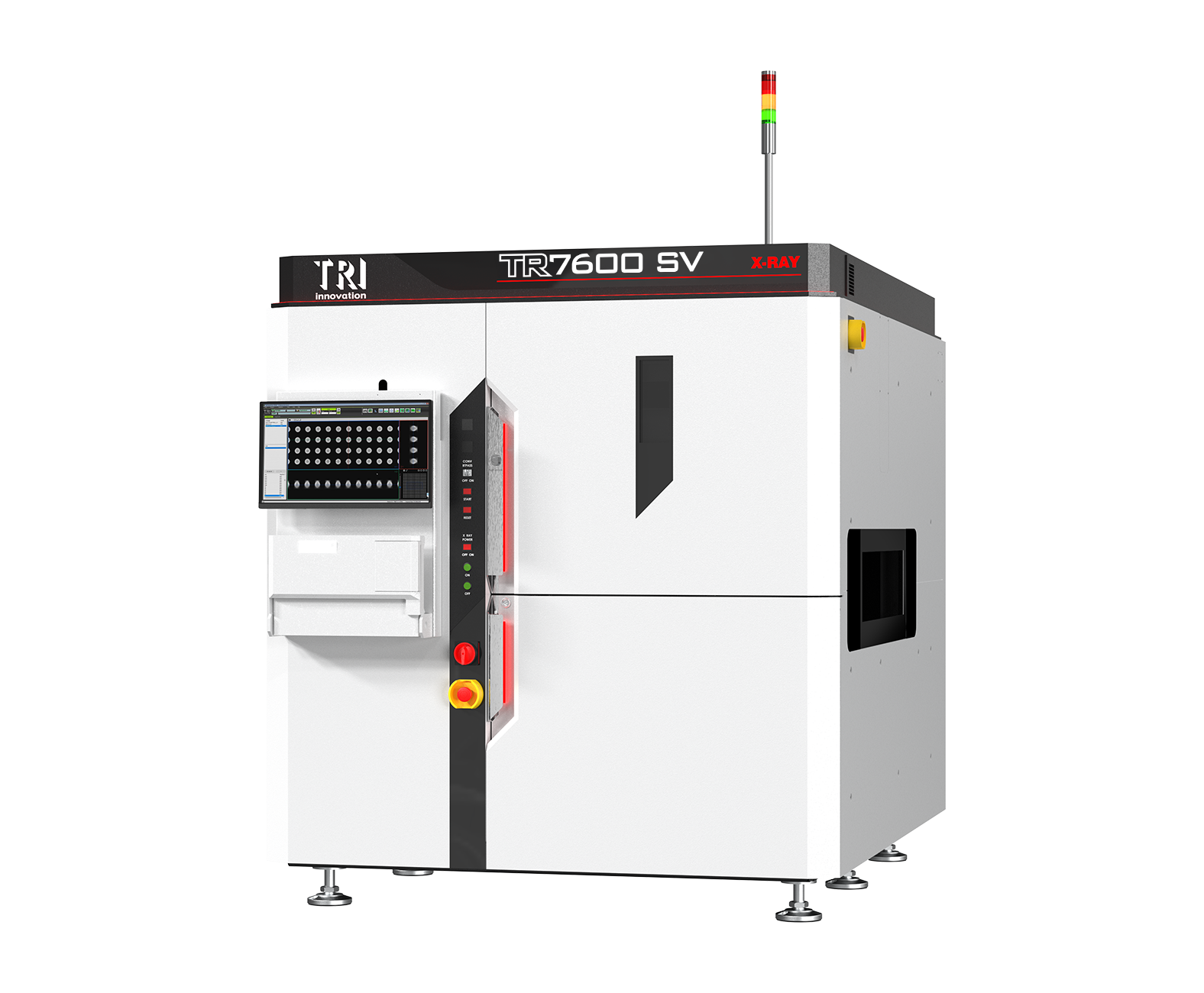

The TR7600 SV series is the newly released line scan 3D AXI, with up to 20% performance improvement compared to the award-winning TR7600 SIII series. Powered by AI Algorithms, the high-speed 3D AXI can precisely detect Void defects. With 7 µm high-resolution, the TR7600 SV series delivers a high yield rate inspection.
The robust platform is capable of fast image reconstruction and defect detection in BGAs, Barrel fill, Capacitors, Chips, Components Under RF shields, CSPs, DIMM Connectors, Flip-Chips, Ground Pads, Gullwing, Heat sinks, J-Leads , LED Chips, LGAs, Paladin Connector, Resistor, RNET, SiP, SMT Connectors, SOIC, SOT, Thermal Pad, QFNs, QFP and THTs.
• 7 µm High Performance Inspection, 20% Performance Improvement compared to previous model
• New motion controller, EtherCAT, for real-time measurements and ease of maintenance
• AI-Powered Inspection algorithms for precise defect detection
• Smart Factory Ready for Easy MES Connectivity
• Worldwide Technical Support Services
Optical System
Imaging Method |
|
Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Field of View |
|
Inspection Performance
Imaging Speed |
|
Height Resolution |
|
Max. Solder Height |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Z-Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor Height |
|
Optical System
Imaging Method |
|
Top Camera |
|
Angle Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Max. 3D Range |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor |
|
Imaging System
Camera |
Ultra-High Speed Line-Scan CCD 3 or 5 Units (9 or 15 Sensors) |
X-ray Source |
60 -130 kV |
Imaging Resolution |
7 μm - 25 μm |
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
X-Axis Control |
Linear Servo Motor with Motion Controller |
Y-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
X-Y Axis Resolution |
N/A |
Board Handling
Max PCB Size |
1000 x 660 mm |
PCB Thickness |
0.4 - 7 mm |
Max PCB Weight |
12 kg |
Top Clearance |
@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
|
Bottom Clearance |
@ 25 μm: 55 mm @ 7 /10 / 15 / 20 μm: 70 mm |
Edge Clearance |
3 mm or 5 mm |
Conveyor Height |
880 - 920 mm. Optional: 940 - 965 mm |
Inspection Functions
Capabilities |
Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
|
Defects |
Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead
|
Dimensions
WxDxH |

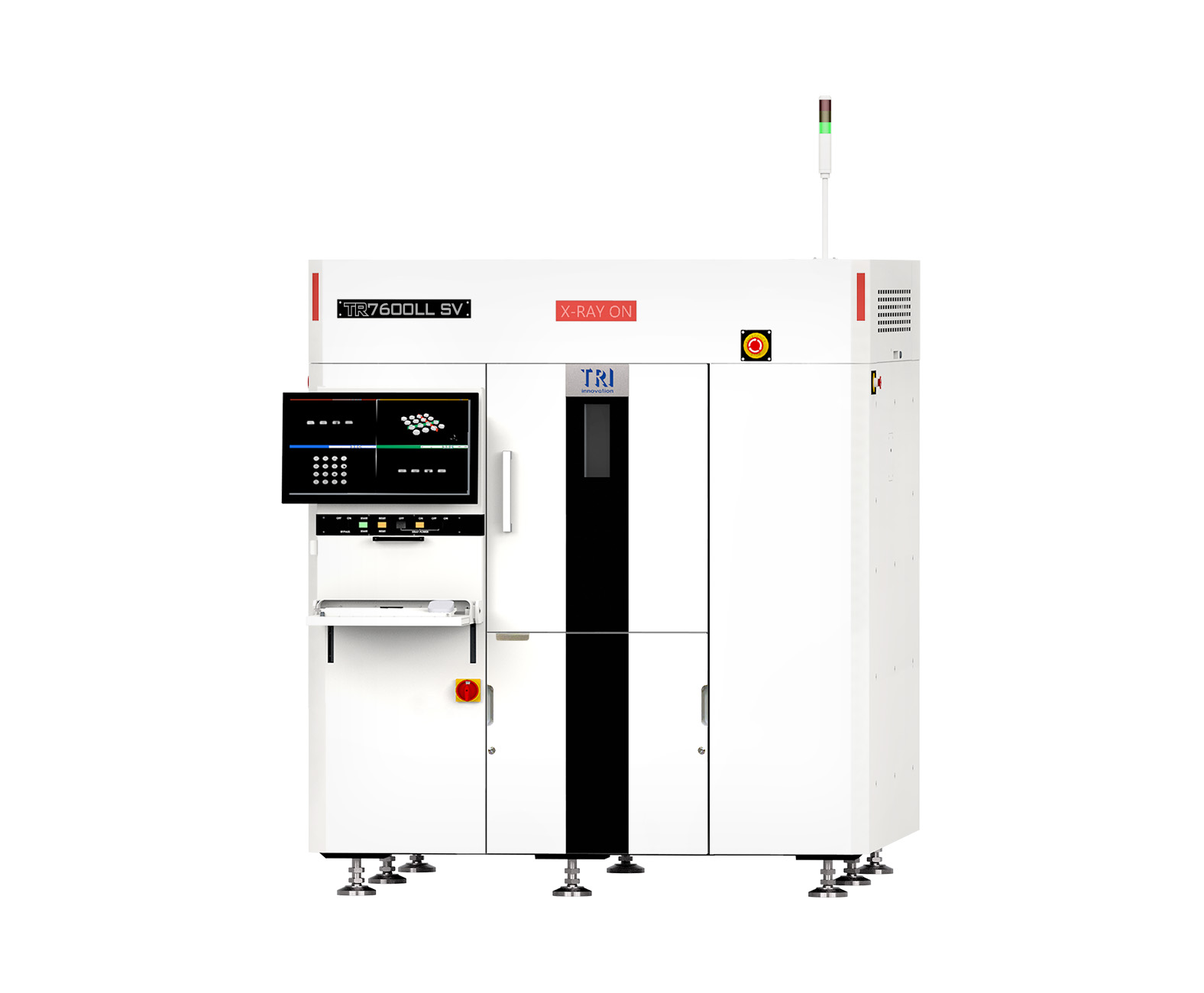

TR7600LL SV: 1730 x 2300 x 1975 mm
Note: not including signal tower, height: 502 mm
|
Weight |
TR7600LL SV: 4900 kg |
Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
|
