コンフォーマルコーティング検査装置(CI AOI)

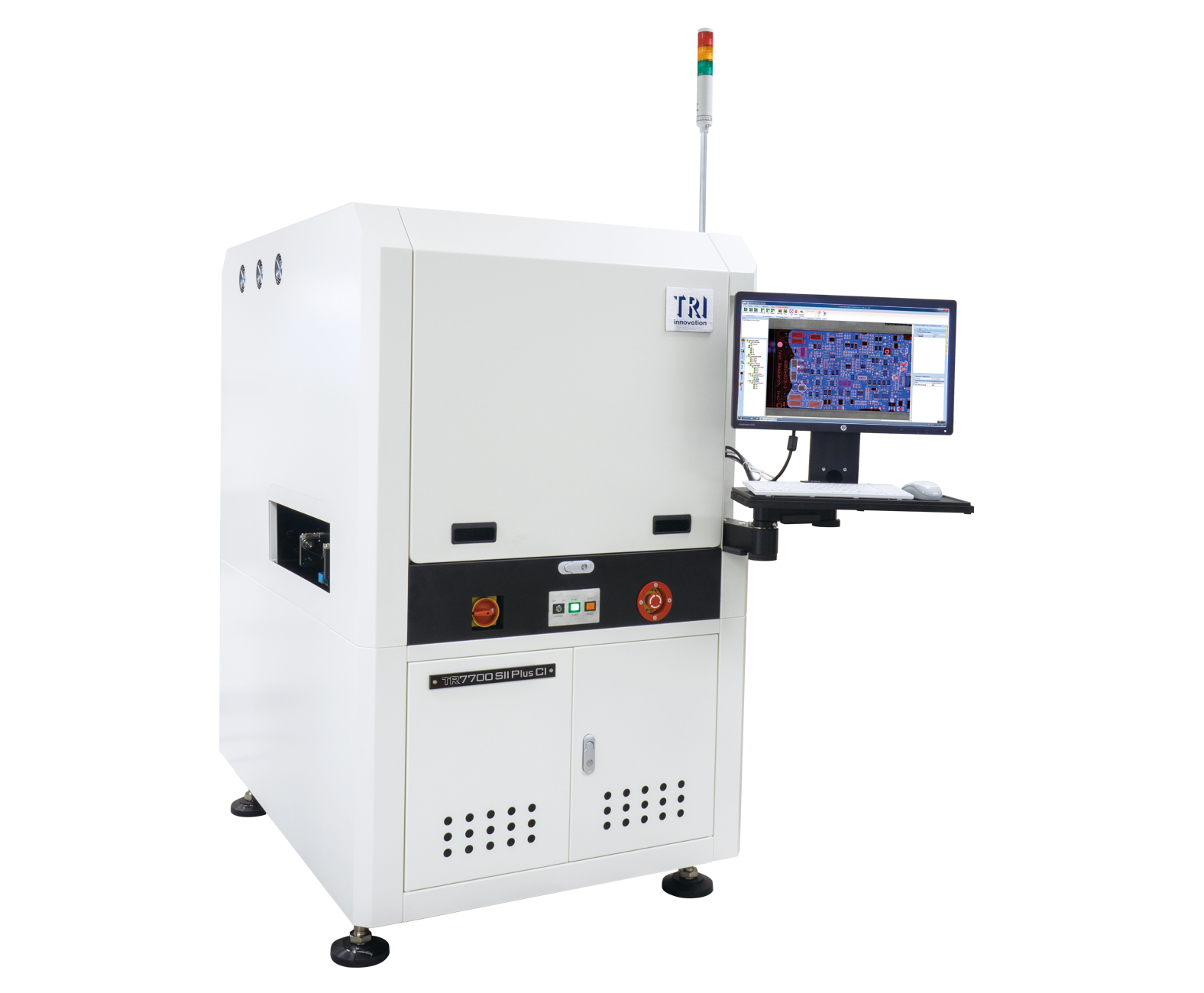

TR7700 SII Plus CI

INTRODUCTION

TR7700 SII Plus CIは　UVコンフォーマルコーティング基板を検査するために特別なマルチフェイズ照明を搭載した高精度光学設計に基づく簡易コンフォーマルコーティング検査AOIです。 TR7700 SII Plus CIの高度なソフトウェアとマルチフェイズ撮像は最小に虚報率で典型的なコーティング検査を実現します。

・高精度UVコーティング検査
・直感的に作成できる検査プログラム
・高精度コーティング面積測定
・マルチフェイズ照明によるノイズ低減

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase R/W + UV

Imaging Performance

Imaging Speed

@10 µm: 60 cm²/sec
@15 µm: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
X-Y Axis Resolution	1 µm

Board Handling

Max PCB Size	500 x 460 mm
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm [100 mm optional]
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Conformal Coating

Missing Coating
Insufficient Coating
Crack
Bubble/Void
Splash/Smear/Contamination
Spill
Measurement

Dimensions

WxDxH	1000 x 1400 x 1650 mm Note: not including signal tower, signal tower height 520 mm
Weight	600 kg
