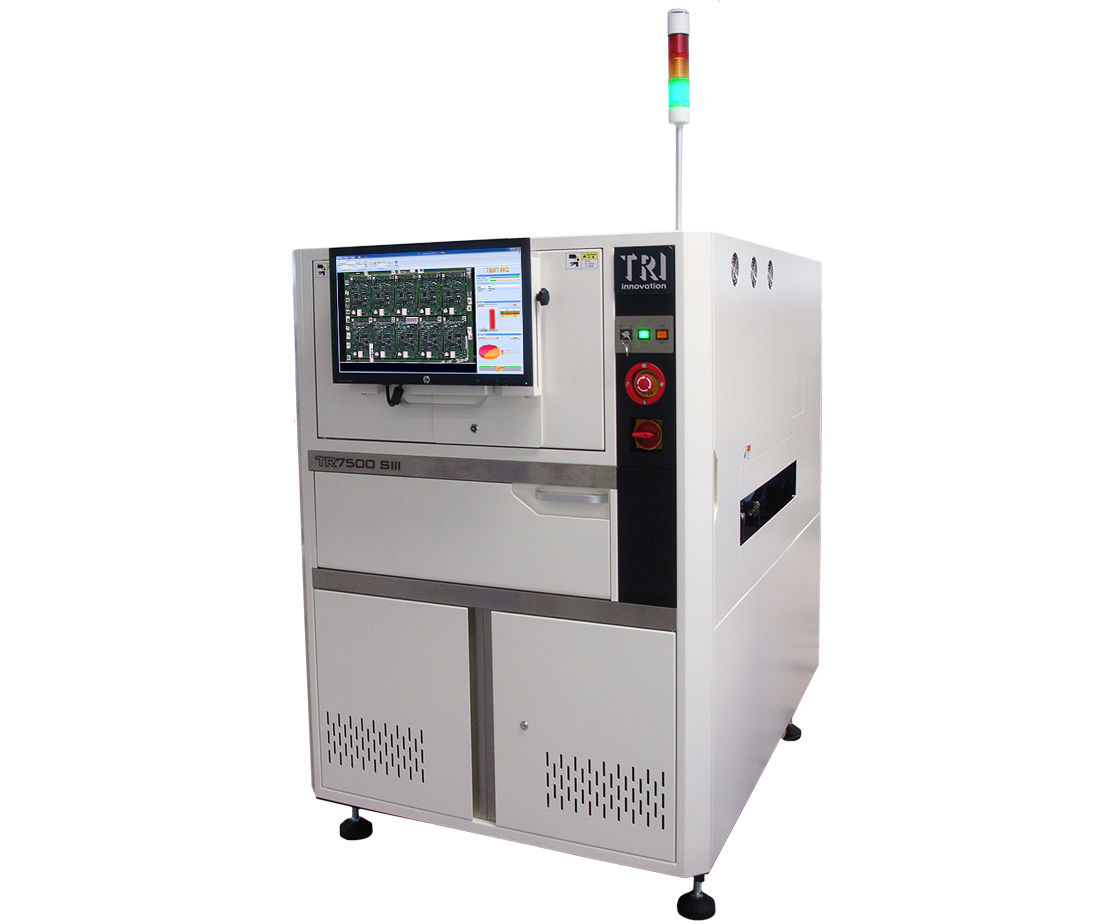

TR7500 SIII


TR7500 SIII

INTRODUCTION

TRIの先端中核AOIソリューション。トップカメラと4アングルサイドカメラを組み合わせたPCB検査は、ハンダの状態やアセンブリがどのように複雑であっても正確に検査をします。検査結果を重点に置いた高機能ソフトウェアと高性能ハードウェアの強力な組み合わせが、生産効率を最大限に高め、虚報を最低限に抑えた信頼性の高いAOIソリューションを提供します。

・高精度トップカメラ＋4アングルカメラ

・オフライン編集機能、簡単、スマートなプログラミングGUI

・ロード機能を短縮、高機能自動コンベアシステム

・虚報を抑えた高精度検査

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	1.3 Mpix or 6.5 Mpix (factory setting)
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	Single/Dual 3D laser sensors
Max. 3D Range	20 mm (with 3D Laser Sensor upgrade optional)

Inspection Performance

Imaging Speed

4 Mpix@ 10 µm 2D: 60 cm²/sec
4 Mpix@ 15 µm 2D: 120 cm²/sec

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm

Board Handling

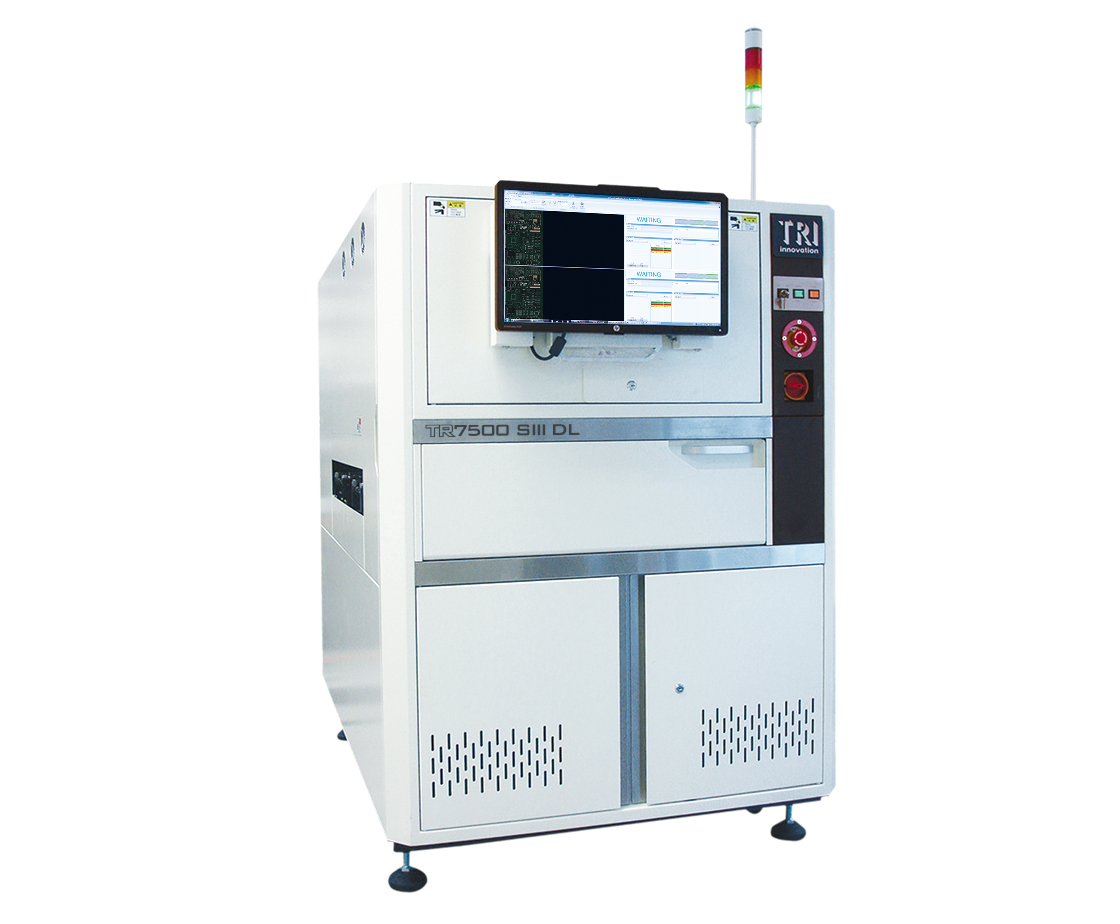

Max PCB Size	TR7500 SIII: 510 x 460 mm TR7500L SIII: 660 x 610 mm TR7500 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	40 mm
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component
Solder	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7500 SIII: 1100 x 1670 x 1550 mm TR7500L SIII: 1300 x 1630 x 1655 mm TR7500 SIII DL: 1100 x 1770 x 1550 mm Note: not including signal tower, signal tower height 520 mm
Weight	TR7500 SIII: 1030 kg TR7500L SIII: 1255 kg TR7500 SIII DL: 1150 kg
