INTRODUCTION

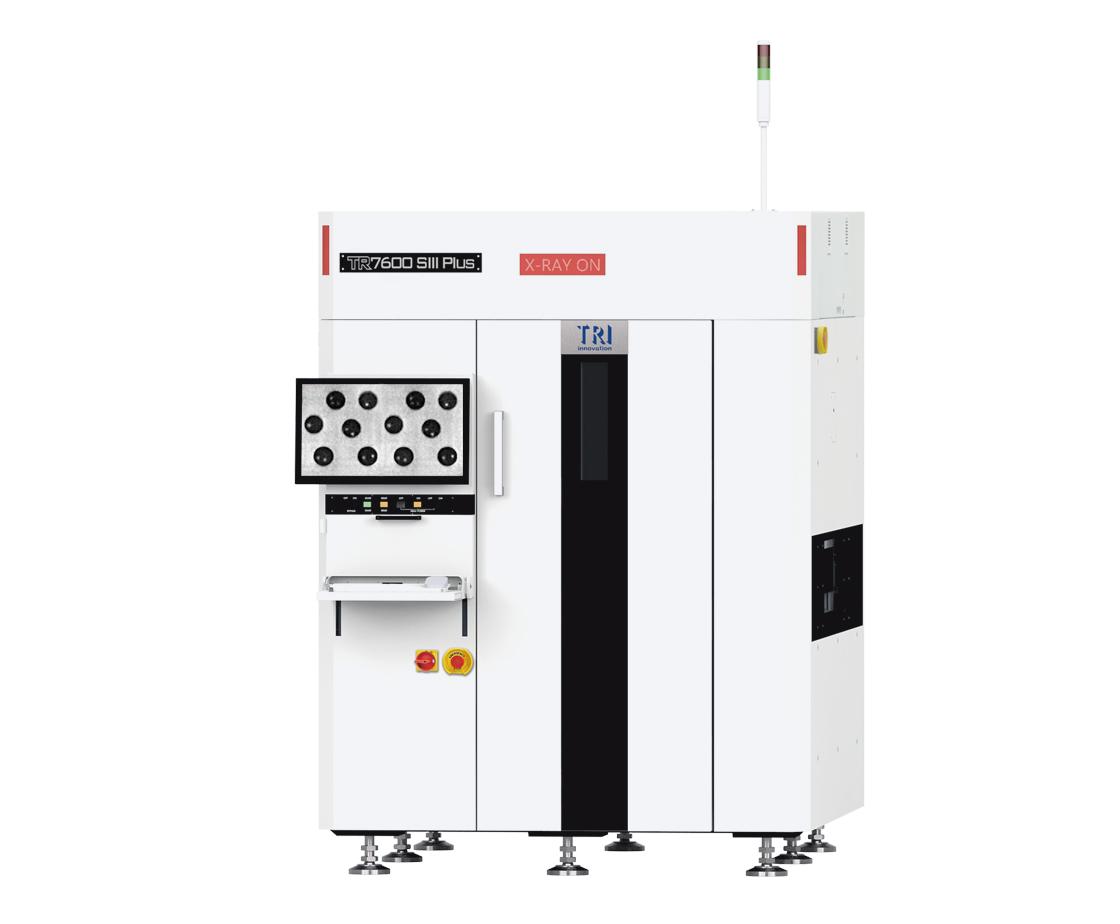

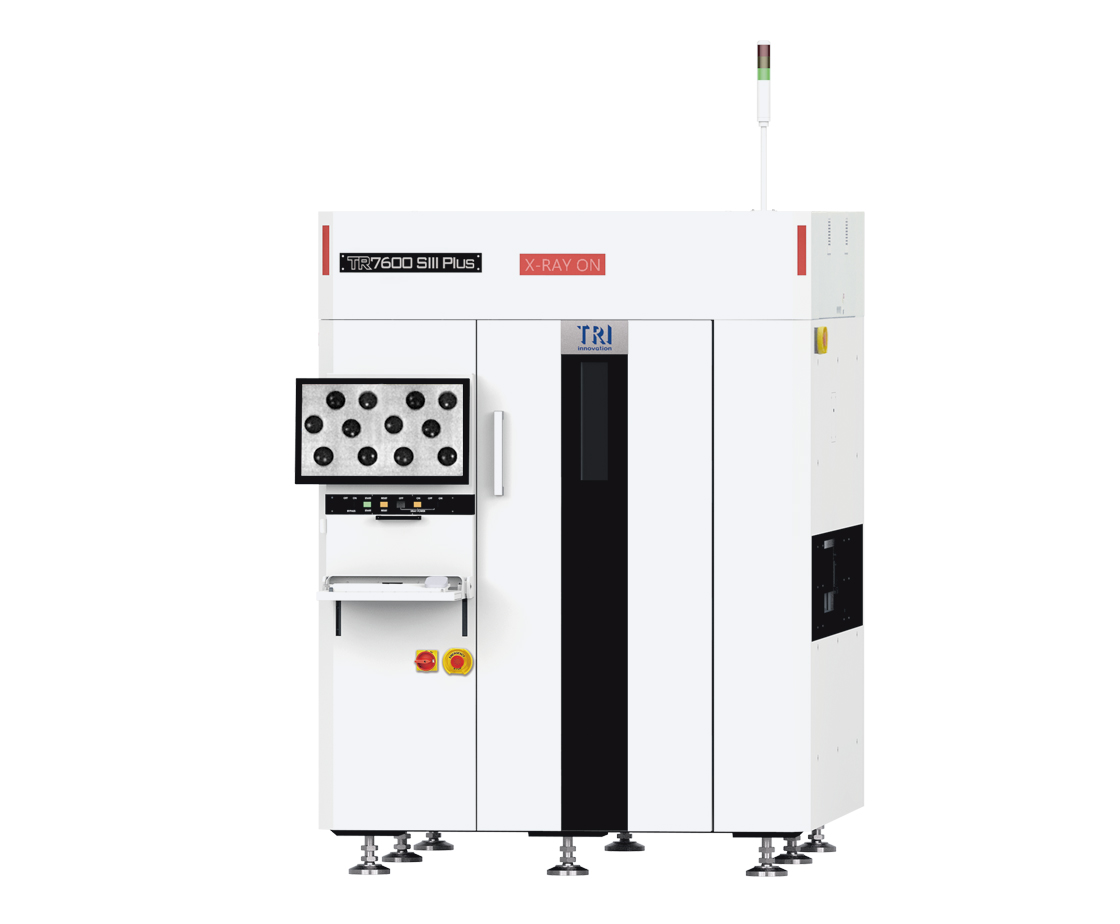

The TR7600 SIII Plus is TRI's high-throughput 3D SEMI AXI system designed for high-reliability industries like Semiconductor, Advanced Packaging, Automotive, Aerospace, and Medical. Equipped with Multi-Resolution (2 µm - 20 µm) capabilities, the 3D SEMI AXI ensures fast, accurate inspection of components such as C4 bumps, SiP, and Cu Pillars. The TR7600 SIII Plus supports large board sizes up to 800 x 350 mm and weights up to 12 kg. Powered by AI algorithms, including AI-Void Detection and AI Repair Station, the TR7600 SIII Plus ensures enhanced defect detection.
• High Speed 3D SEMI AXI, optimized to meet the throughput demands of OSATs
• AI-Powered Inspection algorithms for precise defect detection
• Inspection Capabilities: C4 bumps (70 µm to 140 µm) and Cu Pillars
• Flexible Multi-Resolution Platform: 2 – 20 µm production
• Inline fine-tuning without interrupting
• Large Board Inspection, up to 800 mm x 350 mm, up to 12 kg in weight
• Smart Factory Ready with MES Connectivity
• Applications: Advanced Packaging, Automotive, Aerospace, Medical
Imaging System
|
Camera |
Ultra-High Speed Line-Scan CCD Cameras |
|
X-ray Source |
60 - 110 kV |
|
Imaging Resolution |
2 μm - 20 μm |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
|
X Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z Axis Control |
High-precision ballscrew + AC-servo controller |
Board Handling
|
Max. PCB Size |
2 μm - 3 μm: 245 x 100 mm
7 μm - 20 μm: 800 x 350 mm |
|
PCB Thickness |
0.6 - 7 mm (Optional: 0.4 mm, Max. PCB Weight: 3 kg) |
|
Max. PCB Weight |
12 kg |
|
Top Clearance |
@ 20 μm: 50 mm
@ 15 μm: 45 mm
@ 10 μm: 29 mm
@ 7 μm: 19 mm
@ 3 μm: 5 mm
@ 2 μm: 3 mm
Note: Calibration is required for non-standard resolutions. |
|
Bottom Clearance |
70 mm |
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor |
880 – 920 mm. (Optional: 940 - 965 mm)
* SMEMA Compatible |
Inspection Functions
|
Capabilities |
BGAs
Backdrill
Barrel fill
Capacitors
Resistor
Chips
Components Under RF shields
WLCSP
DIMM Connectors
Flip-Chips
Ground Pads
Gullwing
Heat sinks
J-Leads
LED Chips
LGAs
Paladin Connector
RNET
SiP
SMT Connectors
SOIC
SOT
Thermal Pad
QFNs
QFP
THTs |
|
Defects |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Foreign Material
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-Wetting
Void
Lifted Lead |
Dimensions
|
WxDxH |
1470 x 1971 x 1975 mm
Note: not including signal tower, height: 519 mm |
|
Weight |
3870 kg |
|
Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
