TR7600LL SIII

INTRODUCTION

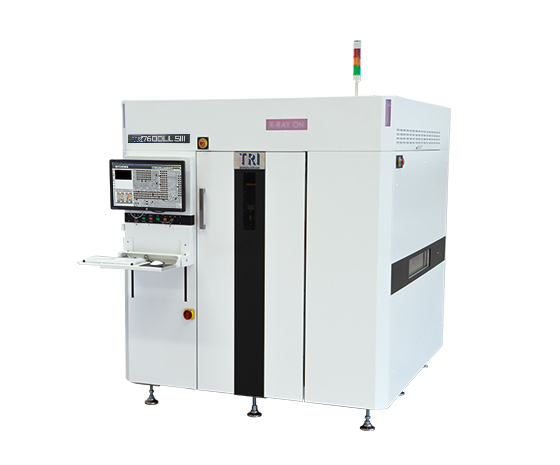

Das CT-Röntgensystem der Serie TR7600LL SIII stellt eine neue Generation von TRI's Baugruppen-Inspektionslösungen dar. TR7600LL SIII wurde für 100%ige Inspektion von sehr großen Leiterplatten konzipiert und bietet die schnellste hochauflösende Bilderfassung und großartige Bildqualität im modernsten Röntgen-Inspektionssystem im Industriesektor.

• 3D CT Röntgeninspektion bei Ultra-Hochgeschwindigkeit

• Hervorragende Bildqualität

• Echte 3D-Ansicht der Lötverbindung

• Inspektion besonders großer Leiterplatten

• Hohe Auflösung für 01005in Chips

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range

Inspection Performance

Imaging Speed

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor

Inspection Functions

Component
Solder

Dimensions

WxDxH
Weight

Imaging System

Camera	Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units)
X-ray Source	130 kV max (user adjustable)
Imaging Resolution	7 μm,10 μm,15 μm, 20 μm (user selectable)
Inspection Method	2D, 2.5D, 3D Slicing, Planar CT (Optional)

Motion Table & Control

X-Axis Control	High-precision ballscrew + AC-servo controller
Y-Axis Control	High-precision ballscrew + AC-servo controller
Z-Axis Control	High-precision ballscrew + AC-servo controller
X-Y Axis Resolution	N/A

Board Handling

Max PCB Size	Standard: 510 x 660 mm 2 Stages: 1000 x 660 mm
PCB Thickness	0.6 - 7 mm
Max PCB Weight	12 kg
Top Clearance	@ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm @ 7 μm: 7 mm
Bottom Clearance	70 mm
Edge Clearance	3 mm or 5 mm
Conveyor Height	880 - 920 mm (34.6 - 36.2 in.)

Inspection Functions

Capabilities	Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity, Rotation, Floating
Defects	Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting, Void, Lifted Lead

Dimensions

WxDxH	1750 x 2140 x 1945 mm
Weight	4500 kg
Power Requirement	200 - 240 VAC three phase, 50/60 Hz, 7 kVA (346-416 VAC optional three phase transformer)
